DEUBLIN 1115-000-001 ROTARY UNION

ROTARY UNION

DEUBLIN 1115-000-001 rotary union for vacuum, hydraulic oil, and air applications with 3/8³-18 NPT housing and 5/8³-18 UNF RH rotor connection, pressure up to 34.5 bar.

SKU: 1019120 Category: Tags: , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

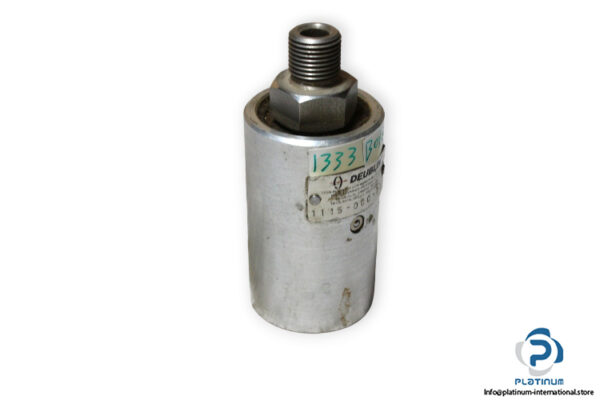

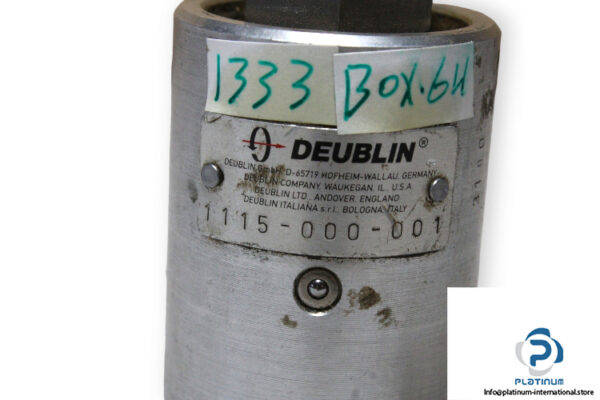

DEUBLIN 1115-000-001 Rotary Union

The DEUBLIN 1115-000-001 rotary union is a high-quality component engineered for transferring media such as vacuum, hydraulic oil, and air between stationary and rotating parts. It offers durable performance, reliable sealing, and compatibility with various pressure conditions in industrial systems.

Manufacturer: DEUBLIN
Type: Rotary Union
Model: 1115-000-001

Technical information

  • Media: Vacuum, Hydraulic Oil, Air
  • Housing Connection: 3/8³-18 NPT
  • Rotor Connection: 5/8³-18 UNF RH
  • Air Max. Pressure: 10 bar
  • Air Max. Flow: 2549 l/min
  • Hydraulic Oil Max. Flow: 12.5 l/min
  • Hydraulic Oil Max. Pressure: 34.5 bar
  • Vacuum Max. Pressure: -0.95 bar
Weight0,36 kg
