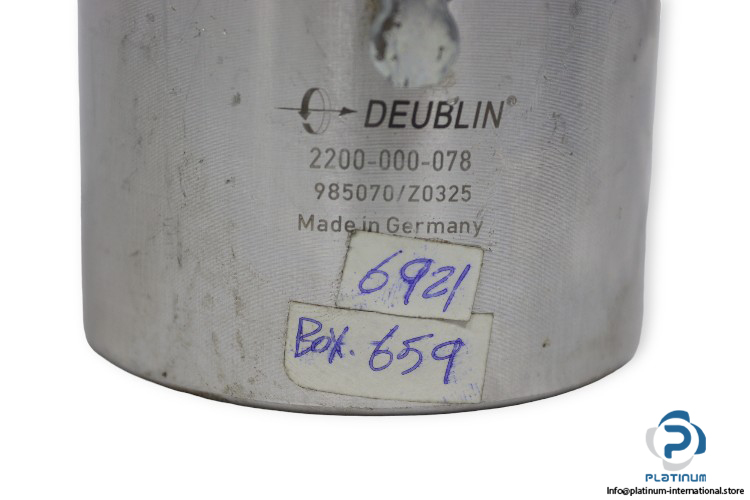

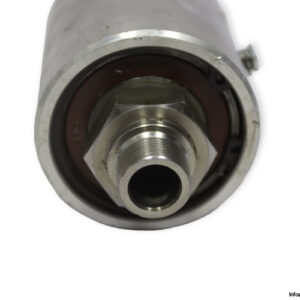

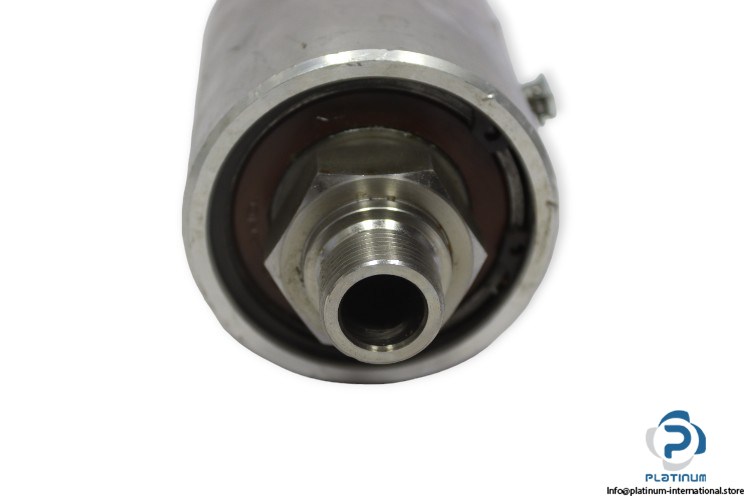

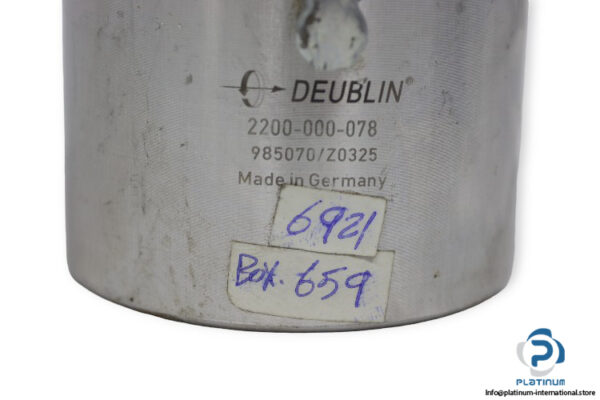

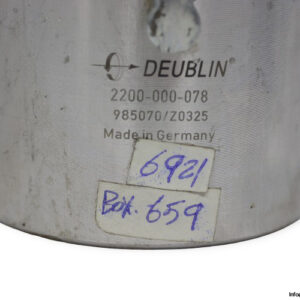

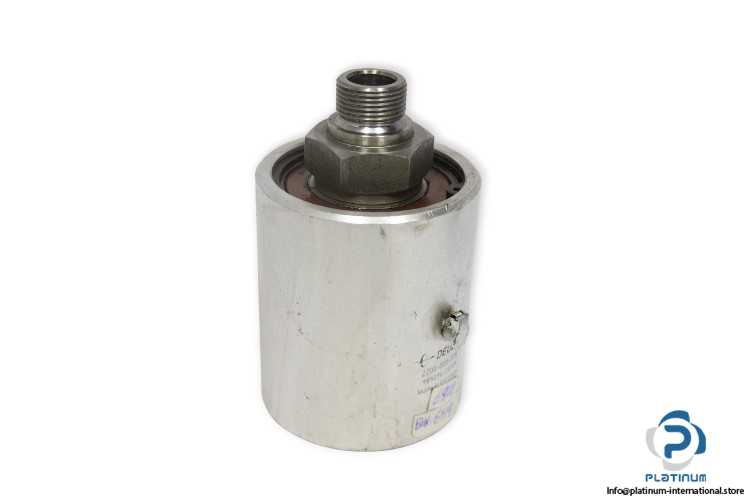

DEUBLIN 2200-000-078 Rotary Union
The DEUBLIN 2200-000-078 rotary union is a high-performance component designed for transferring vacuum, hydraulic oil, or air between stationary and rotating parts of industrial machinery. Built with durable materials and precision engineering, it ensures reliable sealing, long service life, and efficient media handling under demanding operating conditions.
Manufacturer: DEUBLIN
Type: Rotary Union
Model: 2200-000-078
Part No.: 985070/Z0325
Technical information
- Media: Vacuum, Hydraulic Oil, Air
- Rotor Connection: 1/2³-14 NPT RH
- Housing Connection: 1/2³-14 NPT
- Air Max. Flow: 4247 l/min
- Air Max. Pressure: 10 bar
- Hydraulic Oil Max. Pressure: 69 bar
- Hydraulic Oil Max. Temperature: 121 °C
- Hydraulic Oil Max. Flow: 26.9 l/min
- Vacuum Max. Pressure: -0.95 bar
