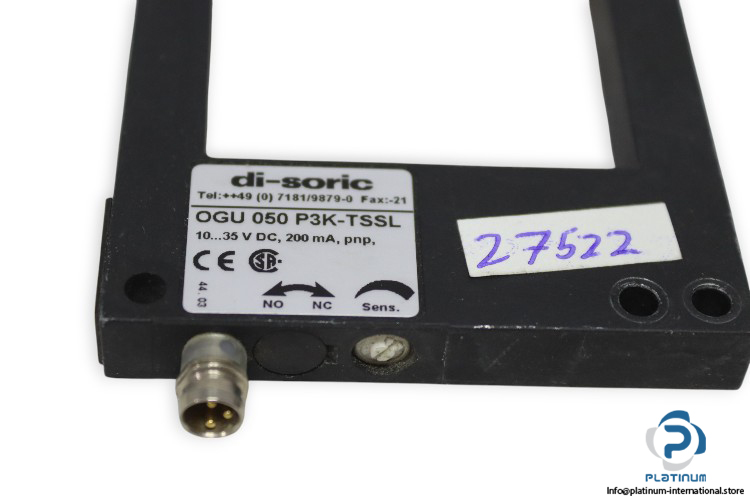

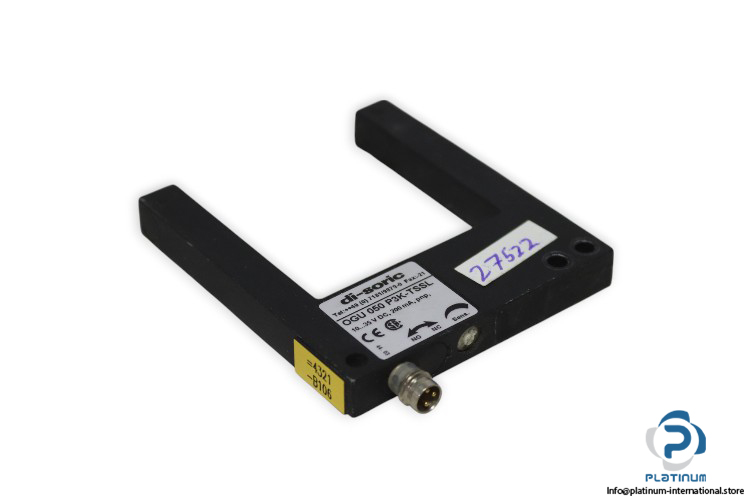

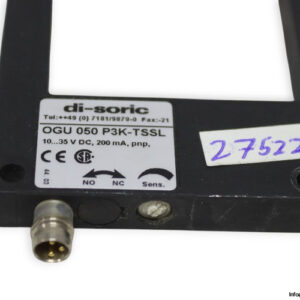

High-Precision Fork Light Barrier “ DI-SORIC OGU 050 P3K-TSSL
- Manufacturer: DI-SORIC
- Type: Fork Light Barrier
- Model: OGU 050 P3K-TSSL
- Fork Opening: 50 mm
- Service Voltage: 10 … 35 V DC
- Transmitter / Receiver: Integrated transmitter and receiver
- Output: PNP, 200 mA, NO/NC, switchable
- Sensitivity Adjustment: Potentiometer
- Internal Power Consumption: 30 mA
- Ambient Temperature Range: -10 / 60 °C
- Insulation Voltage Endurance: 500 V
- Protection Class: IP67 “ suitable for harsh environments
- Casing Material: Die-cast zinc with black lacquered finish
- Connection: M8 connector, 3-poled
- Dimensions: 70 x 80 x 10 mm
This compact and durable fork light barrier ensures accurate object detection and positioning in industrial automation systems. With a 50 mm opening, IP67 rating, and flexible output configuration, it is ideal for reliable sensing in demanding environments.
