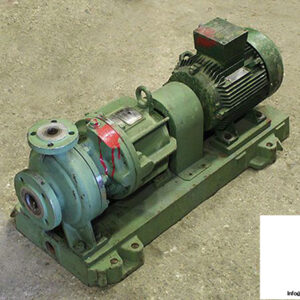

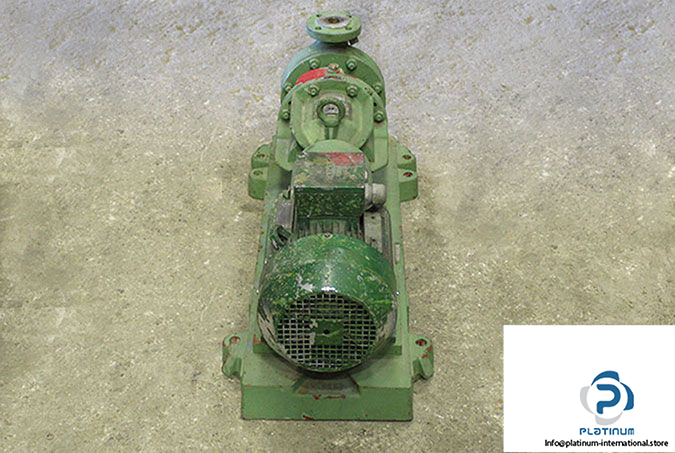

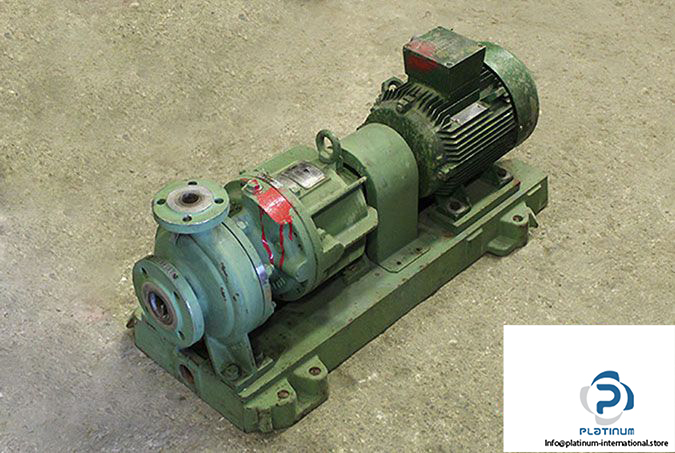

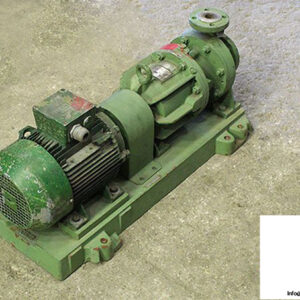

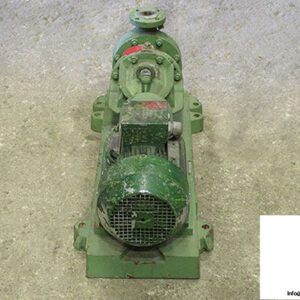

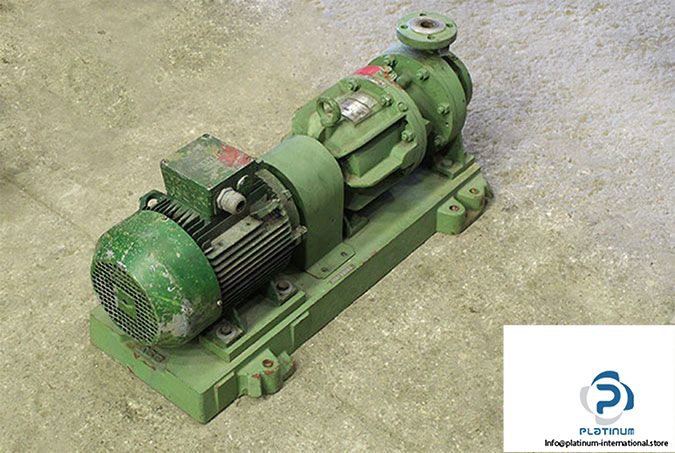

DICKOW NML 25/170 MAGNETIC DRIVEN PROCESS PUMP WITH SIEMENS MOTOR
The Dickow NML 25/170 is a high-performance magnetic driven process pump engineered for durability and chemical resistance in demanding industrial applications. With a precision-engineered Siemens electric motor, it offers consistent performance under variable conditions. Ideal for operations requiring reliable flow and minimized leakage.

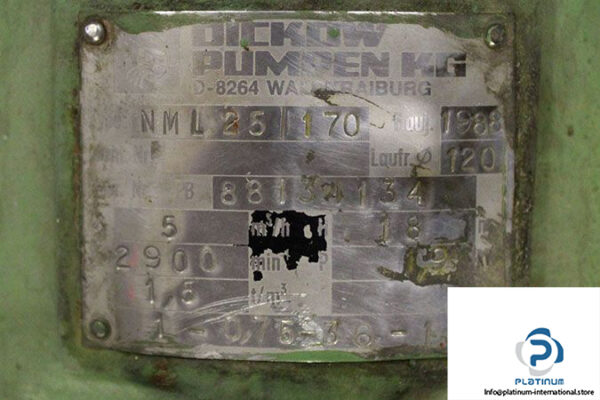

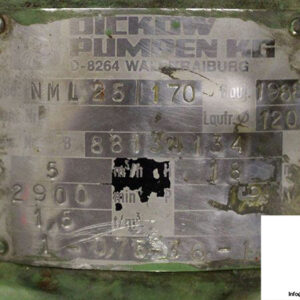

Manufacturer: Dickow Pumpen KG
Type: Magnetic Driven Process Pump
Model: NML 25/170
Part No.: 88134134
Ref No.: 1-0,75-3,6-1

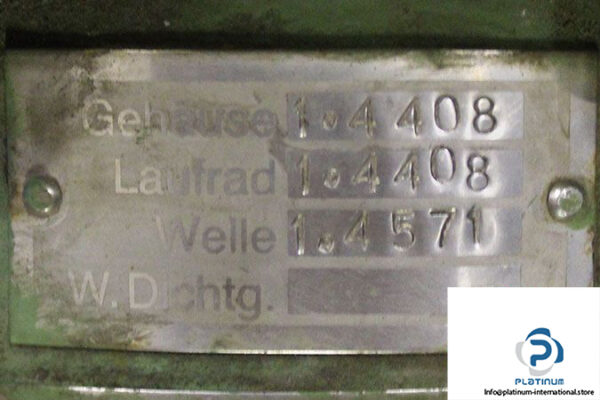

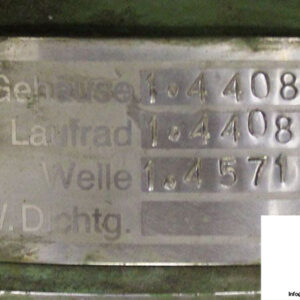

Housing No.: 1.4408
Shaft No.: 1.4571
Technical Information
- Flow Rate: 5 m³/h
- Rated Power: 1.9 kW
- Head Loss: 18 m
- Rated Speed: 2900 min»¹
- Density: 1.5 t/m³
- Impeller Diameter: 120 mm

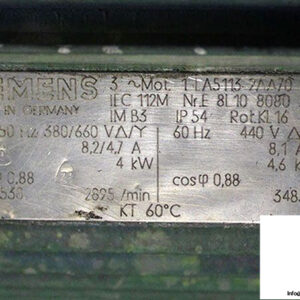

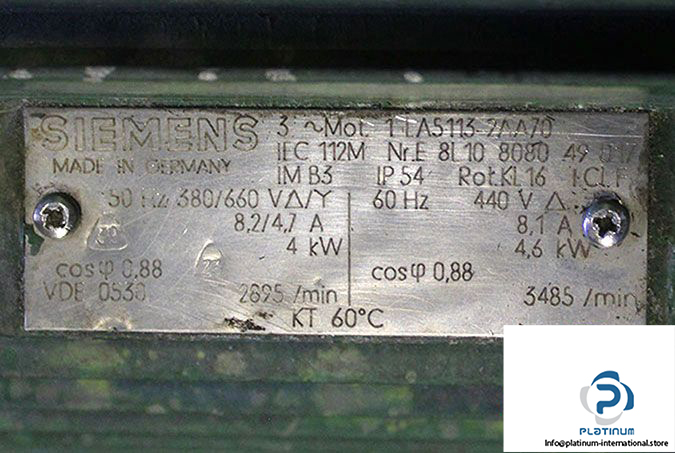

Electric Motor Specifications (SIEMENS)
Manufacturer: Siemens
Type: 1LA5113-2AA70
Model: 3 Phase Electric Motor
Part No.: 8L10 8080 49 017
At 50 Hz
- Star Connection: 660 V / 4.7 A
- Delta Connection: 380 V / 8.2 A
- Rated Power: 4 kW
- Rated Speed: 2895 min»¹
- Power Factor: 0.88
At 60 Hz
- Delta Connection: 440 V / 8.1 A
- Rated Power: 4.6 kW
- Rated Speed: 3485 min»¹
- Power Factor: 0.88
Mounting Position: B3
Protection Class: IP54
Thermal Class: F
