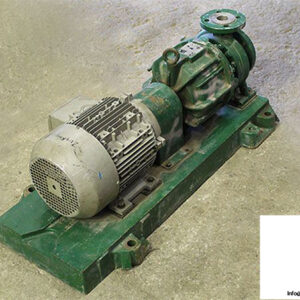

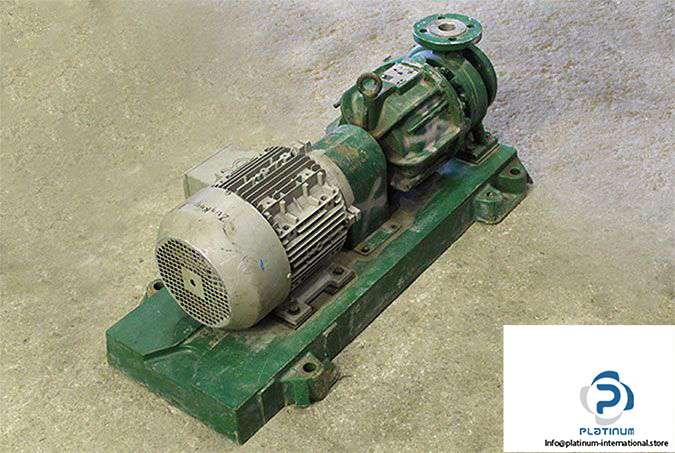

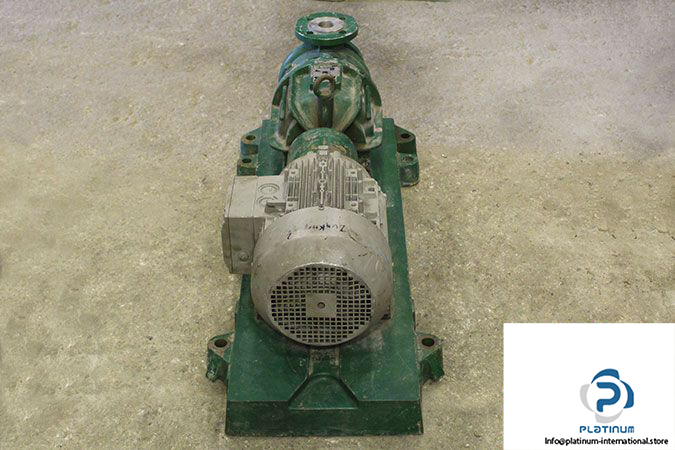

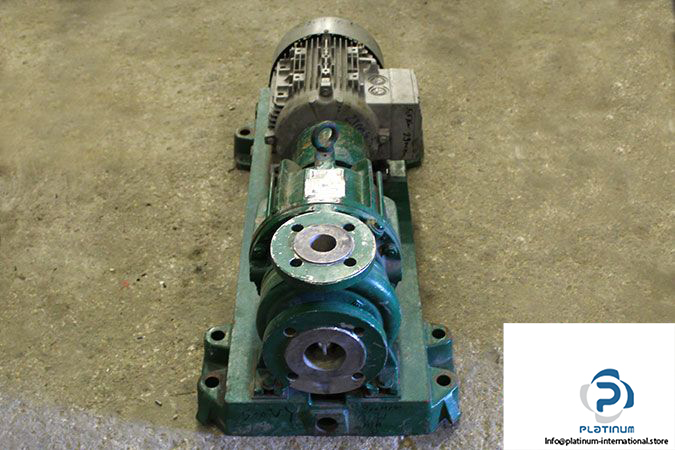

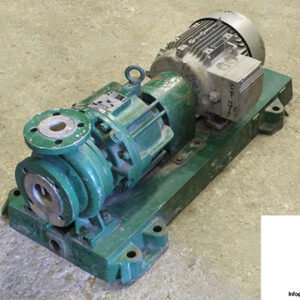

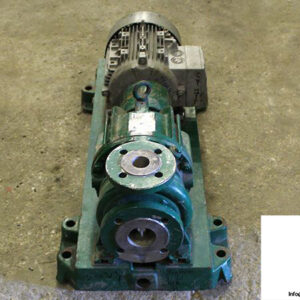

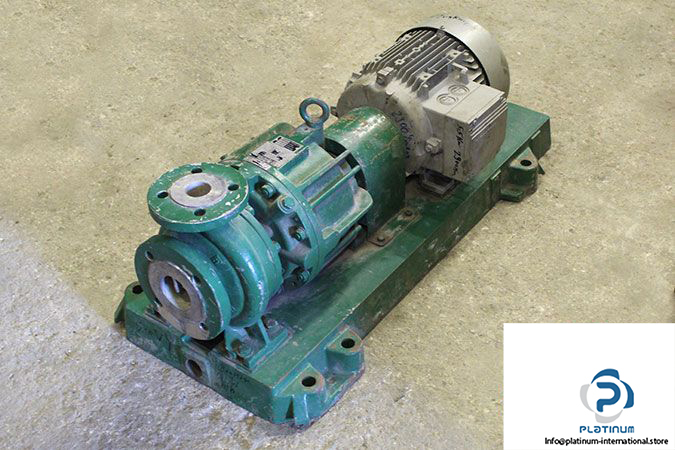

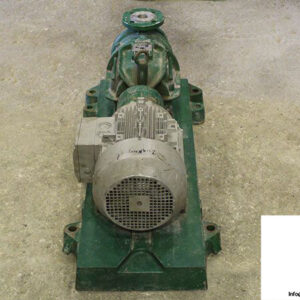

DICKOW NMLh 40/165 MAGNETIC DRIVEN PROCESS PUMP WITH SIEMENS MOTOR

Engineered for superior chemical resistance and leak-free operation, the Dickow NMLh 40/165 magnetic driven process pump is ideal for handling hazardous or aggressive fluids in demanding industrial environments. Equipped with a Siemens 3-phase electric motor, it offers excellent efficiency and power transmission.

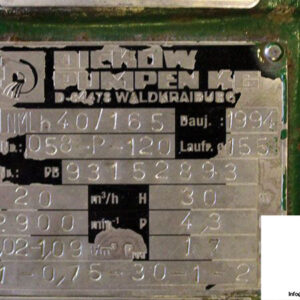

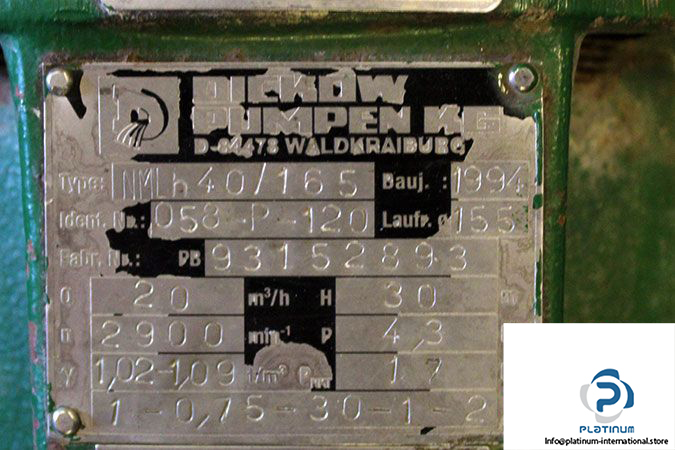

Manufacturer: Dickow Pumpen KG
Type: Magnetic Driven Process Pump
Model: NMLh 40/165
ID No.: 058.P-120
Ref No.: 93152893 / 1-0.75-30-1-2

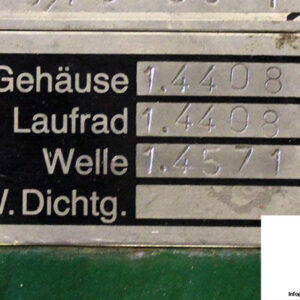

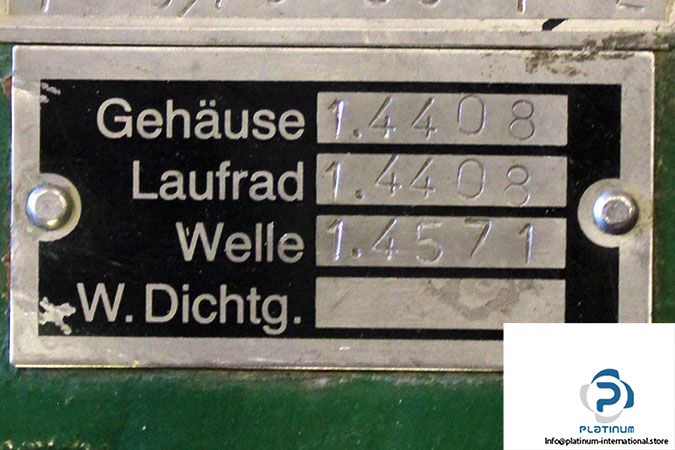

Housing No.: 1.4408
Shaft No.: 1.4571

Technical Information “ Pump

• Flow Rates: 20 m³/h
• Rated Power: 4.3 kW
• Head Loss: 30 m
• Rated Speed: 2900 min»¹
• Density: 1.02“1.09 kg/m³
• Impeller Diameter: 155 mm
• Max Coupling Power (PNKT): 1.7 kW

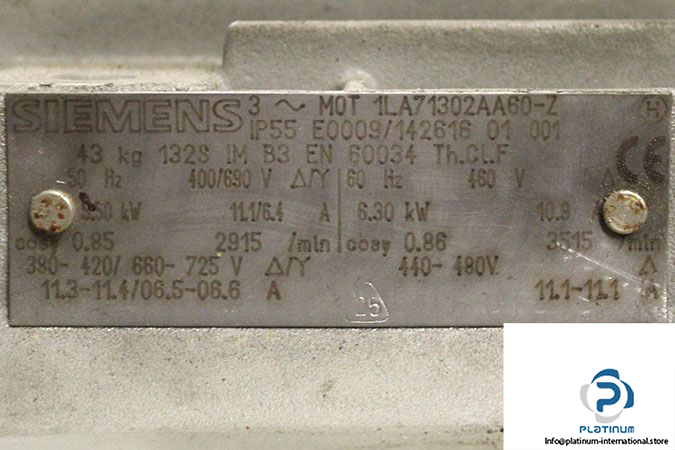

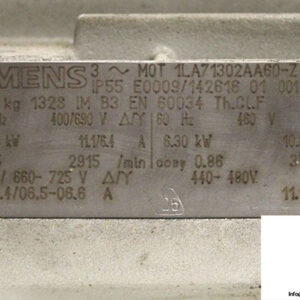

Attachment “ Siemens 3 Phase Electric Motor

• Manufacturer: Siemens
• Type: 1LA71302AA60-Z
• Model: 3 Phase Electric Motor
• Part No.: IP55 E0009/142616 01 001
• Mounting Position: B3
• Protection Class: IP55
• Standard: EN 60034
• Thermal Class: F

At 50 Hz (Star Connection)

• Rated Voltage: 690 V
• Rated Current: 6.4 A

At 50 Hz (Delta Connection)

• Rated Voltage: 400 V
• Rated Current: 11.1 A
• Rated Power: 9.5 kW
• Rated Speed: 2915 min»¹
• Power Factor: 0.85

At 60 Hz (Delta Connection)

• Rated Voltage: 460 V
• Rated Current: 10.9 A
• Rated Power: 6.3 kW
• Rated Speed: 3515 min»¹
• Power Factor: 0.86
