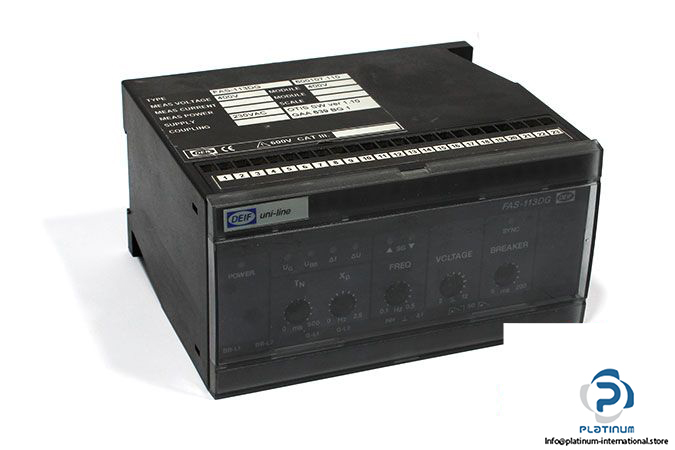

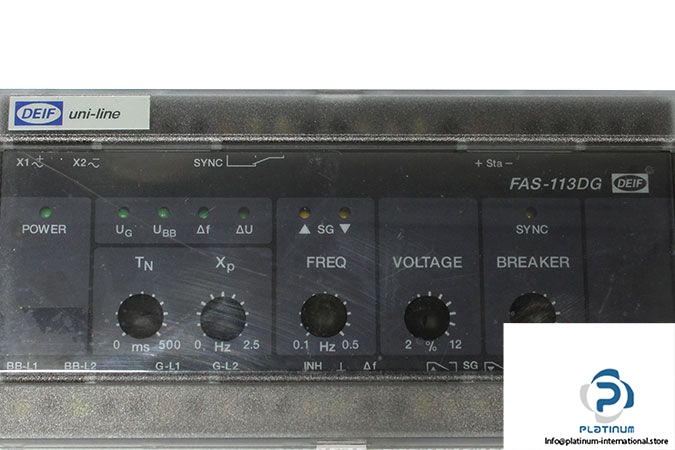

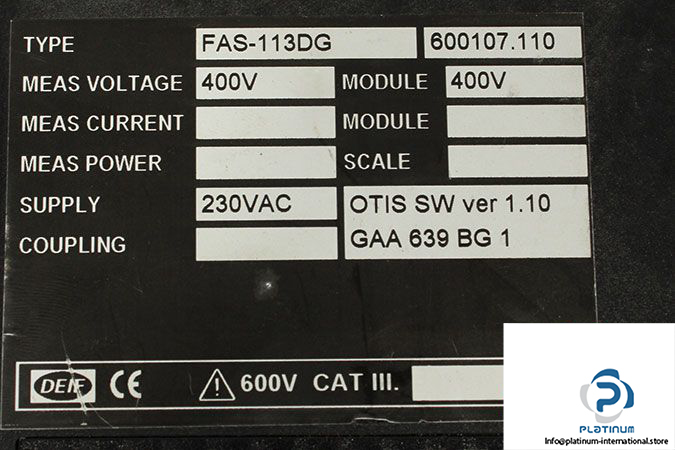

Manufacturer: DEIF
Type: Synchroniser
Series: Uni-line
Model: FAS-113DG
Part No.: 600107.110

Function: Synchronizers are applied for synchronization of a generator
to the busbar and closing of its circuit breaker when the voltage
difference, the slip frequency and the phase angles are within the
preset limits
Meas Voltage: 400 VAC
Supply Voltage: 230 VAC
Frequency Range: 40 to 45 to 65 to 70 Hz
Module: 400 V
Contact outputs:
1 change-over switch
2 make contacts
Analog Output:
1 analogue output: 0 to 5 to 10 V DC ~ 80 to 100 to 120 % of Un
1 analogue output:  -10 to 0 to 10 V DC ~ -5 to 0 to 5 Hz
Temperature Range: -25 … 70°C
