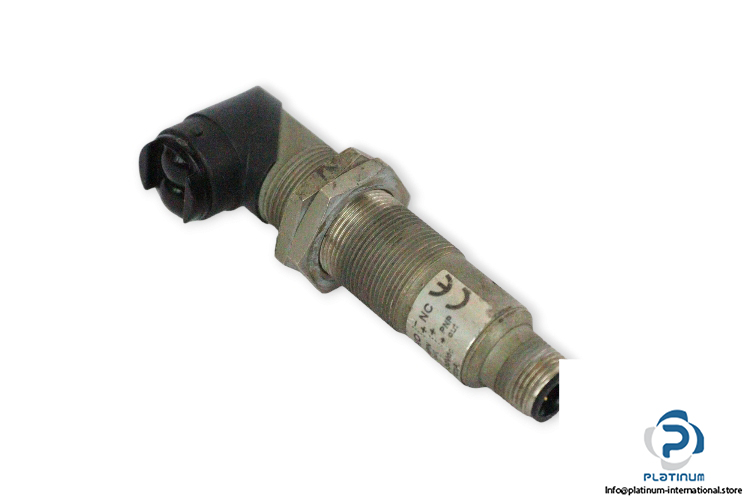

DIELL Retro-Reflective Sensor MPC/00-1H

The DIELL MPC001H Retro-Reflective Sensor offers reliable performance in industrial automation systems, with a sensing range of up to 4.5 m. Its robust design and selectable output options make it ideal for a variety of applications that require precise sensing and durability.

Manufacturer: DIELL

Type: Retro-Reflective Sensor

Model: MPC/00-1H

Technical Specifications

• Sensing Range: 4.5 m
• Optic Position: Radial 90°
• Operating Voltage: 10 / 30 V DC
• Electrical Design: PNP / NPN (Selectable)
• Switching Output: Normally Open (NO) / Normally Closed (NC) (Selectable)
• Output Current: 100 mA
• Electrical Connection: M12 Connector 4-Pin
• Housing Material: Nickel Plated Brass / PC Plug
• Protection Class: IP67
• Operating Temperature: -25 / 70 °C
• Length, Diameter: 88.8 mm, 18 mm
