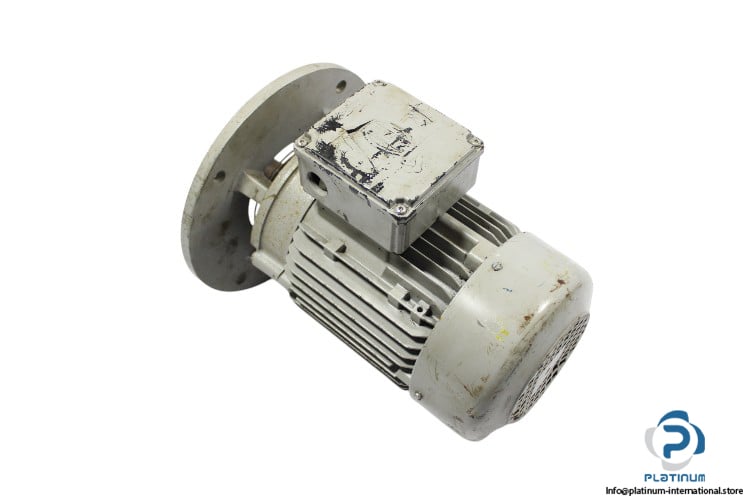

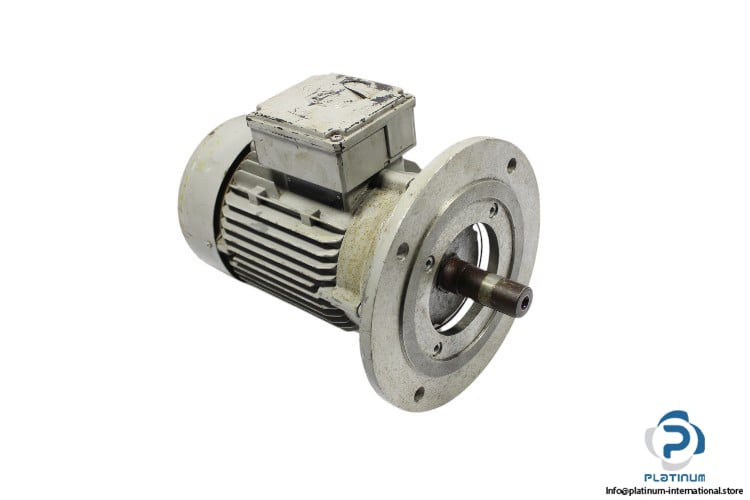

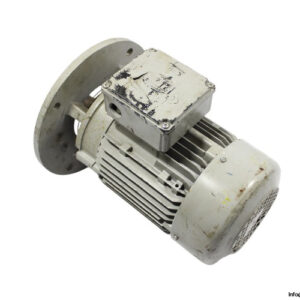

DIETZ 3-PHASE ELECTRIC MOTOR

The DIETZ 3-Phase Electric Motor (Model: FDR 90LC/ 8-4 P, Part No: 689888 184969/10 B5/250) is designed for reliable operation in industrial and commercial applications. With rated power options of 0.37 kW and 1.8 kW, this motor operates efficiently at speeds of 720/1430 rpm with a rated voltage of 400V star. It is perfect for continuous use under various load conditions, offering a robust solution for your industrial power needs.

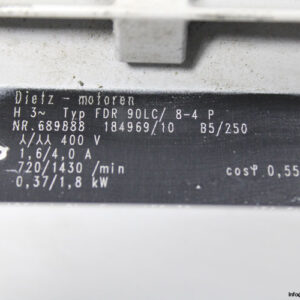

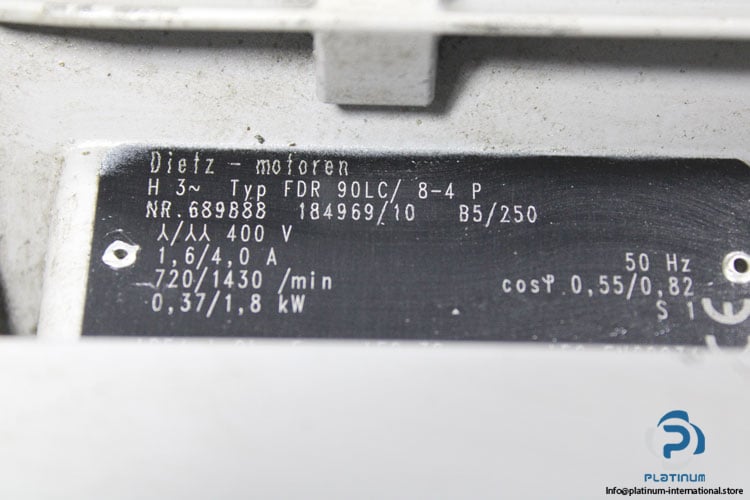

Manufacturer: DIETZ

Type: 3-Phase Electric Motor

Model: FDR 90LC/ 8-4 P

Part No: 689888 184969/10 B5/250

Technical Specifications

• Rated Voltage: 400 V star
• Rated Speed: 720 / 1430 rpm
• Rated Power: 0.37 / 1.8 kW
• Rated Frequency: 50 Hz
• Rated Current: 1.6 / 4 A
• Power Factor: 0.55 / 0.82
• Duty: S1 (Continuous Duty)
