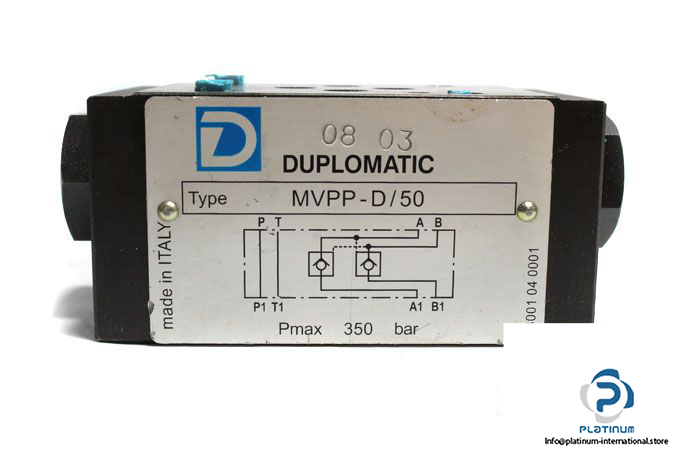

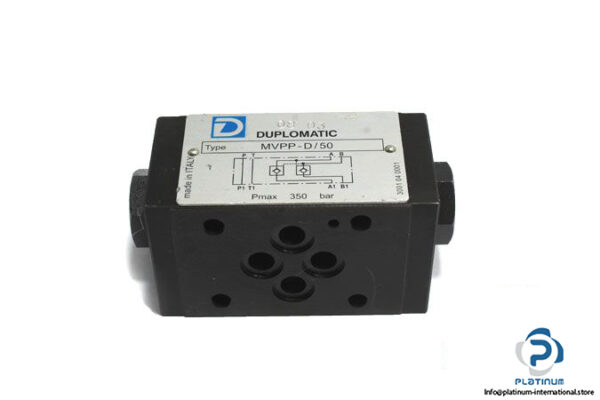

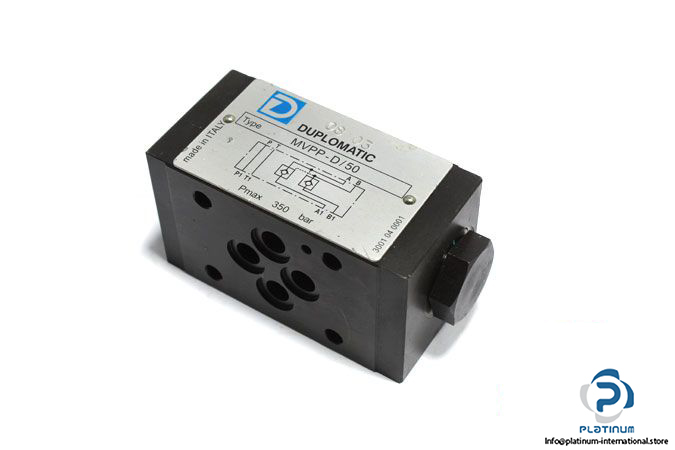

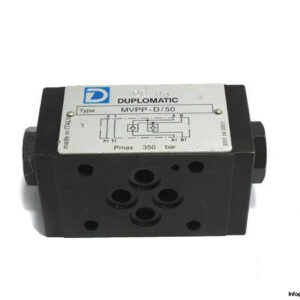

Manufacturer: DUPLOMATIC
Type: Pilot Operated Check Valve
Model: MVPP-D/50
Nominal Size: 03
Max. Working Pressure: 350 bar
Max. Flow Rate in the Controlled Lines: 50 L/min
Max. Flow Rate in the Free Lines: 75 L/min
Hydraulic Connection: Sub-Plate
Configuration: Seal on lines A and B of the actuator
Fluid Temperature Range: -20 ….. +80 °C
