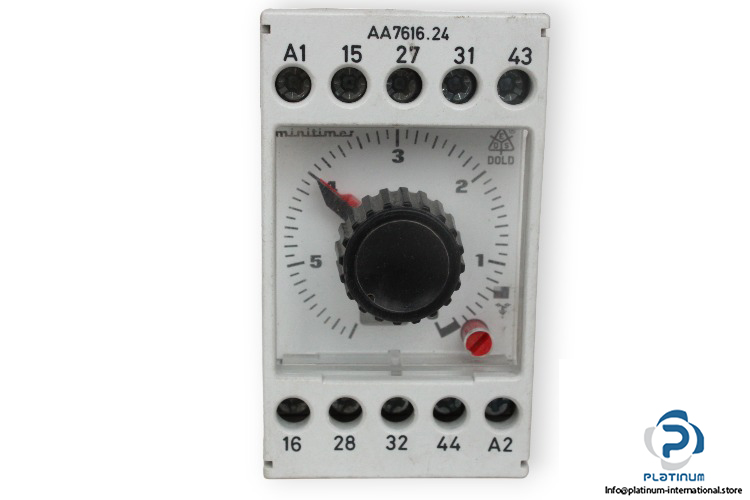

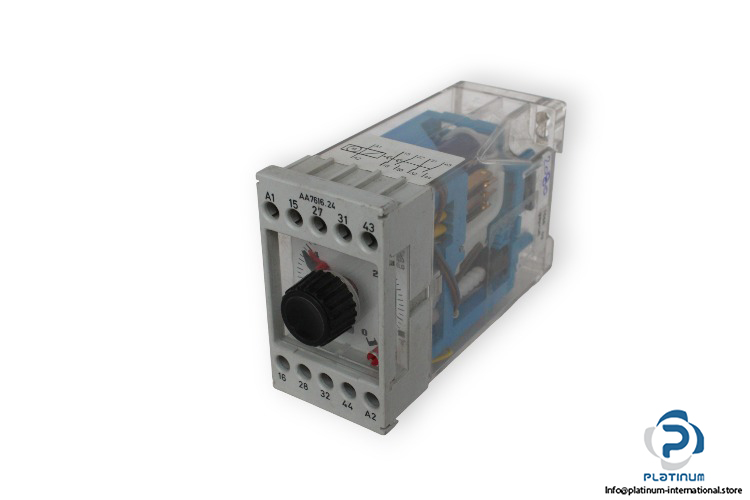

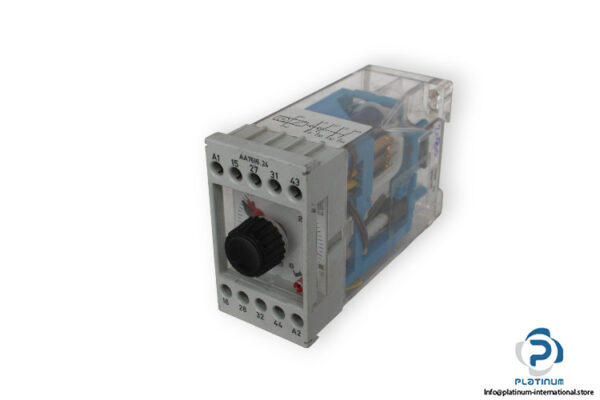

Dold AA7616.24 Minitimer

The Dold AA7616.24 Minitimer is a reliable and precise timing relay designed for automation and control systems. With a wide timing range, durable thermoplastic housing, and dual contact configuration, it ensures flexible and long-lasting performance in industrial applications.

Manufacturer: Dold
Type: Minitimer
Model: AA7616.24
Art No.: 0000680

Technical information

• Supply Voltage: 220 V AC
• Frequency: 50 / 60 Hz
• Time Range: 0.2 s / 60 h

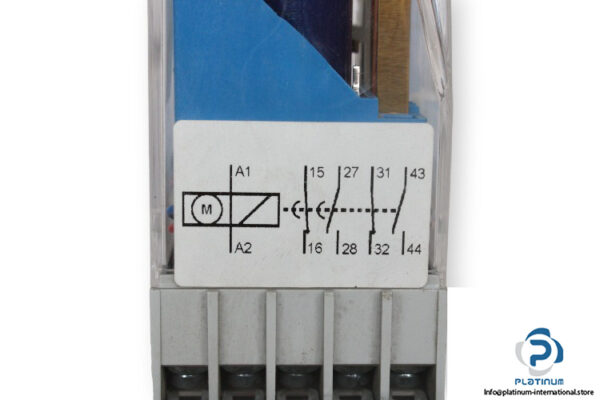

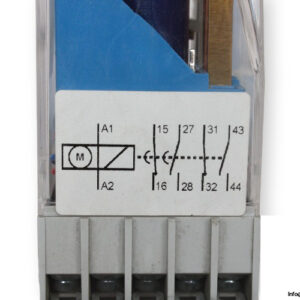

• Contact Configuration: 2 Normally Open, 2 Normally Close
• Contact Voltage: 230 / 400 V AC
• Contact Current: 2 / 3 A
• Thermal Current: 4 A
• Contact Material: AgNi
• Housing: Thermoplast with V0-behaviour
• Width: 45 mm
• Torque: 0.8 Nm
• Operating Temperature: -20 / 55 °C
• Degree of Protection: Housing IP40, Terminal IP20
• Dimensions: 45 × 77 × 127 mm
