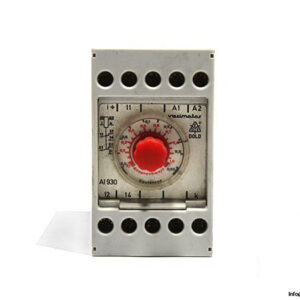

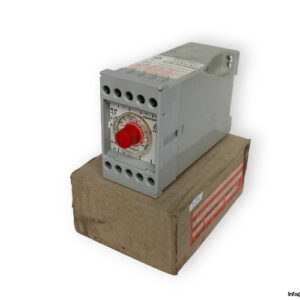

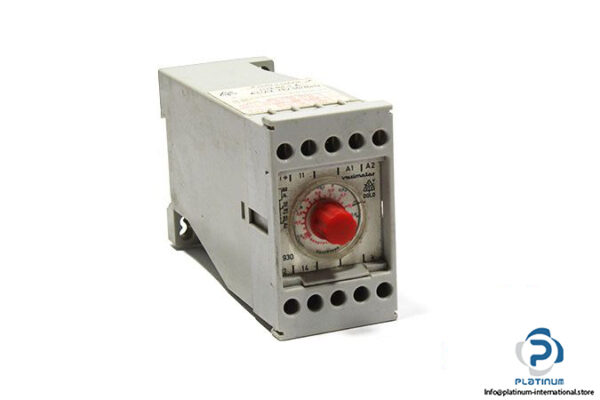

DOLD AI930 Time Relay

The DOLD AI930 is a precise and reliable time relay engineered for monitoring the power consumption of electrical consumers. With robust protection, compact dimensions, and dependable contact ratings, it is suitable for a wide range of industrial control applications.

Manufacturer: DOLD
Type: Time Relay
Model: AI930

Technical Information

• Application: For Monitoring the Power Consumption of Electrical Consumers
• Coil Voltage: 24 V AC
• Frequency: 50 / 60 Hz
• Measuring Range: 0.1 / 1 s

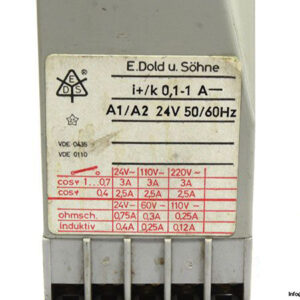

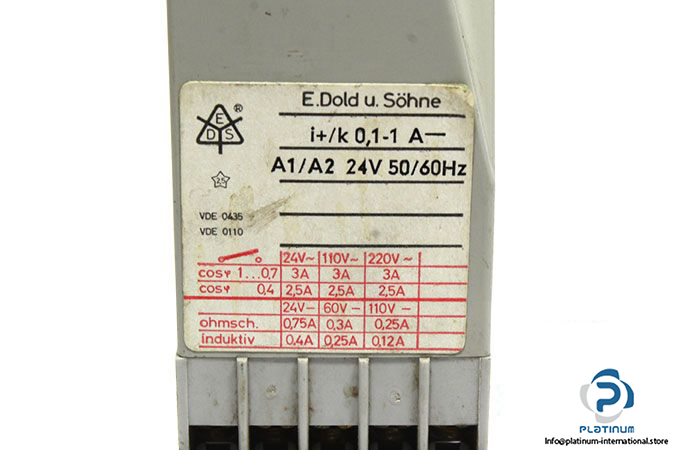

• Contact Rating @cos (1 / 0.7): 110 V AC, 3 A / 220 V AC, 3 A / 24 V AC, 3 A
• Protection Class Housing/Terminal: IP40 / IP20
• Temperature Range: -20 / +60 °C
• Dimensions: 45 x 77 x 127 mm
