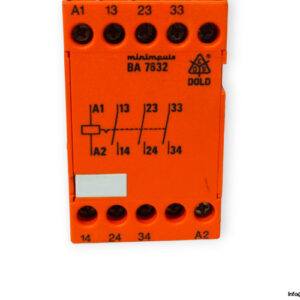

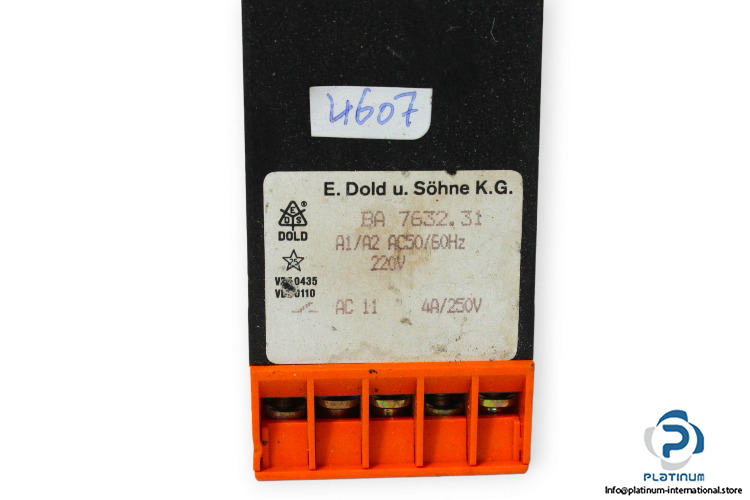

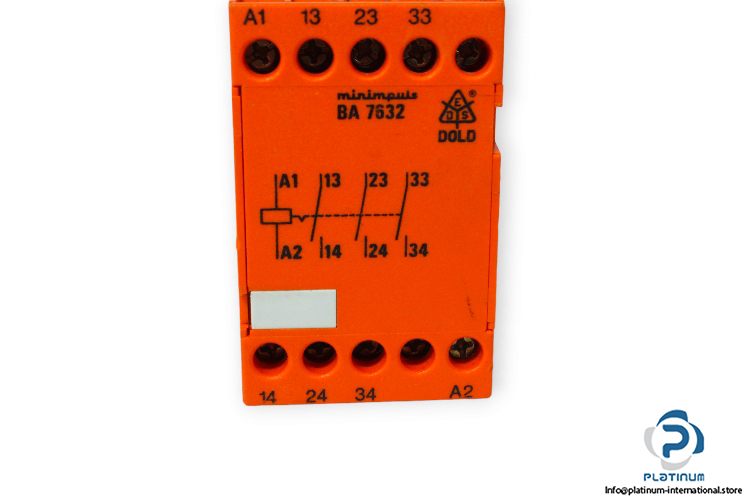

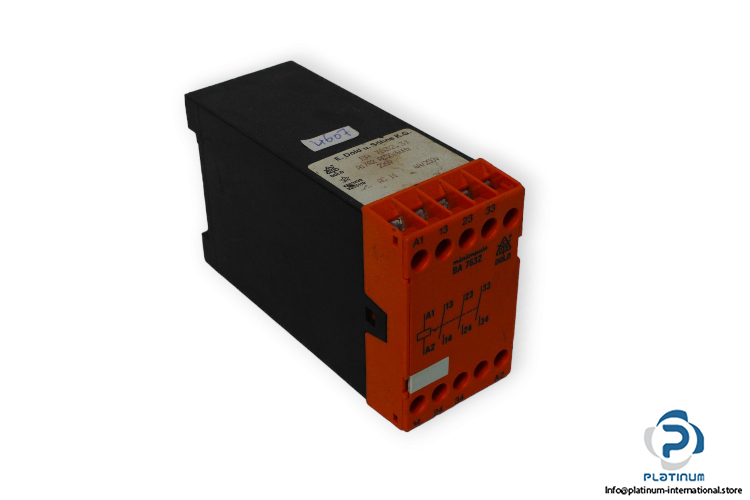

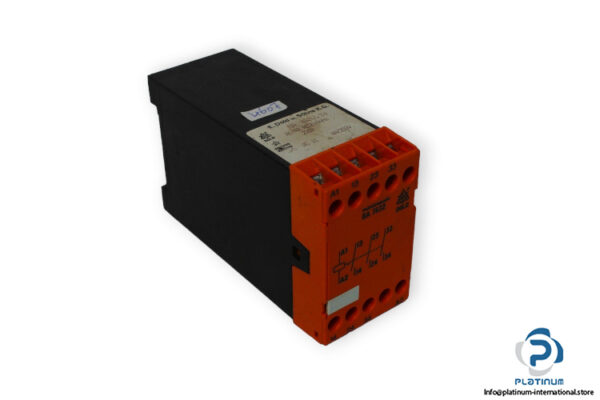

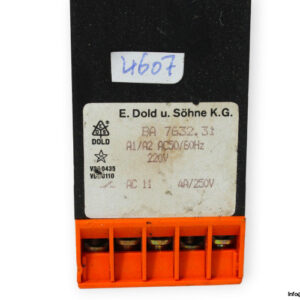

DOLD BA7632.31 STEPPING RELAY

The Dold BA7632.31 Stepping Relay is a reliable control component designed for cyclic operations in industrial automation systems. With high durability, compact construction, and DIN rail mounting, it offers robust switching performance in a wide temperature range.

Manufacturer: Dold
Type: Stepping Relay
Model: BA7632.31

Technical Information

• Applications: For cyclic control processes
• Nominal Voltage: 220 V AC
• Nominal Frequency: 50 / 60 Hz
• Contact Rating: 3 Normally open contacts
• Switching Capacity: AC-11: 250 V AC, 4 A
• Operating Temperature: -20 / +70¯°C
• Degree of Protection: Housing: IP 40, Terminals: IP 20
• Housing Material: Thermoplastic PC with V0-behaviour to UL subject 94
• Mounting: DIN rail
• Dimensions: 45 x 74 x 121 mm
