Manufacturer: DONALDSON

Type:  Compressed Air Filtration

Model: UFM-D30

MATERIAL: 2000021

Product Code: KA13A10A0

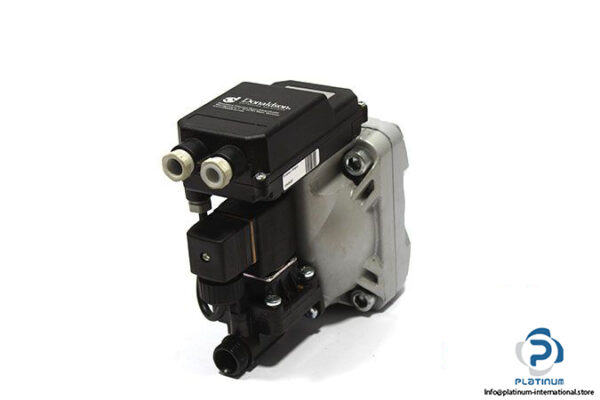

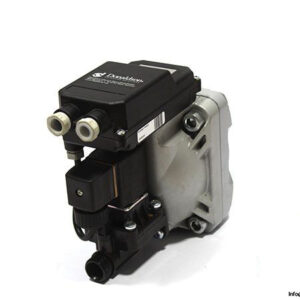

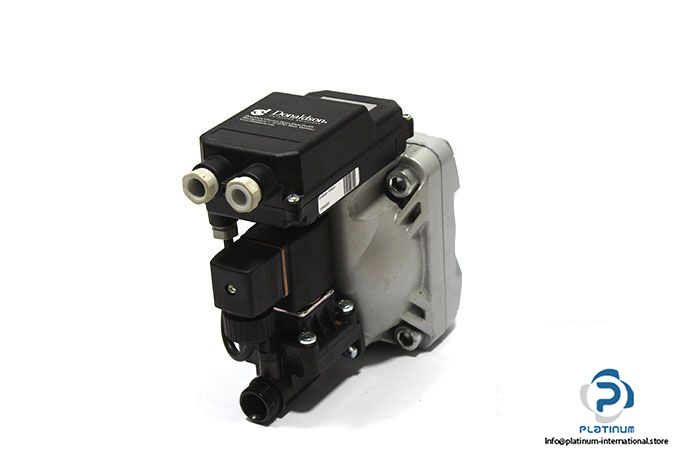

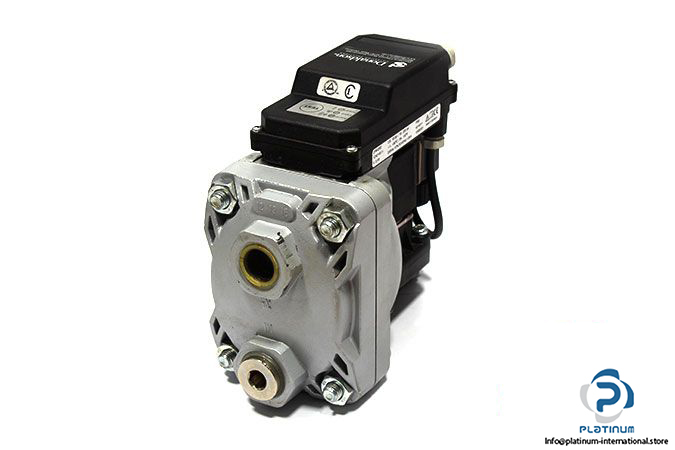

The UFM-D’s are compressed air zero-loss, electronically controlled BEKOMAT condensate drains. The large internal cross-sections for draining ensure reliable operation even when dealing with dirty, particle polluted condensate: Less downtime, less trouble and more safety for the application – especially in direct comparison with time- or float controlled drains

MAIN FEATURES & BENEFITS:

• Electronically, level-controlled condensate drain without pressure losses

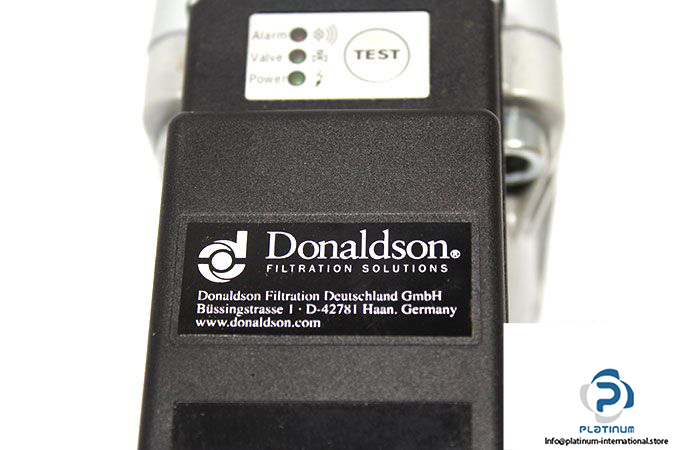

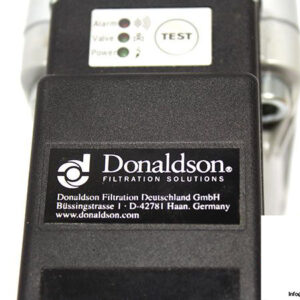

  ● Permanent function control via LED display, automatic emergency programs in the alarm mode

  ● Easy maintenance, small inclination to emulsifi cation, small noise during draining procedure, insensitive to dirt

  ● Aluminum corrosion-resistant, glass-fi ber reinforced plastics, steadily against oil-contaminated and oil-free condensate

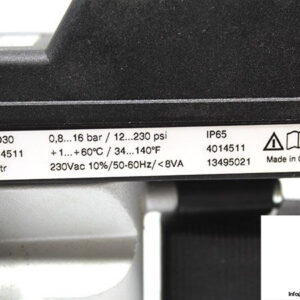

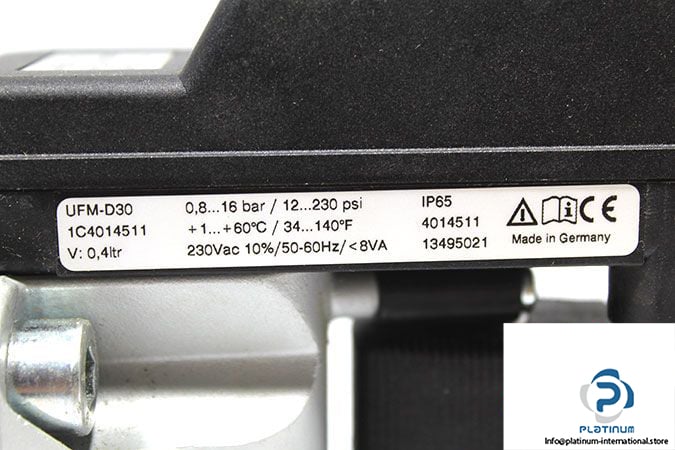

Operating pressure: 0.8 – 16 bar

Temperature: 1 … 65 °C

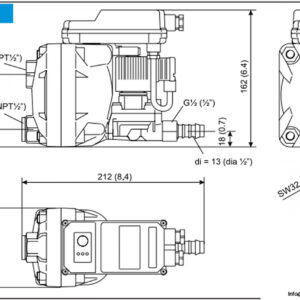

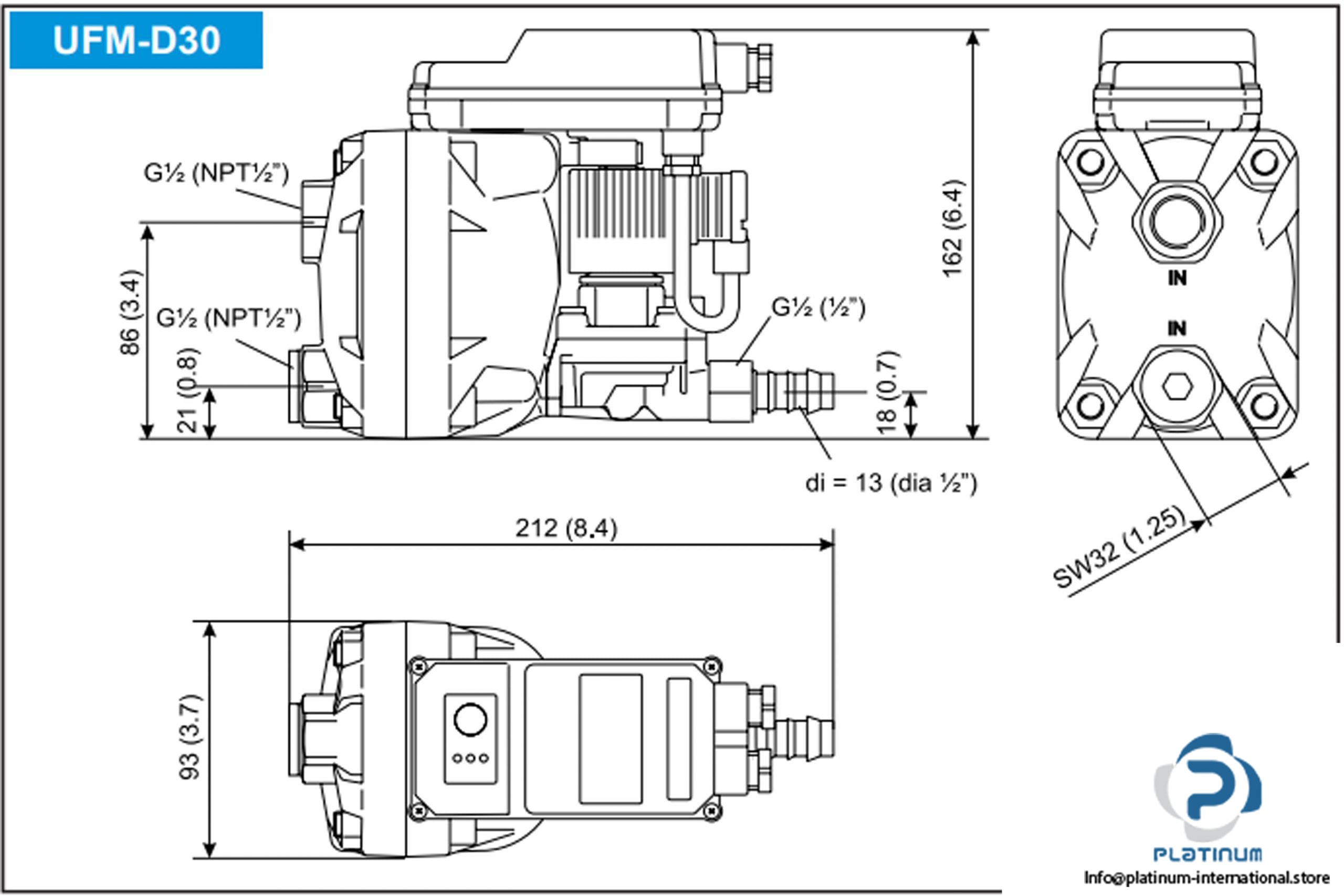

Condensate: G 1/2 (1/2”) inlet, G 1/2 Outlet

Power Supply: 230 V AC

Frequency: 50/60 Hz

Power Consumption: P < 8,0 VA (W)
Protection Class: IP 65

Weight: 2.25 kg
