Manufacturer: DONGHUA

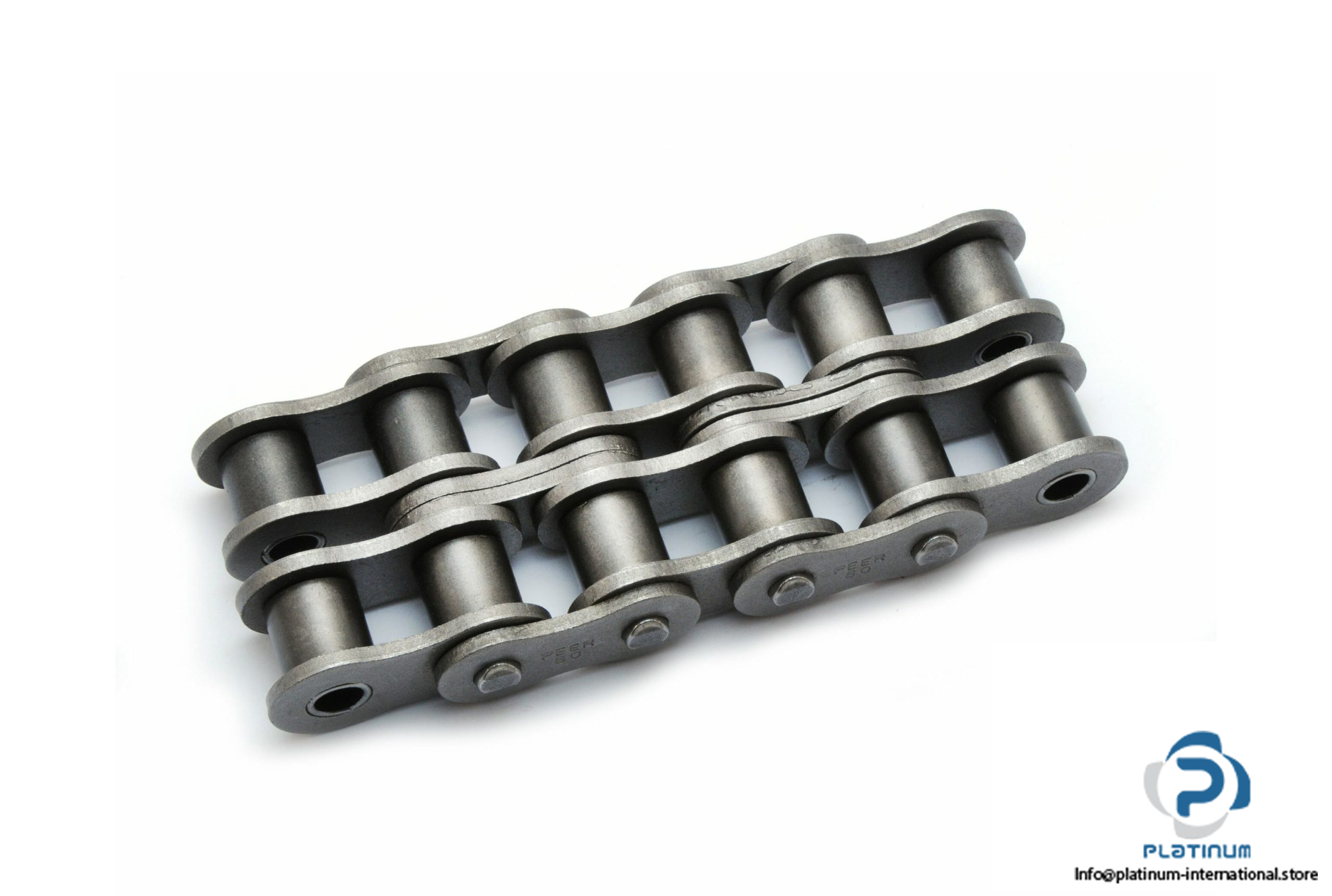

Type: Double-Strand Metric Roller Chain
Model: 12B-2

DIN/ISO 606
Chain no. 12B-2

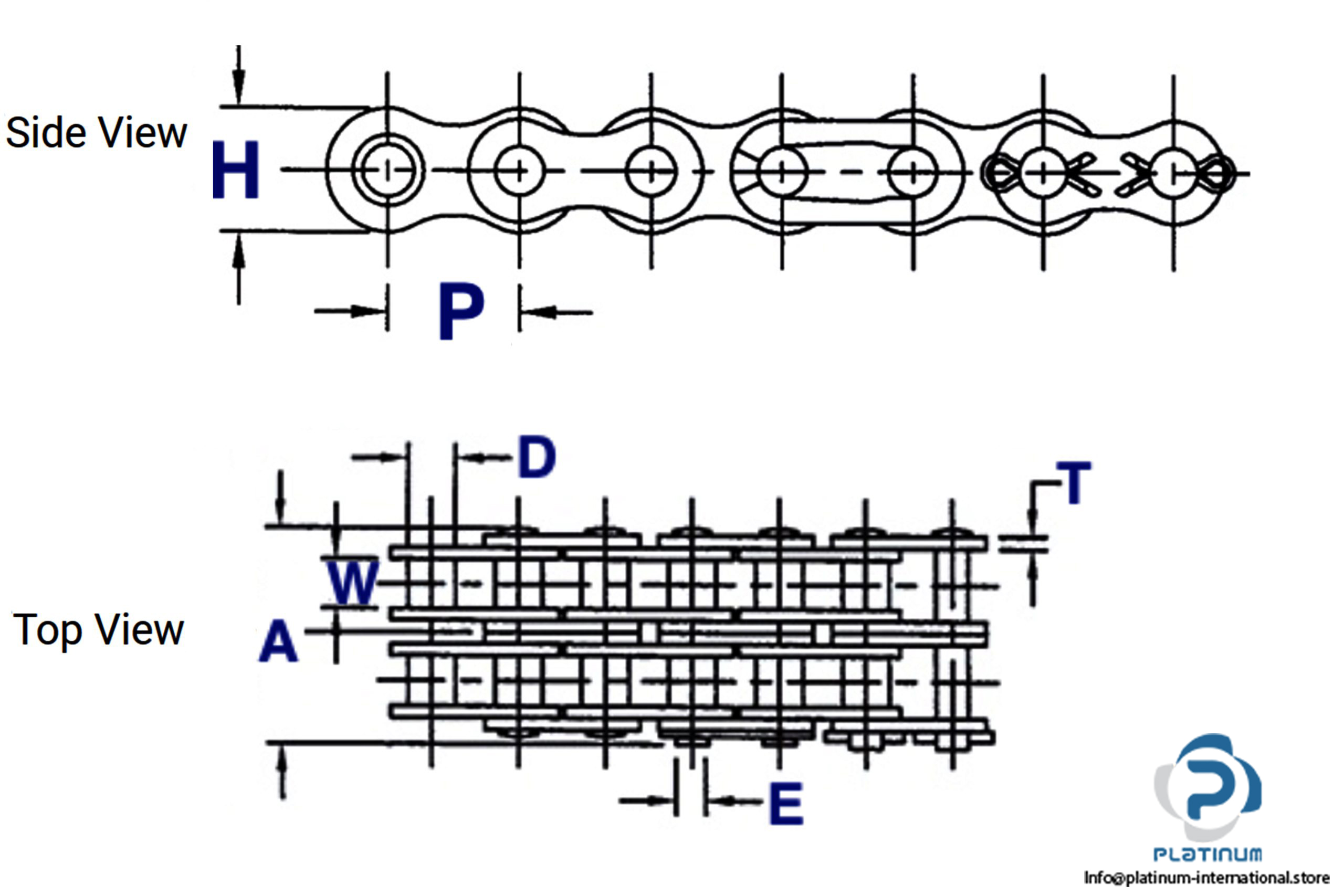

PitchP: 19.05mm
Roller diameter D1: 12.07mm
Roller Width (W): 11.68mm
Pin Diameter E: 5.72mm
Plate Height (H): 16.1mm
Transverse Pitch (T): 19.46mm
C/L Width (A): 43.6mm
Breaking Load: 66.1 kN
Weight (Per Ft): 2.5 kg/m
