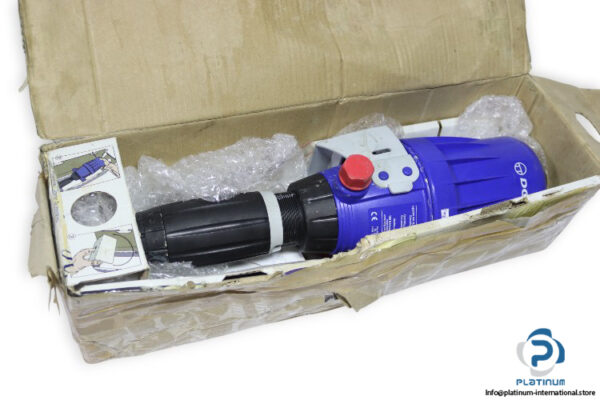

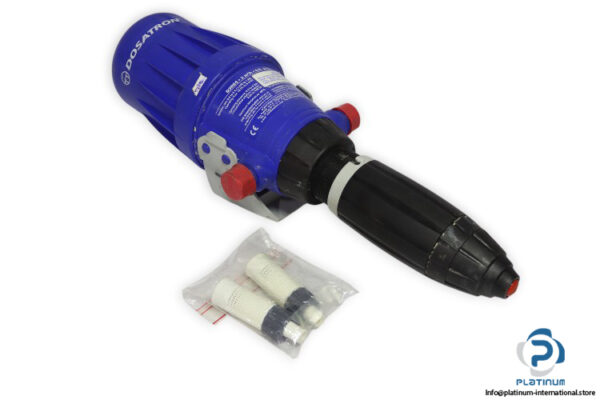

DOSATRON D3RE5 GENERIC DOSING PUMP
The Dosatron D3RE5 is a precision-engineered dosing pump ideal for proportional injection of additives in water treatment, horticulture, and livestock applications. Designed for accuracy and flexibility, it operates across a wide flow and pressure range with easy hose and connection integration.
Manufacturer: Dosatron
Type: Generic Dosing Pump
Model: D3RE5

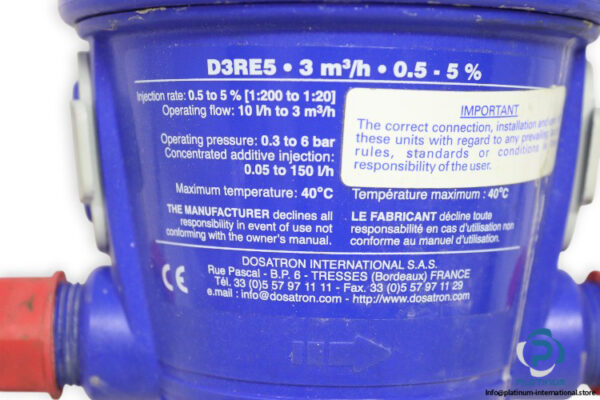

Technical Information
- Injection Range: 0.5 to 5 % (1:200 to 1:20)
- Water Flow Range: 10 to 3 m³/h
- Operating Water Pressure: 0.3 to 6 bar
- Concentrated Additive Injection: 0.05 to 150 l/h
- Stroke Volume: 0.53 l
- Connections: NTP-BSP 3/4” M Ø 20 x 27 mm
- Hose: PVC Ø 12 x 16 mm – Length 1.75 m
- Max. Temperature: 40 °C
