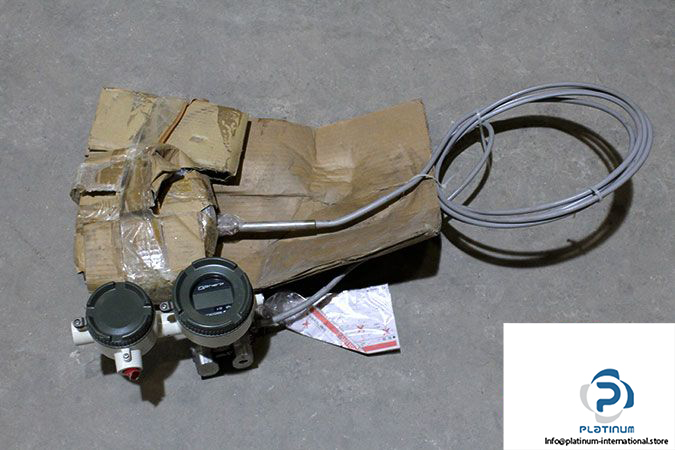

Manufacturer: Yokogawa Electric Corporation DPharp

Type: Diaphragm sealed absolute pressure transmitter

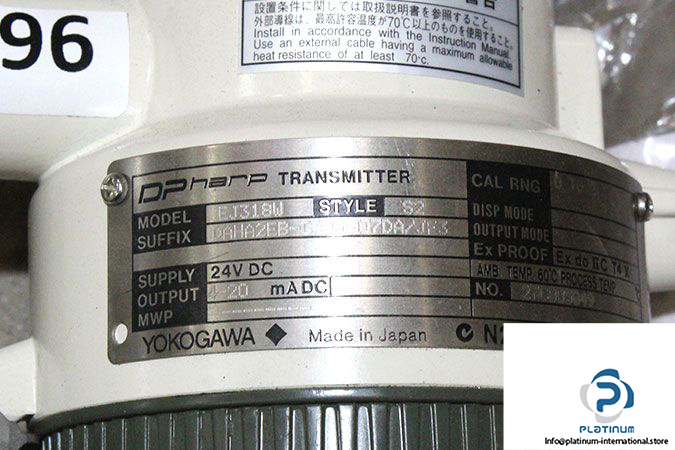

Model: EJ318W

Order Code: EJ318W DAHA2EB-CA05-07DA/JF3

Power Supply: 24 V DC

Output signal: 4 to 20 mA DC with digital communication (BRAIN protocol)

Measurement span (capsule): 0.06 to 3 MPa {0.6 to 30 kgf/cm2}

Wetted parts material: Hastelloy C-276

Process flange rating: ANSI class 300

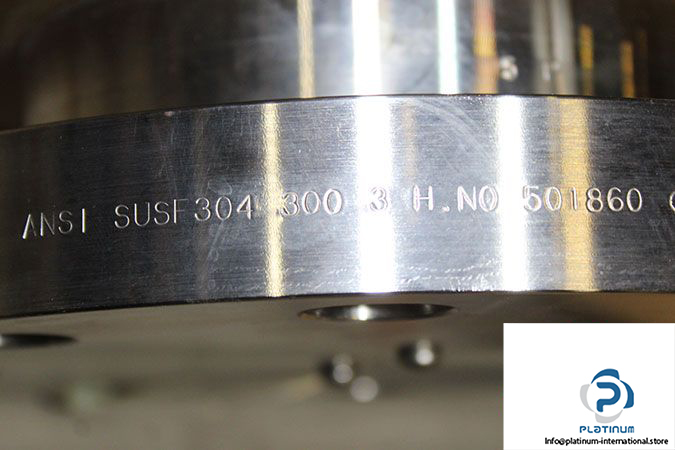

Process flange size/ material: 3-inch (80 mm)/ JIS SUS304

Cover flange bolts material: JIS SUS630

Fill fluid: Silicon

Capillary length: 5 m

Installation: Vertical impulse piping type, left side terminal box

Electrical connection: 1/2 NPT female, with external indicator connection

Integral indicator: Digital indicator

Mounting bracket: JIS SECC 2-inch pipe mounting (flat type)

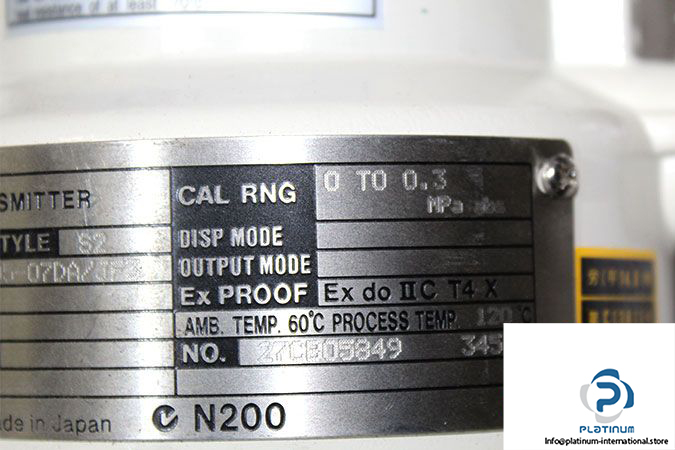

Calibrating Range: 0 … 0.3 MPa

Ambient Temp.: 60 °C

Process Temp.: 120 °C

Ex Proof: Ex do IIC T4 x

Weight: 19 kg
