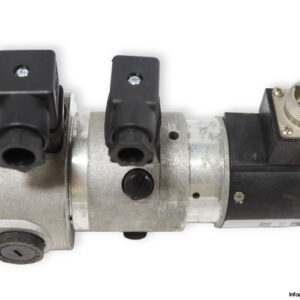

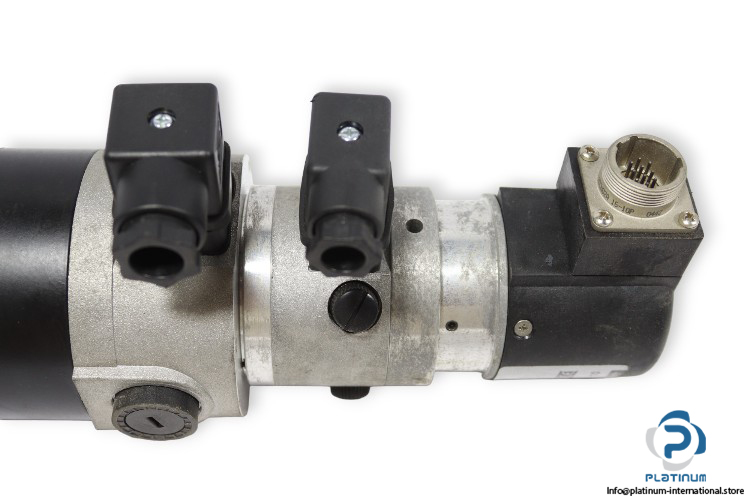

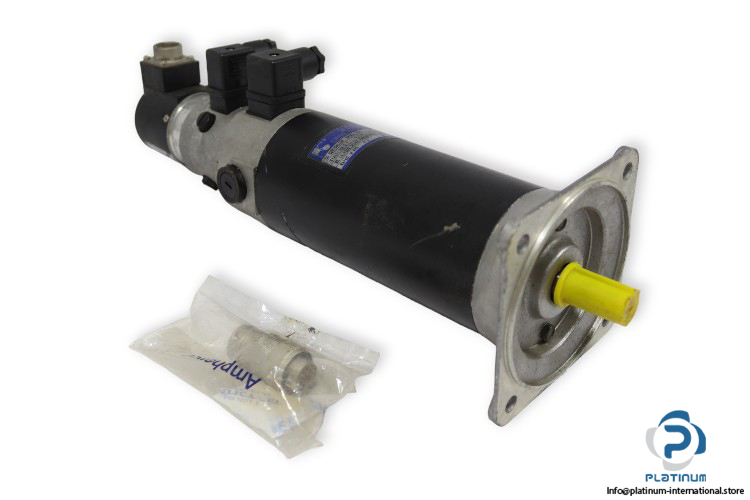

DRIVE SYSTEMS MP66L K53 DC SERVOMOTOR WITH DC10R TACHOGENERATOR

Drive Systems’ MP66L K53 is a precision-engineered DC servomotor designed for dynamic and demanding industrial control applications. With high torque output and integrated tachogenerator feedback, it offers stable, efficient performance across a wide range of operating conditions.

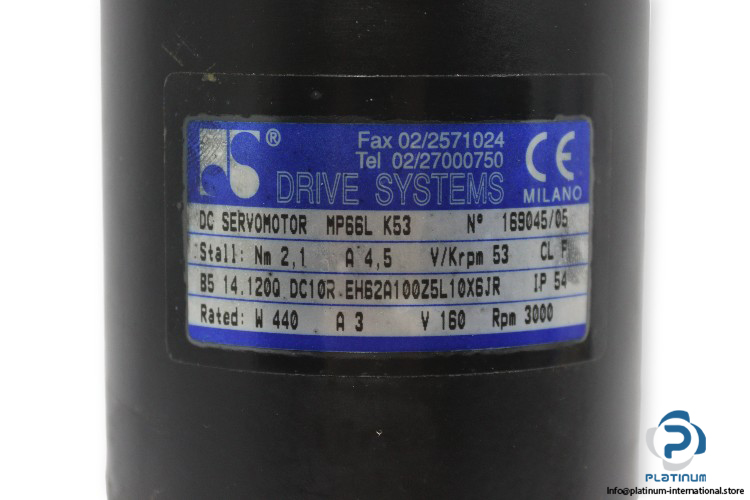

Manufacturer: Drive Systems
Type: DC Servomotor
Model: MP66L K53
No.: 169045/05

Technical Information “ Servomotor

• Rated Voltage: 160 V
• Rated Current: 3 A
• Stall Current: 4.5 A
• Rated Speed: 3000 rpm
• Voltage Constant: 53 V/Krpm
• Rated Power: 440 W
• Stall Torque: 2.1 Nm

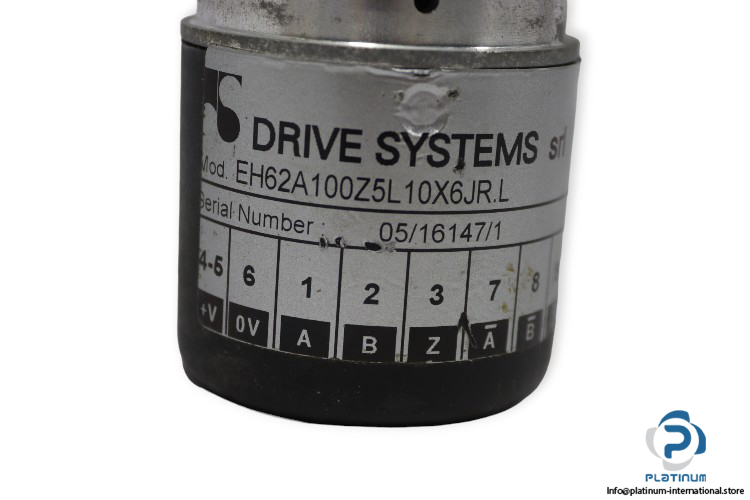

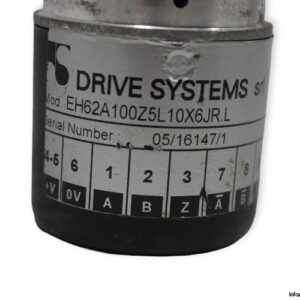

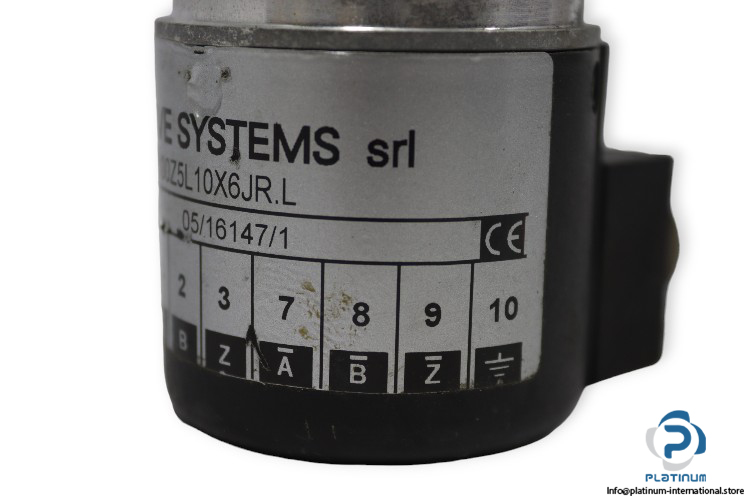

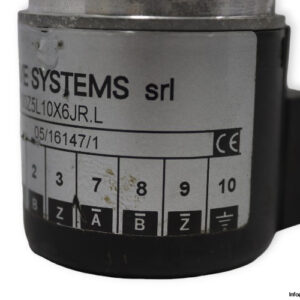

• Encoder Model: EH62A100Z5L10X6JR.L
• Encoder Serial No.: 05/16147/1
• Number of Poles: 2 poles
• Thermal Class: F
• Protection Class: IP54

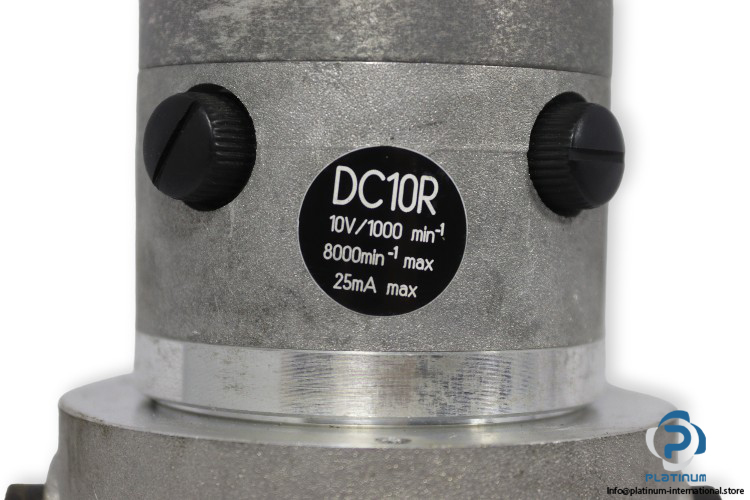

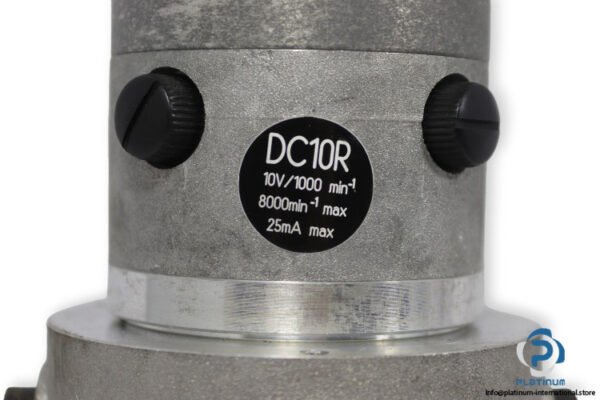

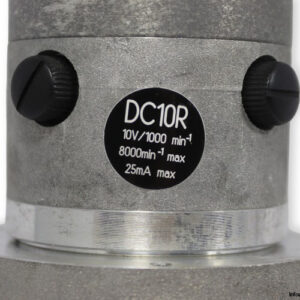

Attachment “ Tachogenerator

Manufacturer: Drive Systems
Type: DC Tachogenerator
Model: DC10R

• Rated Voltage: 10 V
• Rated Speed: 1000 min^-1
• Maximum Speed: 8000 min^-1
• Maximum Current: 25 mA
