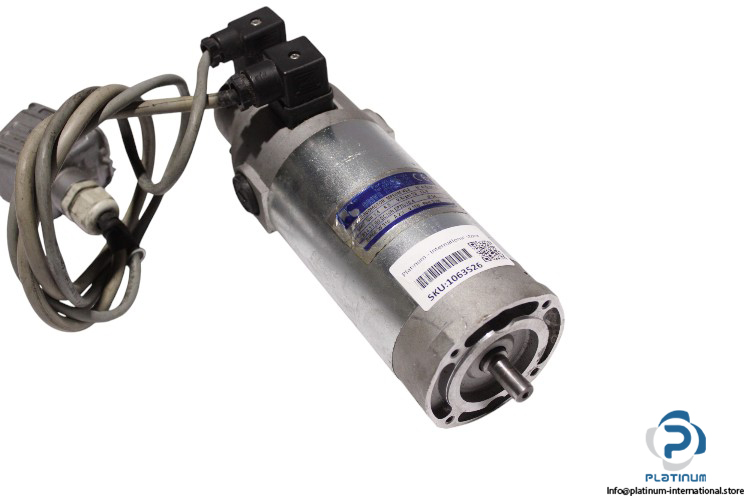

DRIVE SYSTEMS DC SERVOMOTOR

The DRIVE SYSTEMS DC Servomotor (Model: MP66MK53, Part No. 415168/20) offers high efficiency and precise control for a wide range of industrial applications. With a rated voltage of 160 V and a rated current of 2.1 A, this servomotor delivers 315 W of rated power, providing excellent performance with a stall torque of 1.4 Nm and rated speed of 3000 rpm.

Manufacturer: DRIVE SYSTEMS

Type: DC Servomotor

Model: MP66MK53

Part No.: 415168/20

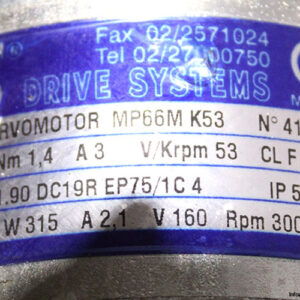

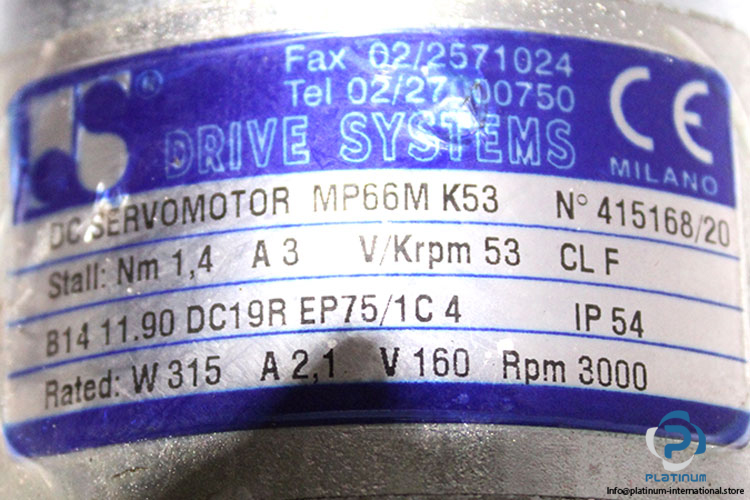

Technical Specifications

• Rated Voltage: 160 V
• Rated Current: 2.1 A
• Rated Power: 315 W
• Stall Current: 3 A
• Stall Torque: 1.4 Nm
• Rated Speed: 3000 rpm
• Voltage Constant: 53 V/Krpm
• Encoder: B1411.90 DC19R EP75/1C4
• Thermal Class: F
• Protection Class: IP54
