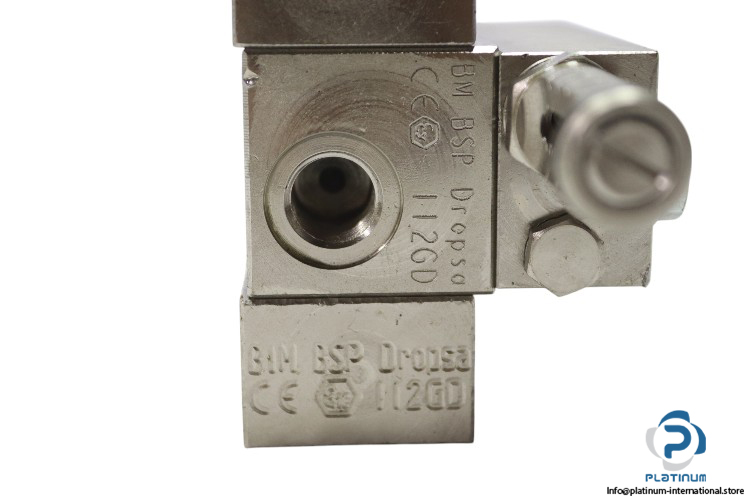

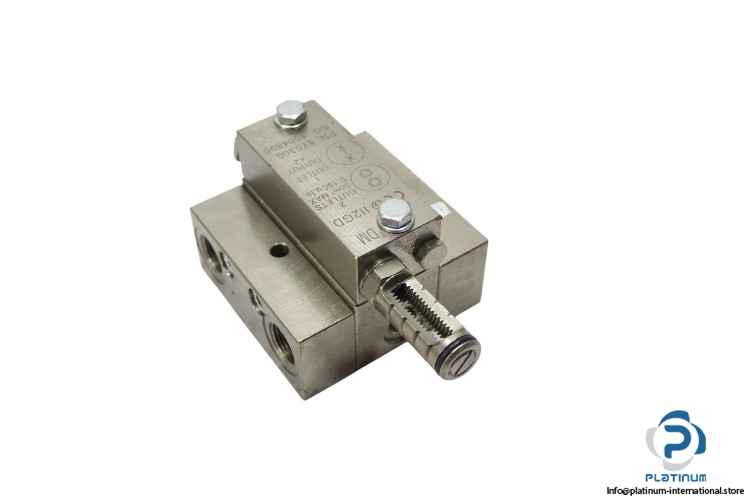

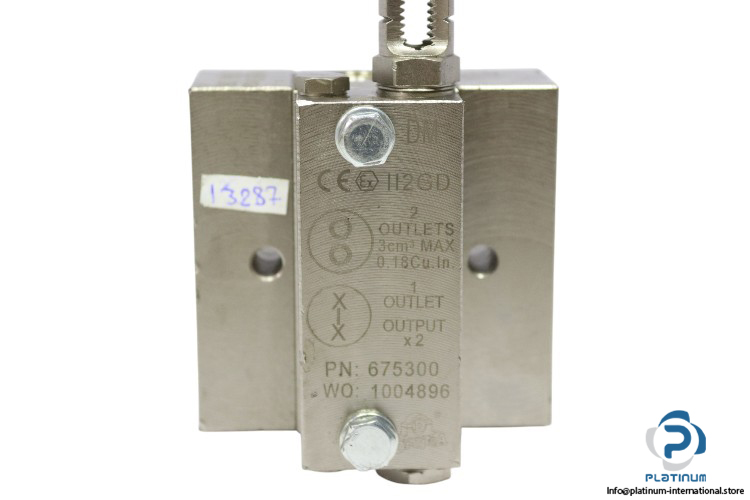

Dropsa DM Dual Line Lubrication Divider Valve
The Dropsa DM Dual Line Lubrication Divider Valve is designed to deliver precise and reliable lubrication for various industrial applications. With the ability to handle oil and grease lubricants, it supports a maximum inlet pressure of 5800 psi and operates in a wide temperature range, ensuring optimal performance in harsh conditions.
Manufacturer: Dropsa
Type: Dual Line Lubrication Divider Valve
Model: DM
Part No.: 675300
Ref. No.: 1004896
Technical Data:
- Lubricant: Oil, Grease
- Connections: Outlet G1/4, Inlet G3/8
- Output: 2 output (max. 3 cm³ / 0.18 Cu.inch)
- Temperature Range: -30 to +80 °C
- Number of Cycles: 100 cycles/minute
- Max. Inlet Pressure: 5800 psi (400 bar)
- Minimum Lubricant Viscosity: 100 cSt
- Max. Grease Consistency: 265 ASTM (NLGI 2)
- Protection Proof: EX II2GD
