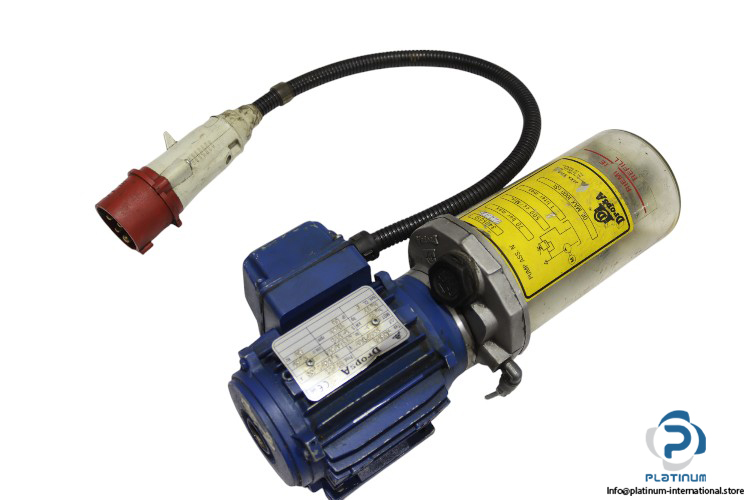

Dropsa M56P4 Lubricator Tank Pump with Pump Assembly

The Dropsa M56P4 Lubricator Tank Pump is a compact and efficient lubrication unit designed for oil-based systems. It comes equipped with the 3405010 Pump Assembly for reliable delivery and performance under demanding industrial conditions.

Manufacturer: DROPSA

Type: Lubricator Tank Pump

Model: M56P4

Part No.: A1183604

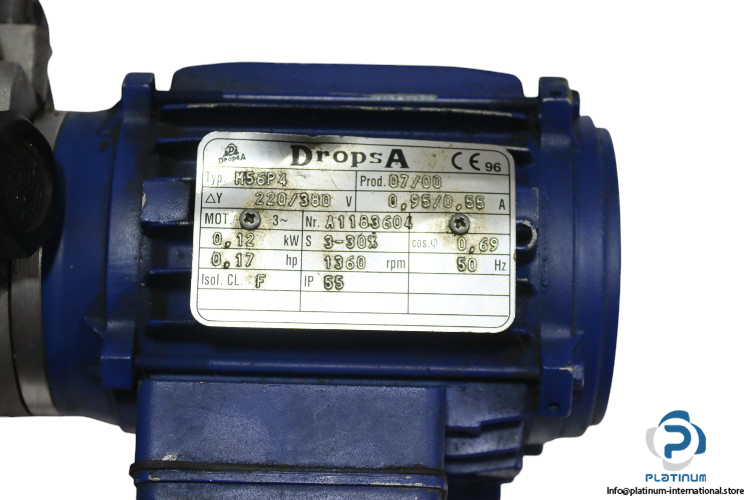

Main Pump Technical Information:

• Supply Voltage: 3-Phase 220 / 380 V AC
• Rated Current: 0.95 / 0.55 A
• Frequency: 50 Hz
• Power: 0.12 kW / 0.17 HP
• Speed: 1360 rpm
• Protection Class: IP55
• Port No.: G 1/8

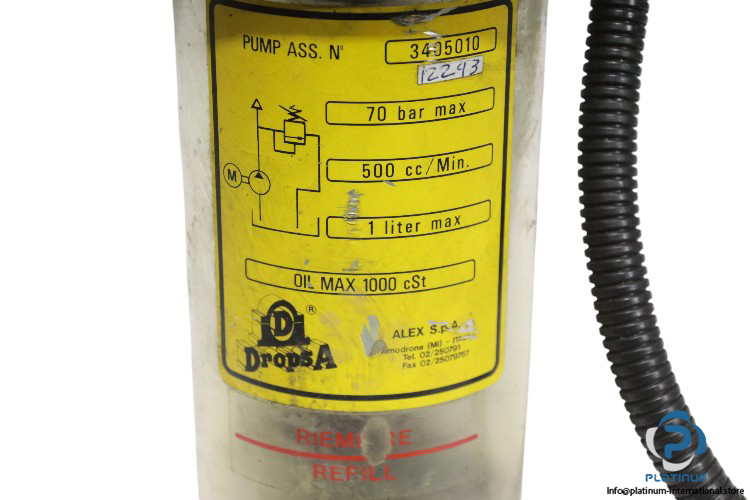

Attachment “ Pump Assembly:

• Manufacturer: DROPSA
• Type: Pump Assembly
• Model: 3405010
• Fluid: Oil
• Pressure Max.: 70 bar
• Oil Viscosity Max.: 1000 cSt
• Capacity Max.: 1 Liter
