DROPSA M56P4 LUBRICATOR TANK PUMP

Lubricator Tank Pump

The Dropsa M56P4 Lubricator Tank Pump includes a 3405010 pump assembly for oil lubrication systems. It operates at 1360 rpm, handles up to 70 bar pressure, and offers reliable performance in demanding environments.

SKU: 1062655 Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,
In stock: 1 pcs
Very low
Hurry! Only 1 left in stock.
Add to quote

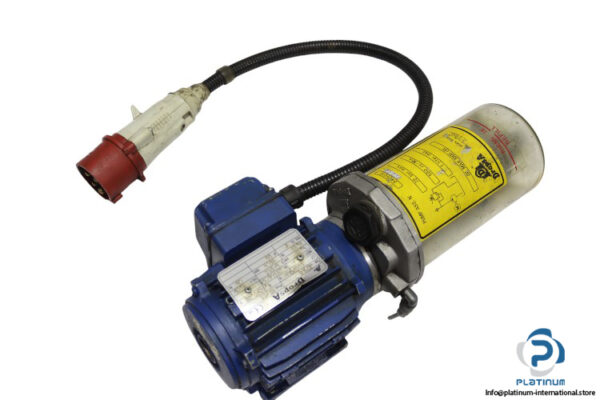

Dropsa M56P4 Lubricator Tank Pump with Pump Assembly

The Dropsa M56P4 Lubricator Tank Pump is a compact and efficient lubrication unit designed for oil-based systems. It comes equipped with the 3405010 Pump Assembly for reliable delivery and performance under demanding industrial conditions.

Manufacturer: DROPSA

Type: Lubricator Tank Pump

Model: M56P4

Part No.: A1183604

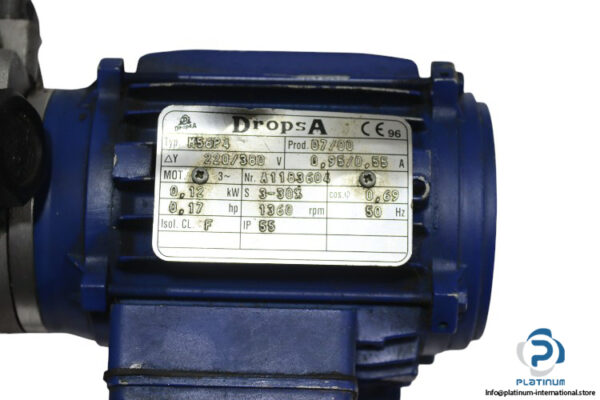

Main Pump Technical Information:

  • Supply Voltage: 3-Phase 220 / 380 V AC
  • Rated Current: 0.95 / 0.55 A
  • Frequency: 50 Hz
  • Power: 0.12 kW / 0.17 HP
  • Speed: 1360 rpm
  • Protection Class: IP55
  • Port No.: G 1/8

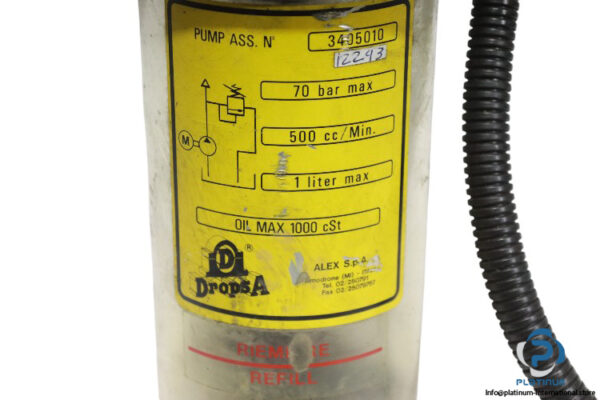

Attachment “ Pump Assembly:

  • Manufacturer: DROPSA
  • Type: Pump Assembly
  • Model: 3405010
  • Fluid: Oil
  • Pressure Max.: 70 bar
  • Oil Viscosity Max.: 1000 cSt
  • Capacity Max.: 1 Liter
Weight4,39 kg
