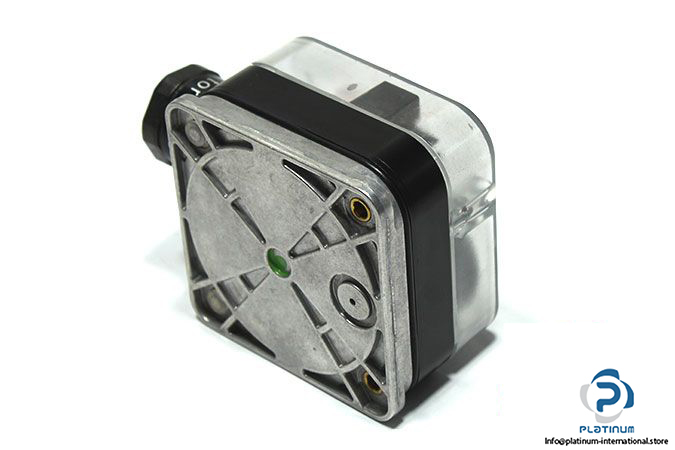

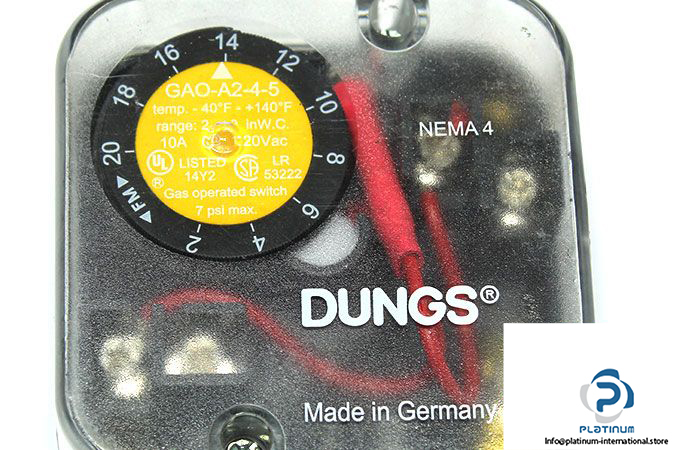

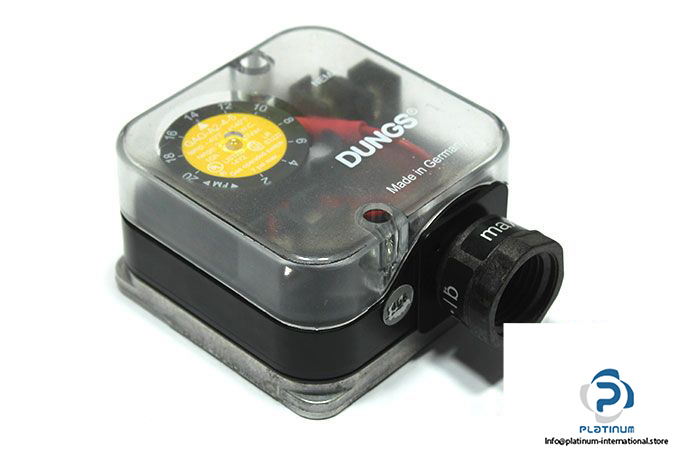

Manufacturer: Dungs

Type: Gas Pressure Switch

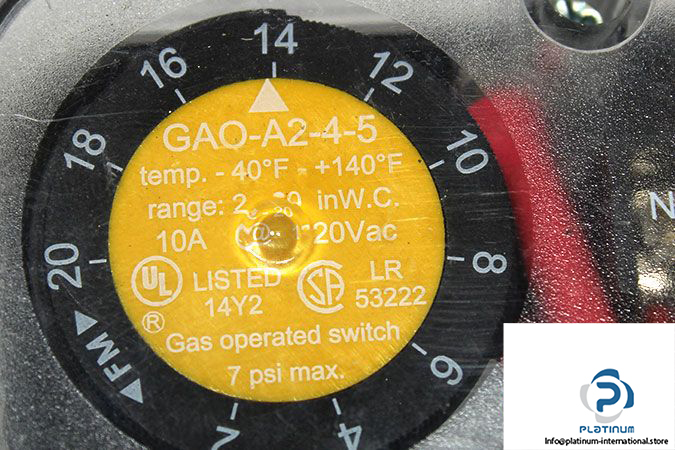

Model: GAO-A2-4-5

Order No: 266916



Max. Pressure: 0.5 bar

Voltage: 120 V AC

Current: 10 A

Power: 0.30 W

Setting Range: 2.00-20.00 W.C

Pressure Connection: O-Ring Flange Connection on Underside of Pressure Switch

Electrical Connection: Screw Terminals Via 1/2″ NPT Conduit Connection

Materials

• Housing: Aluminum
• Switch: Polycarbonate
• Diaphragm: NBR-Based Rubber
• Switching Contact: Silver

Ambient Temperature: -40…60 °C

Weight: 0.23 kg
