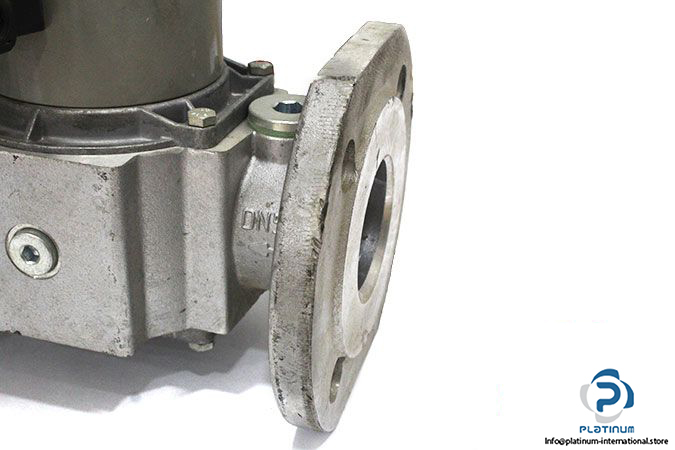

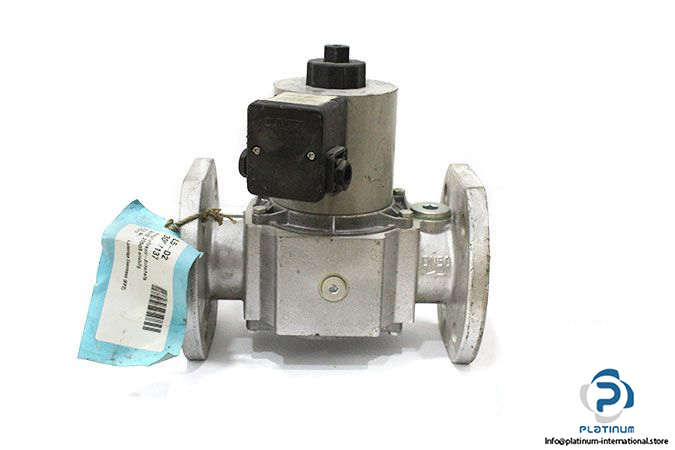

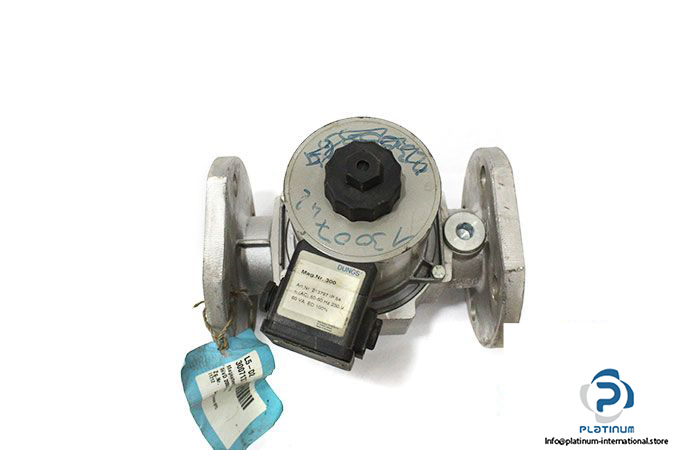

Manufacturer: DUNGS

Type: Double Solenoid Gas Valve

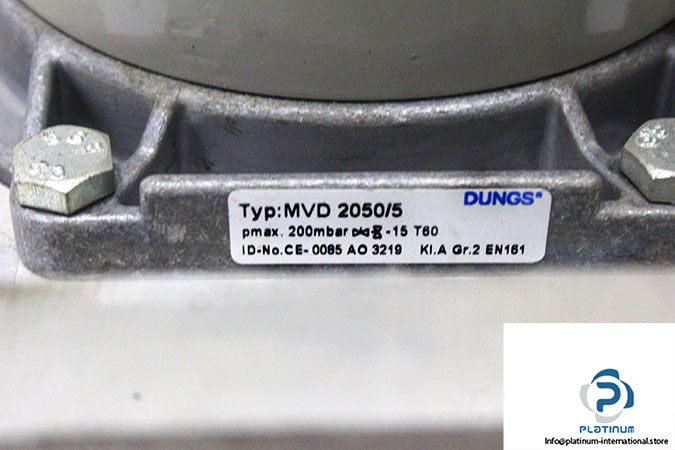

Model: MVD 2050/5

MRN: 111 187

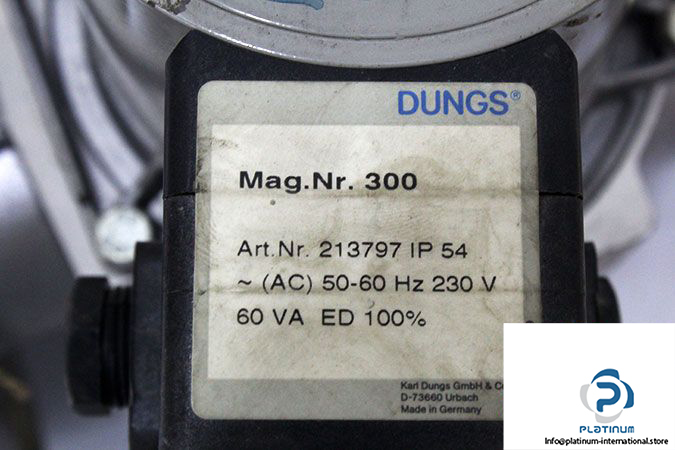

Solenoid No.: 300

Version: fast opening and fast closing.

O/C time: 1 sec.

Supply voltage: 230V AC (to the coil)

Power consumption: 60 VA

Frequency: 50-60 Hz

Operation: ED(DU) 100%

Switching rate: max. 1k/h

Operating pressure: max. 200 mbar

Connection: DN 50

Ignition connection: G 1/4 ISO 118, on both sides in inlet section

Electrical connection: Plug connection as per DIN 175 0301-803 can be retrofitted

Medium: gases of families 1, 2, 3 and other neutral gaseous media

Housing material: Aluminum

Seals at valve seat: NBR

Ambient temp.: -15°C … 60°C

Protection Class: IP54

Weight: 7.3 kg
