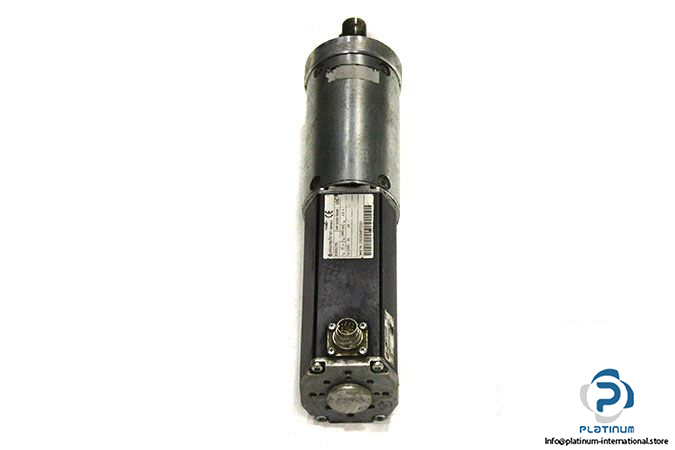

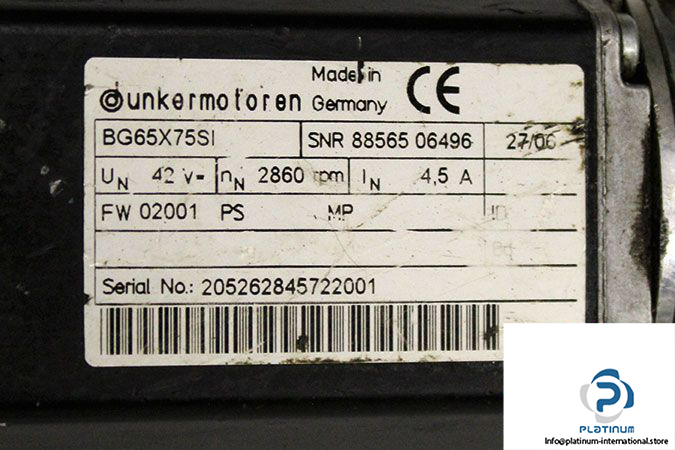

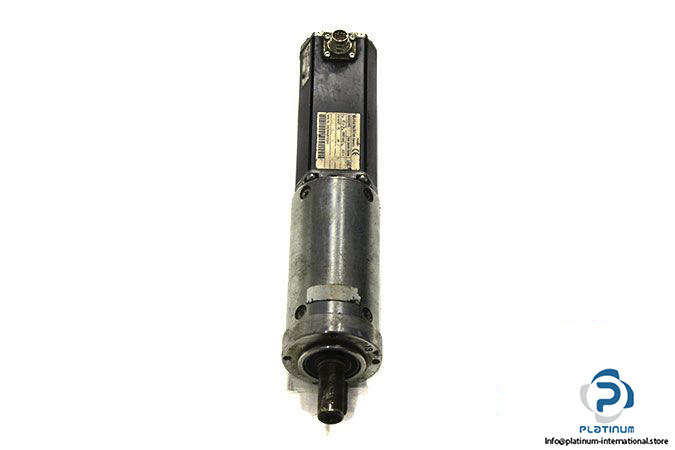

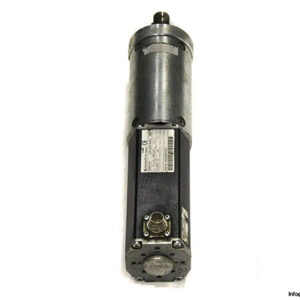

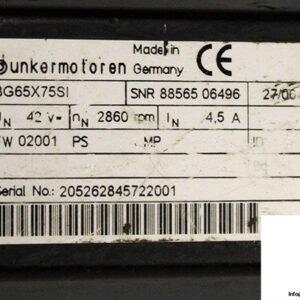

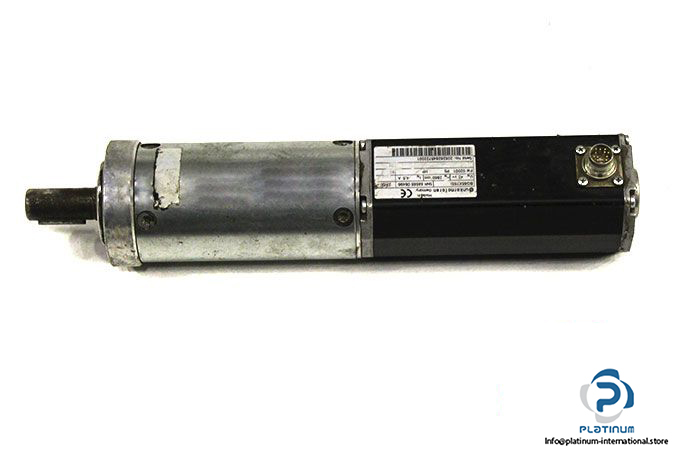

Dunker Motoren BG65X75SI Brushless Servo Motor
The Dunker Motoren BG65X75SI Brushless Servo Motor is designed for high-precision motion control applications. With a rated output power of 120 W and a maximum torque of 3.30 Nm, this motor delivers exceptional efficiency and durability. It operates at a rated voltage of 42 VDC, making it suitable for industrial automation, robotics, and high-performance drive systems.
- Manufacturer: Dunker Motoren
- Type: Brushless Servo Motor
- Model: BG65X75SI
Technical Specifications
- Ratio: 34
- Rated Voltage: 42 VDC
- Rated Current: 4.5 A
- Rated Output Power: 120 W
- Max. Output Power: 260 W
- Max. Torque: 3.30 Nm
- Rated Torque: 0.40 Nm
- Stall Torque: 3.30 Nm
- Rated Speed: 2860 minâ»Â¹
- Resistance: 0.31 Ω
