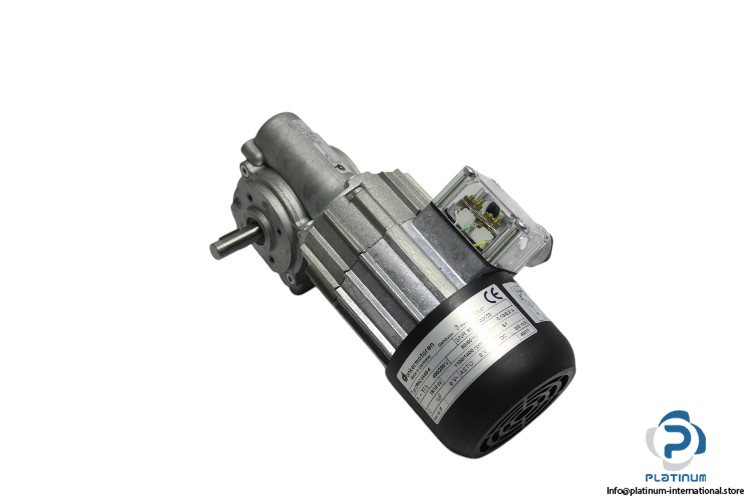

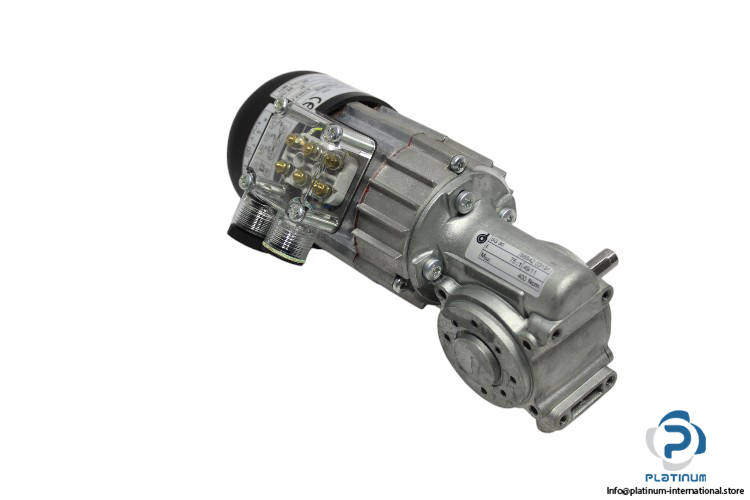

DUNKERMOTOREN DR62.0X40-4 Gearmotor

The DUNKERMOTOREN DR62.0X40-4 Gearmotor is a high-performance motor designed for industrial applications requiring precise torque and efficiency. Operating at multiple voltage and frequency settings, this gearmotor ensures smooth and reliable performance. Attached with the DUNKERMOTOREN SG 80 Right Angular Gearbox, it delivers enhanced power transmission and optimized torque for demanding operations.

• Manufacturer: DUNKERMOTOREN
• Type: Gearmotor
• Model: DR62.0X40-4
• Serial No.: 88183 03123

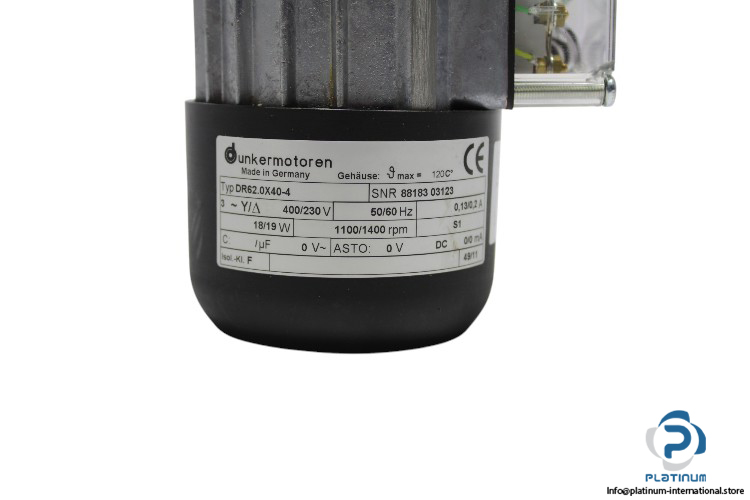

Technical Specifications

• Rated Voltage: 400 / 230 V Star/Delta
• Rated Frequency: 50 / 60 Hz
• Rated Speed: 1100 / 1400 RPM
• Rated Power: 18 / 19 W
• Rated Current: 0.13 / 0.2 A
• Duty: S1
• Isolation Class: F

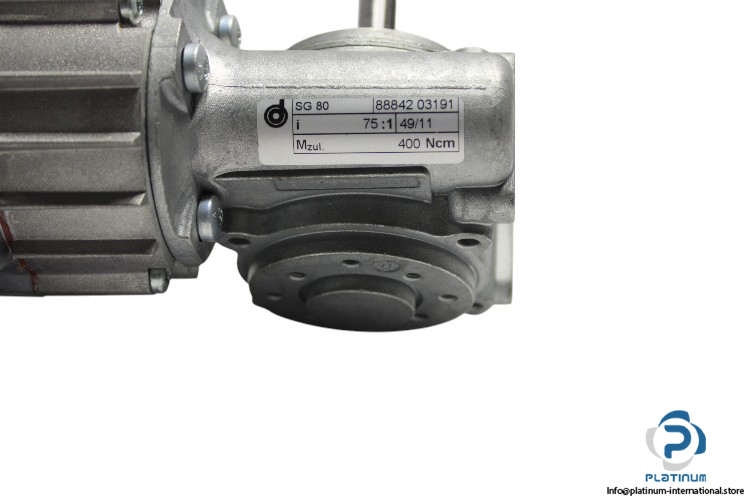

• Attached with: DUNKERMOTOREN SG 80 Right Angular Gearbox
• Ratio: 75
• Torque: 400 Ncm
