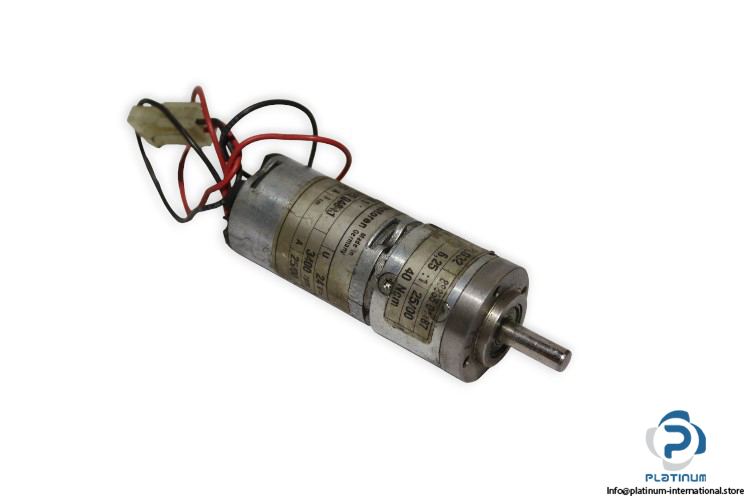

Dunkermotoren G30.1 DC Gearmotor With Gearbox

The Dunkermotoren G30.1 is a compact and high-performance DC gearmotor with an integrated PLG32 planetary gearbox, engineered for precision, durability, and reliability. Designed for continuous industrial operation, it provides smooth motion, excellent torque control, and quiet performance. Ideal for automation systems, conveyors, laboratory instruments, and mechatronic assemblies requiring stable torque and low noise.

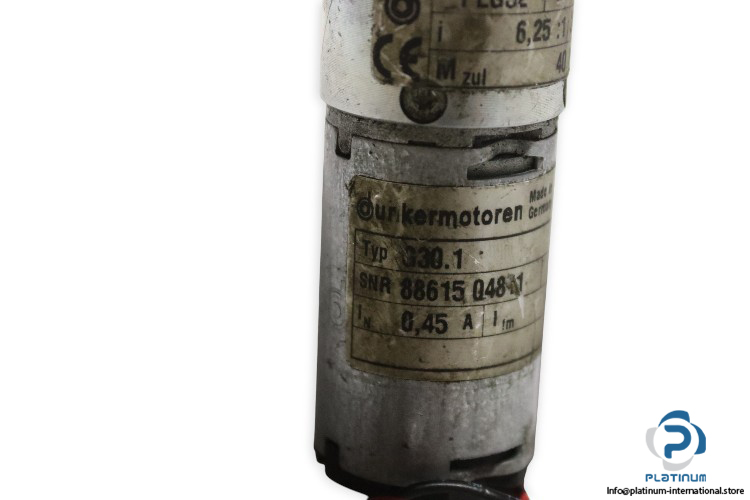

Manufacturer: Dunkermotoren
Type: DC Gearmotor With Gearbox
Model: G30.1
Serial Number: 88615 0481

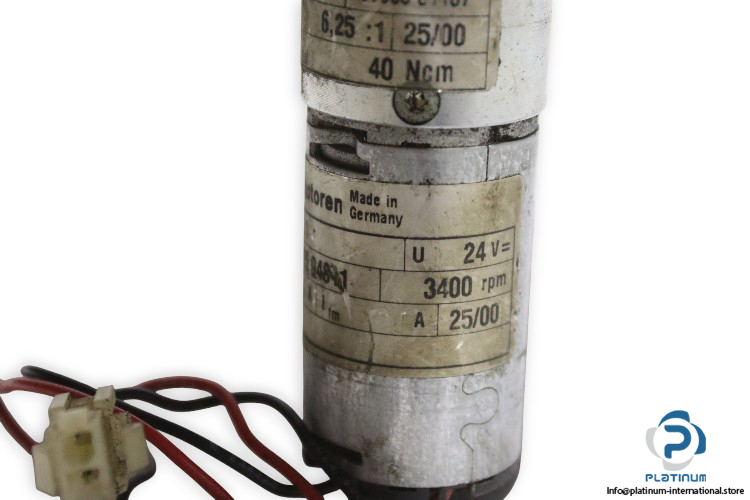

Motor Technical Information

• Voltage (U): 24 V DC
• Speed: 3400 rpm
• Current (I): 0.45 A
• No Load Current: 0.09 A
• Power Supply Type: DC (direct current)
• Construction: Brushed DC motor
• Torque: 1.7 Ncm
• Starting Torque: 6.1 Ncm
• Direction of Rotation: Reversible
• Cooling Type: Self-ventilated (air-cooled)
• Shaft Diameter: 6 mm
• Rotor Inertia: 18.5 gcm²

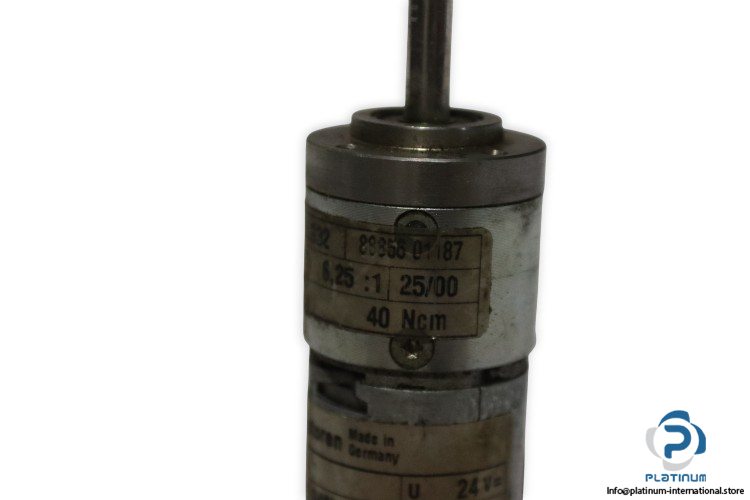

Gearbox Technical Information

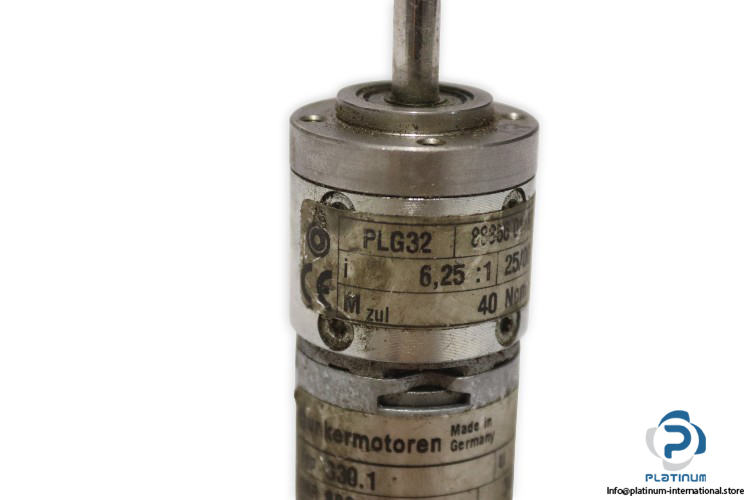

• Gearbox Type: DUNKERMOTOREN PLG32 Planetary Gearbox
• Serial Number: 88856 01187
• Gear Ratio (i): 6.25:1
• Rated Torque (Mzul): 40 Ncm (0.4 Nm)
• Maximum Output Speed (at 24 V input): approx. 540 rpm
• Material: Stainless steel housing
• Output Shaft: Solid round shaft with keyway
• Mounting Type: Inline motor-gearbox assembly
• Nominal Voltage: 24 V DC
• Nominal Speed: 3400 rpm
• Nominal Current: 0.45 A
• Output Speed (calculated): 540 rpm
• Output Torque: 0.4 Nm (40 Ncm)
• Duty Type: S1 (Continuous Operation)
• Temperature Range: -10°C to +50°C
• Noise Level: Low-noise precision gearing
• Insulation Class: F (155°C)
• Body Material: Metal with precision-machined aluminum end caps
• Protection Class: IP40
• Mounting Orientation: Universal horizontal or vertical installation
• Electrical Connection: Two-lead DC connection (red = positive, black = negative)
• Optional Feedback: Encoder compatible on rear side (not installed on this unit)

This gearmotor offers an excellent balance between compact size, speed control, and torque output. Its stainless steel planetary gearbox ensures long service life and low maintenance operation. Perfect for engineers and automation designers seeking reliable motion control in continuous-duty environments.
