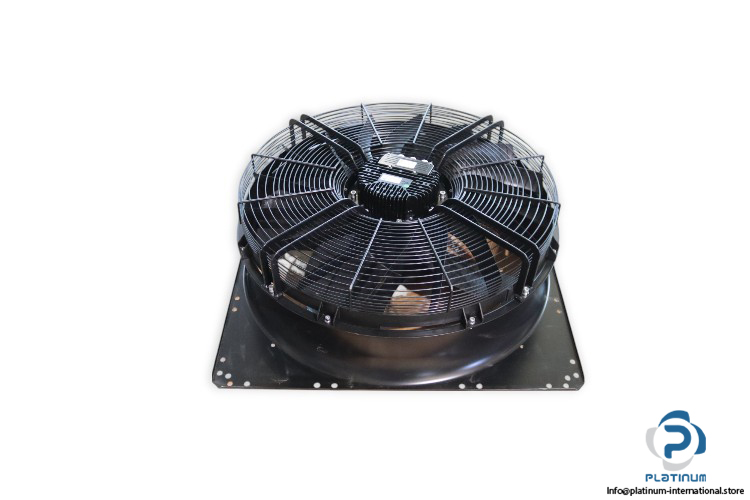

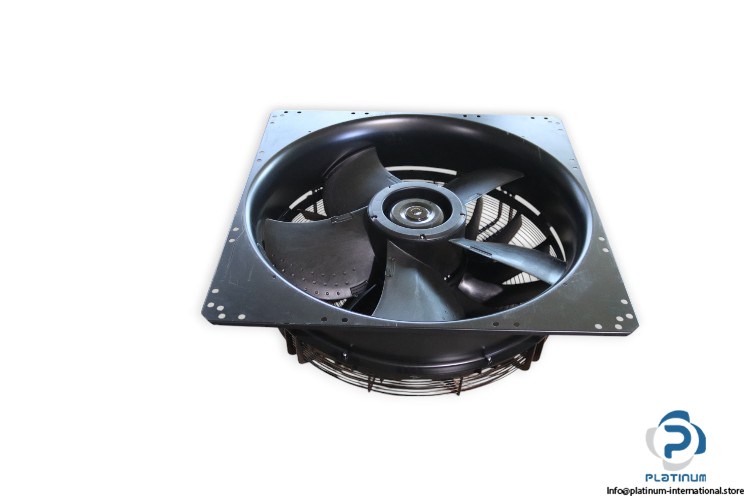

DUNLI EC180-A800-C04 074-05S-F-500 AXIAL FAN

Engineered for high-efficiency air movement in industrial and ventilation systems, this Dunli axial fan offers powerful airflow with inverter control. With a rugged metal frame, high-performance plastic blades, and advanced thermal protection, it™s built for durability and precision in demanding environments.

Manufacturer: Dunli
Type: Axial Fan

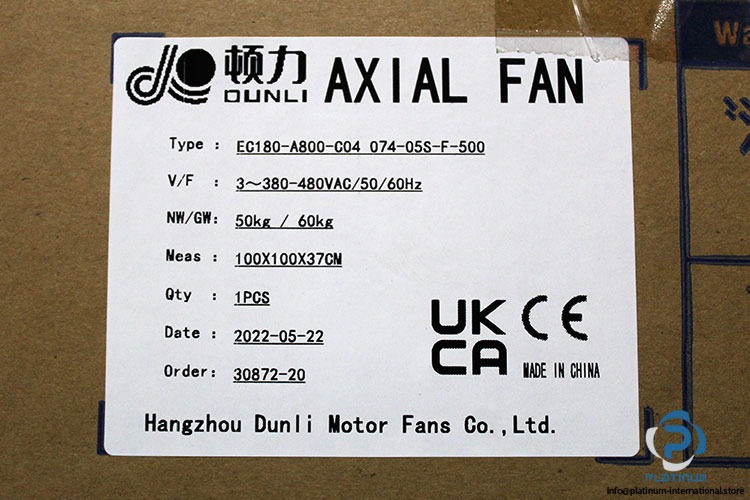

Model: EC180-A800-C04 074-05S-F-500

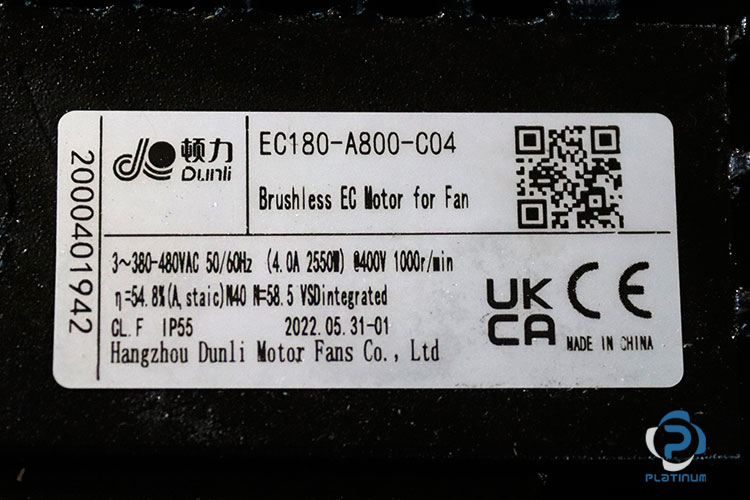

Code: 2000401942

Technical Information

• Frame Shape: Square Frame
• No. of Blades: 6

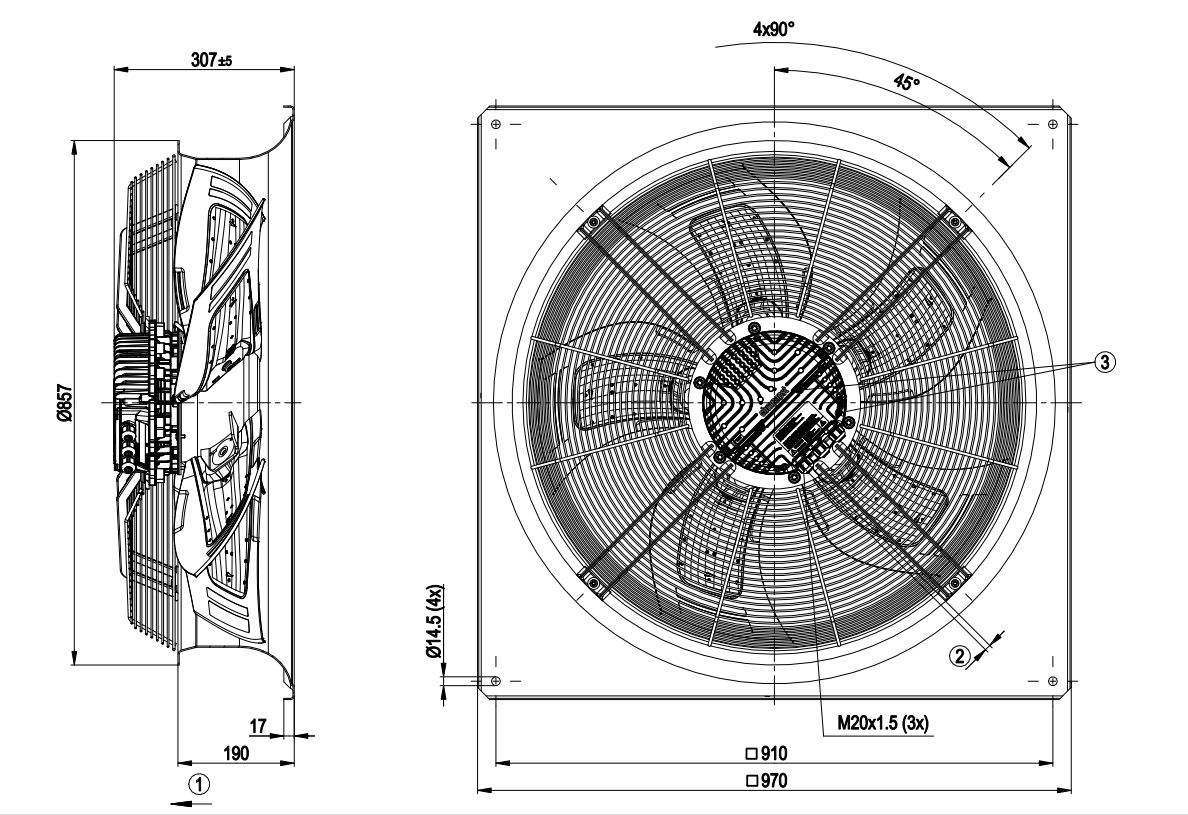

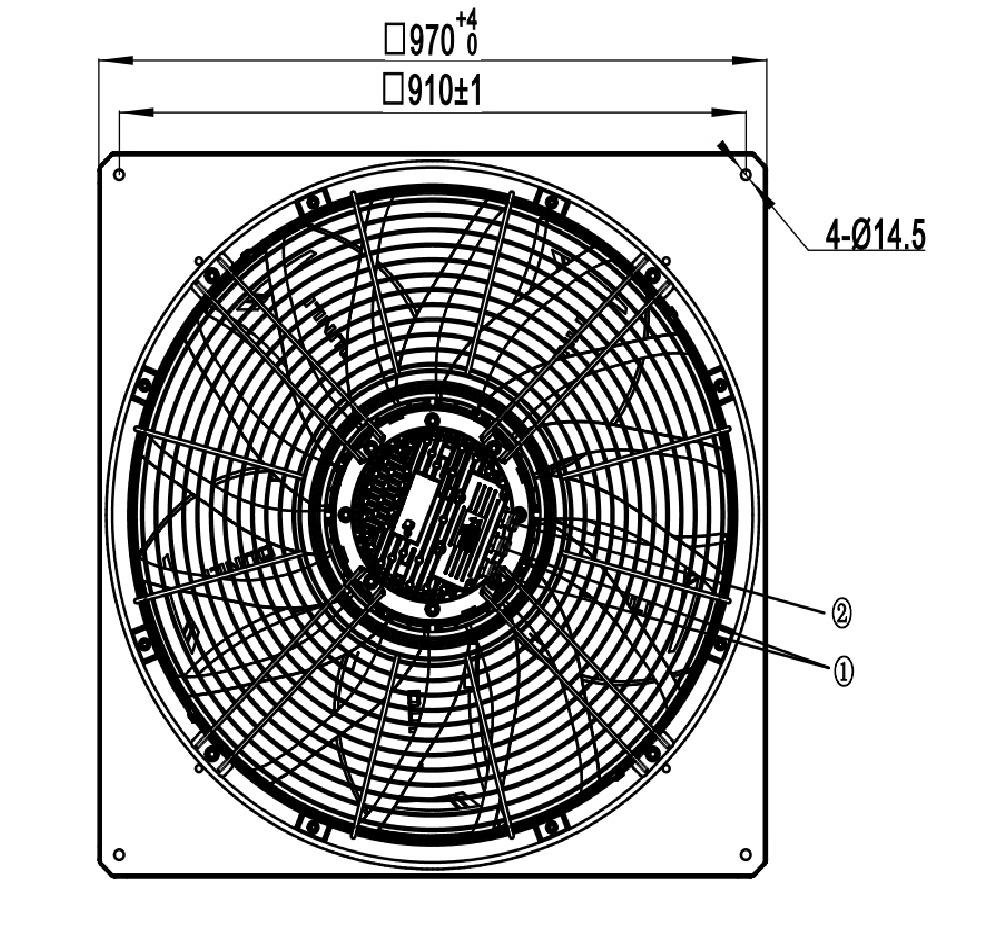

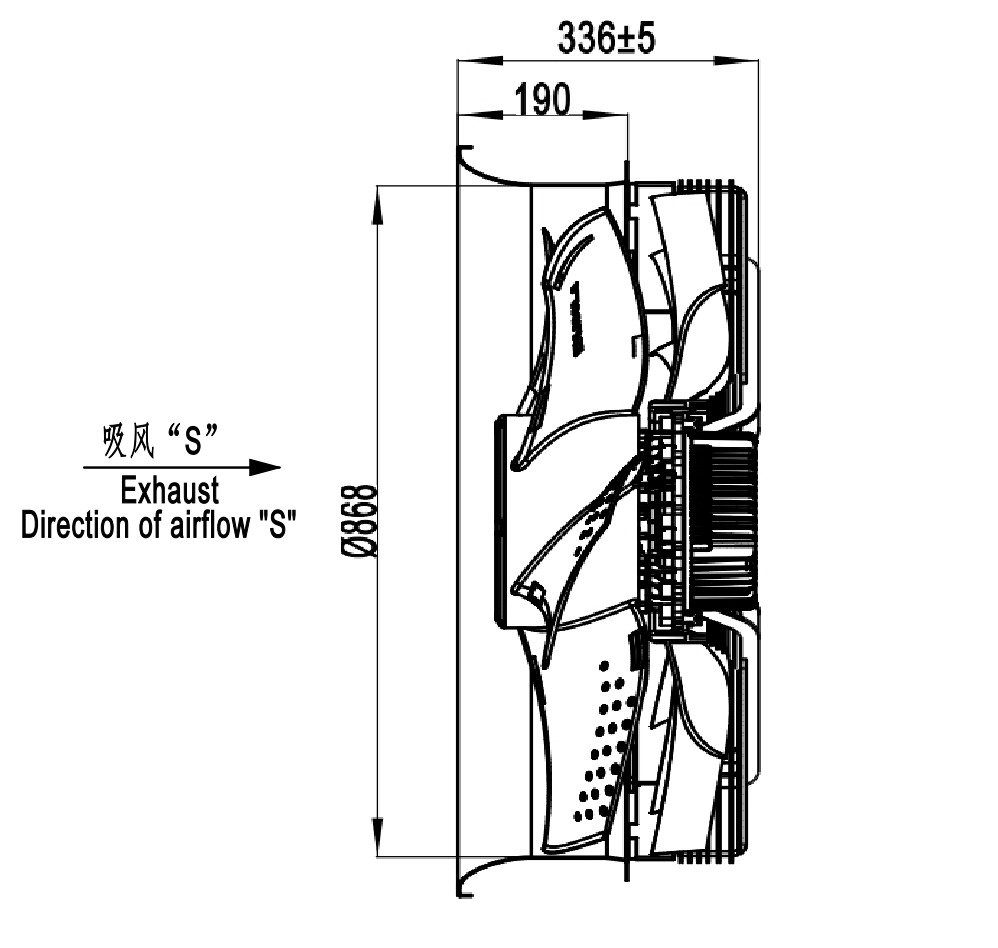

• Dimension: 970x970x336 mm
• Direction: Push
• Voltages (V): 380 to 480
• Power Rating (W): 2550
• Speed (rpm): 1000
• Flow Rate (m³/h): 27300
• Flow Rate (CFM): 16079.7
• Current (A): 4
• Frequency: 50/60 Hz
• Inverter: With Inverter
• Blade Material / Fan Housing Material: Plastic / Metal
• IP Rate: 55
• Efficiency: 54.8%
• Efficiency of Grade: 58.5, N40
• Measurement Category: A
• Efficiency Category: Static
• Class: F
• Temperature Range: -25 to 60°C
