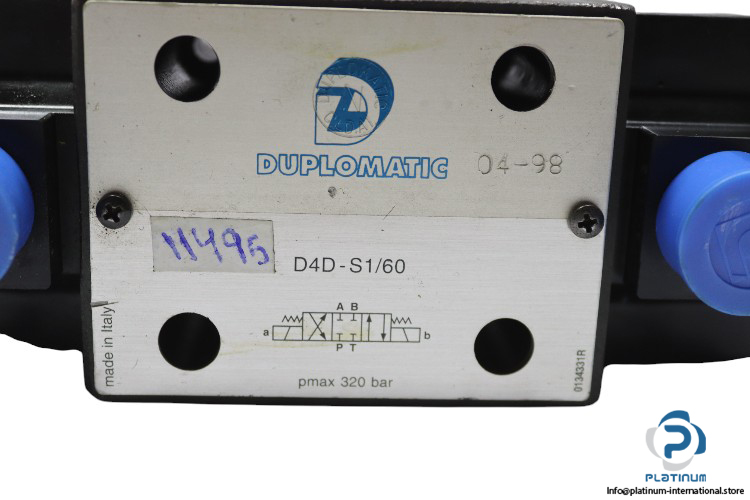

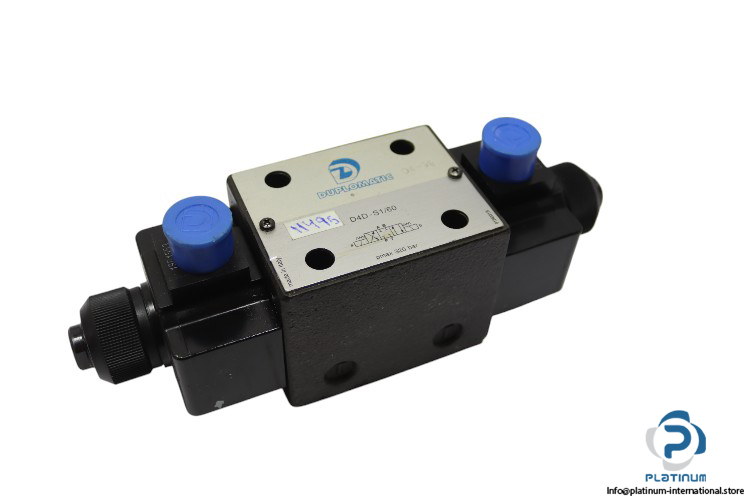

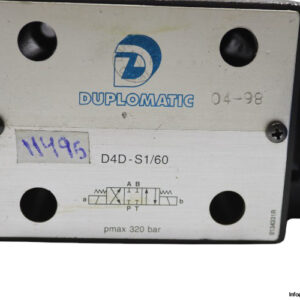

Duplomatic D4DS1/60 Solenoid Operated Directional Control Valve
The Duplomatic D4DS1/60 Solenoid Operated Directional Control Valve is designed for high-performance hydraulic applications requiring precise flow and pressure control. With an electrically actuated mechanism, it ensures efficient operation under demanding industrial conditions.
- Manufacturer: Duplomatic
- Type: Solenoid Operated Directional Control Valve
- Model: D4DS1/60
- ID. No.: 04-98
- Ref. No.: 0134331R
Technical Information
- Size: 05
- Type of Actuation: Electrically
- Max. Pressure: 320 bar
- Maximum Flow Rate: 100 l/min
- Ambient Temperature Range: -20 to +50 °C
- Fluid Temperature Range: -20 to +70 °C

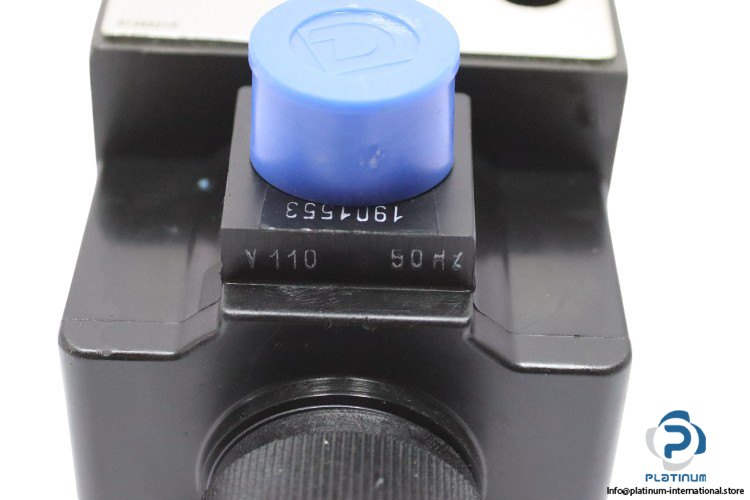

- Nominal Voltage per Coil: 110 V AC, 50 Hz
- Hydraulic Connection: 5 mm
Engineered for industrial applications, the Duplomatic D4DS1/60 offers reliability, precision, and durability for hydraulic systems.
