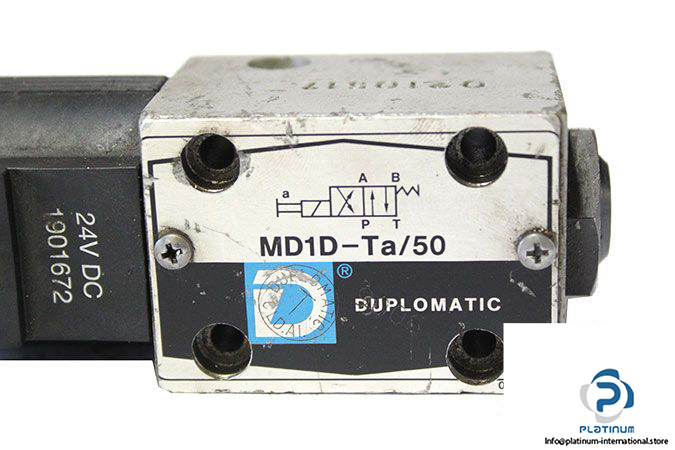

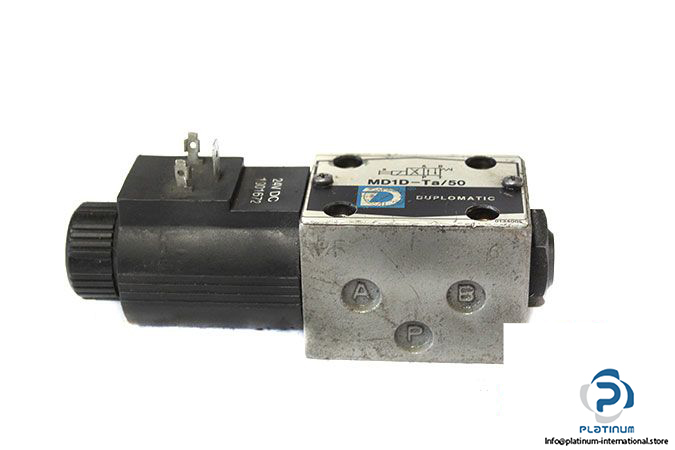

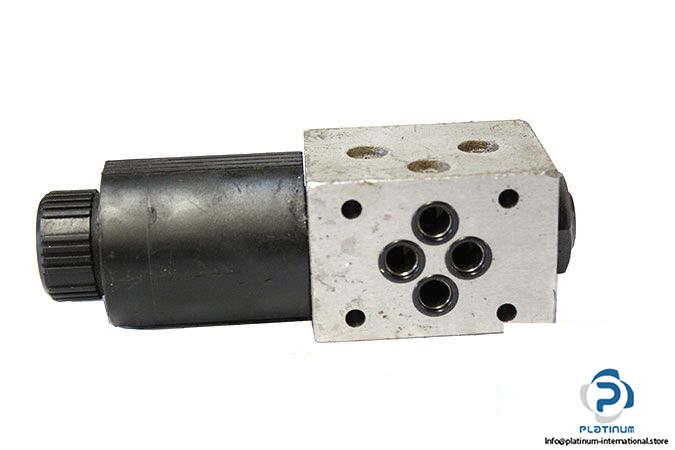

Manufacturer: DUPLOMATIC

Type: Directional Control Valve

Model: MD1D-Ta/50

Nominal Size: 6

Type of Actuation: Electrically

Ambient Temperature Range: –20 …. +50 ^oC

Max. working pressure at ports P, A, B: 350 bar

Max. working pressure at port T: 140 bar

Maximum Flow Rate-from port P to A or B: 75 l/min

Maximum Flow Rate-from port A to B or T :85 l/min

Fluid Temperature Range: –20 …. +80 ^oC

Connection: Sup-Plate

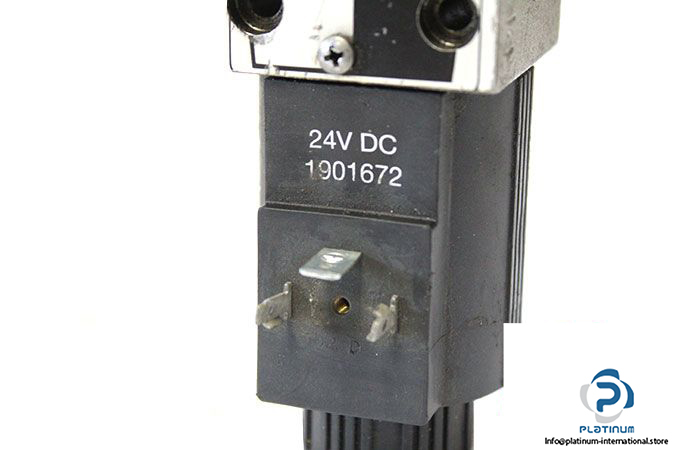

Attachment: DUPLOMATIC 1901672 SOLENOID COIL

Manufacturer: DUPLOMATIC

Type: Solenoid Coil

Model: 1901672

Voltage: 24 VDC



Weight: 1.31 kg
