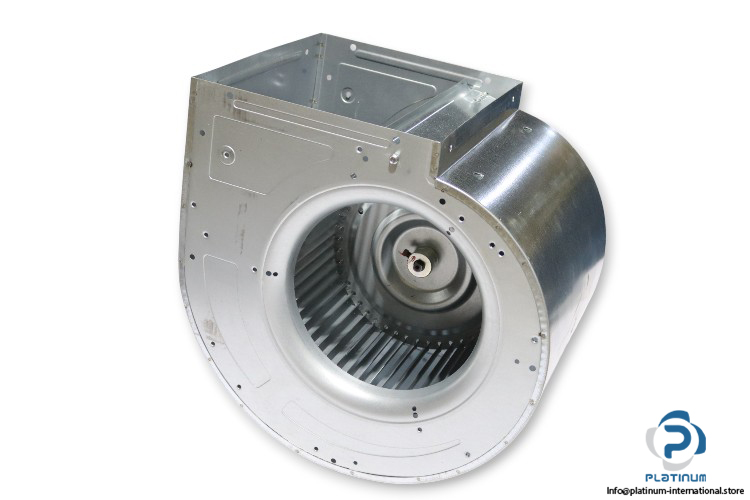

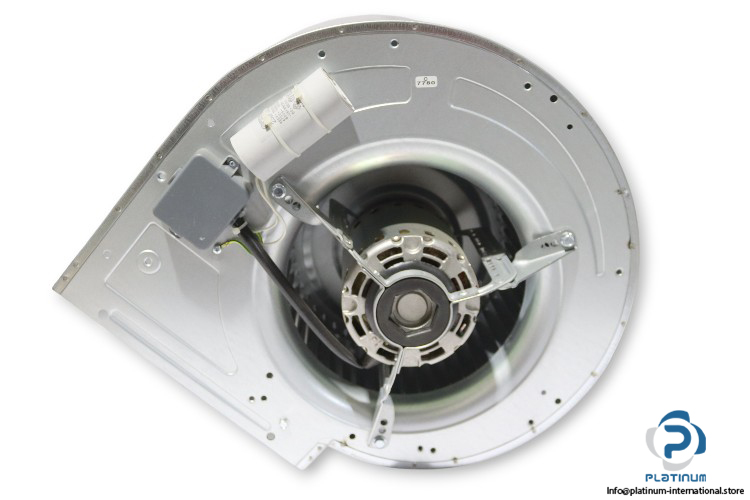

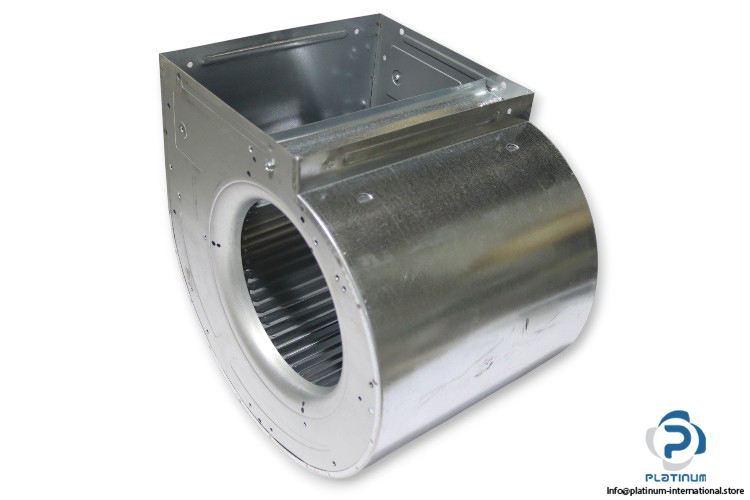

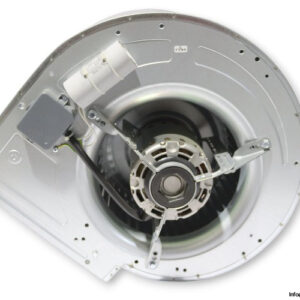

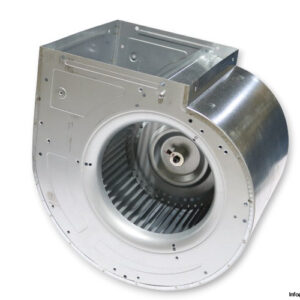

Dynair 1DA0024 Centrifugal Blower Fan
The Dynair 1DA0024 Centrifugal Blower Fan is a high-performance air movement solution designed for continuous duty in industrial and HVAC systems. Built with robust metal blades and housing, it delivers powerful airflow with low noise levels, making it ideal for ventilation, cooling, and exhaust applications. Its compact design, reliable single-phase motor, and energy-efficient operation ensure dependable performance in demanding environments.

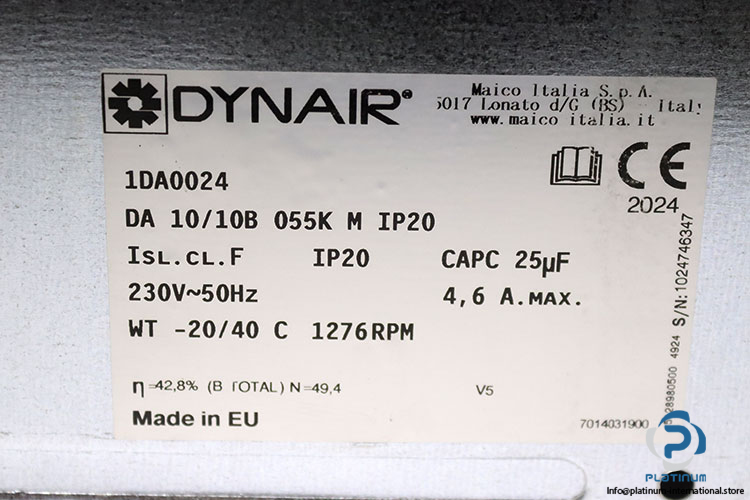

Manufacturer: Dynair
Type: Centrifugal Blower Fan
Model: 1DA0024
Code: DA 10/10B 055K M IP20
Serial No.: 1024746347
Technical Information
- Voltage (V AC): 230
- Power Rating (W): 80
- Frequency (Hz): 50
- Current (A): 4.6
- Speed (rpm): 1276

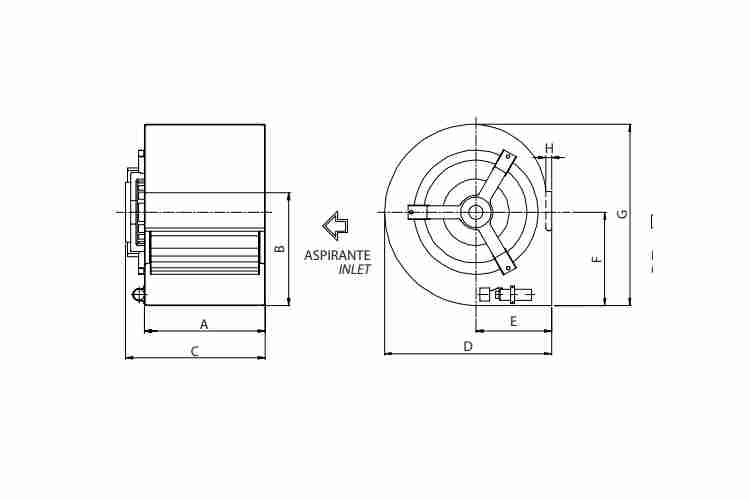

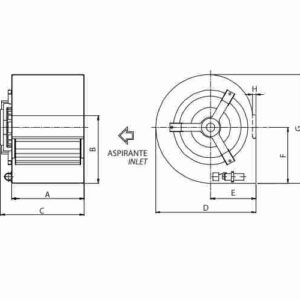

- Dimensions (mm): 383 x 423 x 443
- Blade/Fan Housing Material: Metal
- Inverter: Without inverter
- Temperature Range (°C): -20 to 40
- Protection Degree: IP20
- Capacitor: 25 mF
- No. of Poles: 4
- Efficiency: η = 42.8% (approx.)
- Noise Level: 49.4 dB (approx.)
- Certificate: ISL.Cl.F

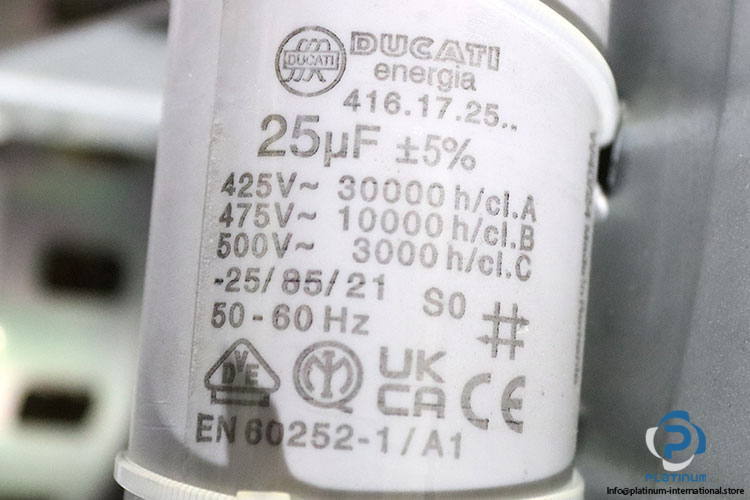

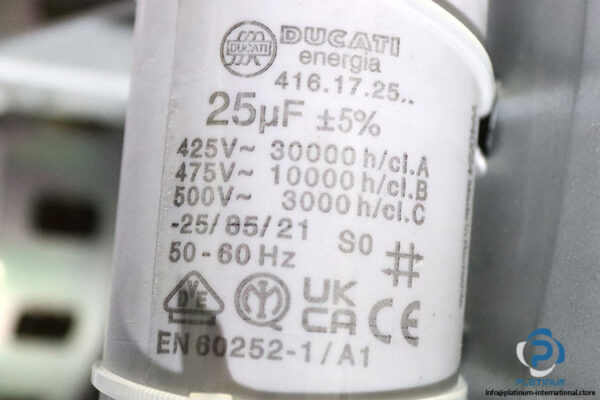

Attachment: DUCATI ENERGIA 416.17.25 Motor Run Capacitor
- Rated Voltage: 425 V AC (Class A, 30,000 h) / 475 V AC (Class B, 10,000 h) / 500 V AC (Class C, 3,000 h)
- Frequency: 50“60 Hz
- Standard: EN 60252-1/A1
- Capacitance: 25 Mf
- Climatic Category: 25/85/21
- Safety Certifications: CE, UKCA, VDE Approved
- Duty: S0 (Continuous)

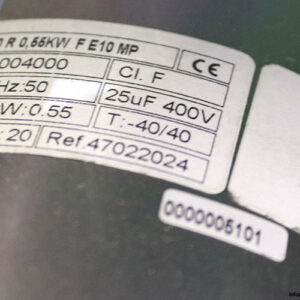

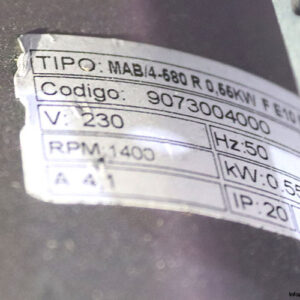

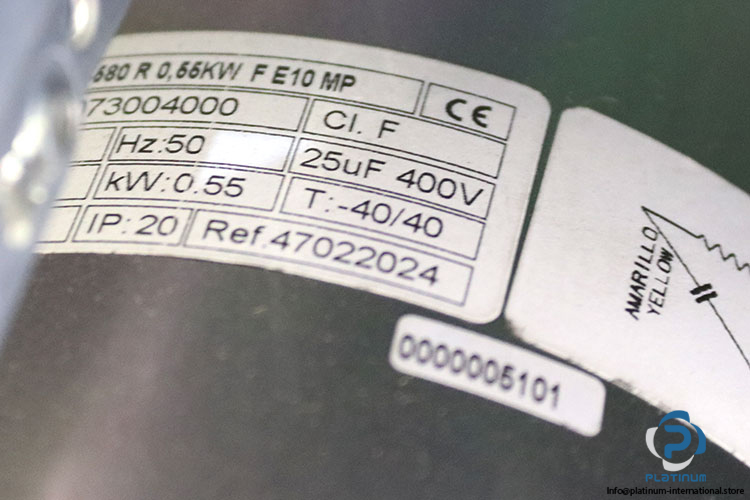

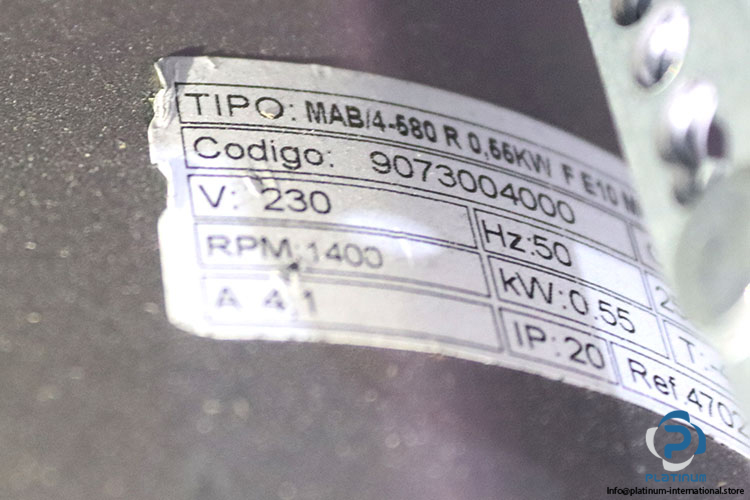

Attachment: MAB/4-580 R 0.55KW F E10 MP Asynchronous Single-Phase Motor
- Model: MAB/4-580 R 0.55KW F E10 MP
- Code: 9073004000
- Reference No.: 47022024
- Voltage (V): 230 V AC
- Frequency (Hz): 50
- Power (kW): 0.55
- Current (A): 4.1
- Speed (rpm): 1400
- Phase: Single Phase
- Capacitor: 25 µF / 400 V AC
- Insulation Class: F
- Protection Class: IP20
- Thermal Class (°C): -40 to +40
- Duty Type: Continuous duty (S1)
- Mounting Type: Built into centrifugal fan housing
- Direction of Rotation: Clockwise
This Dynair centrifugal blower offers exceptional reliability, low maintenance, and steady airflow for continuous industrial operations. Its efficient motor and capacitor combination provide stable performance and extended service life. Perfect for use in air handling systems, machinery cooling, and energy-efficient ventilation setups.
