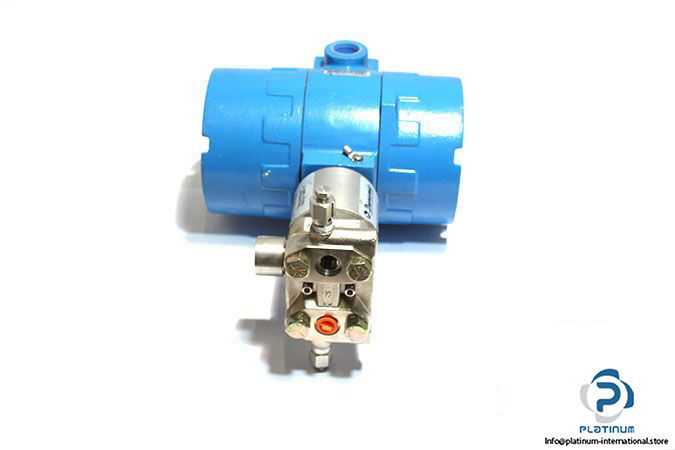

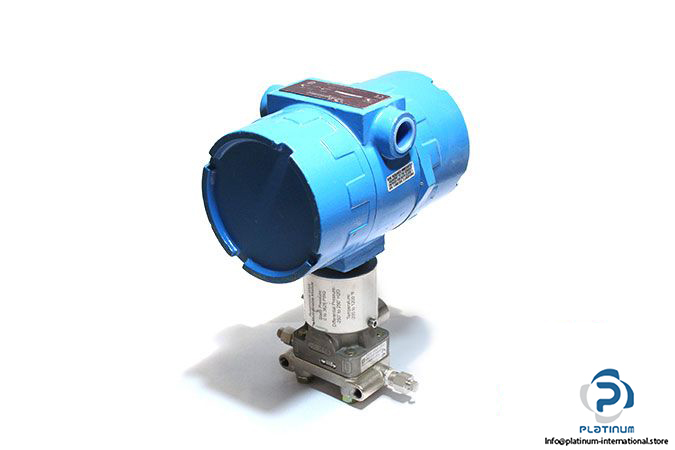

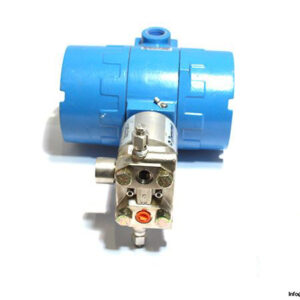

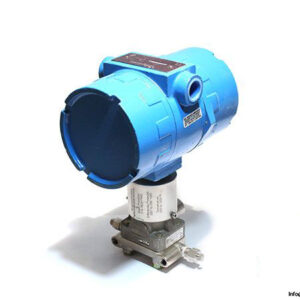

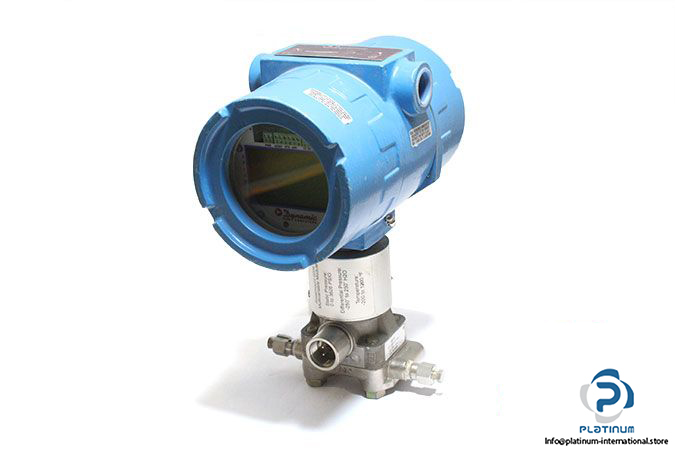

Manufacturer: Dynamic

Type: Pressure Transmitter ‎

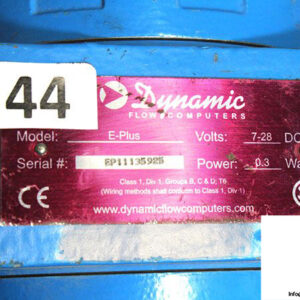

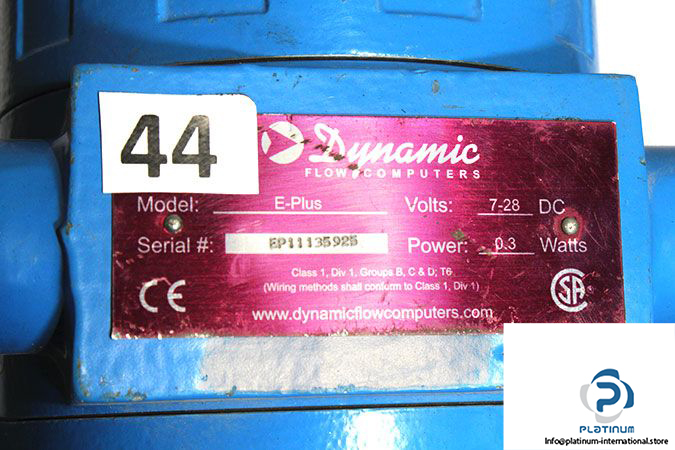

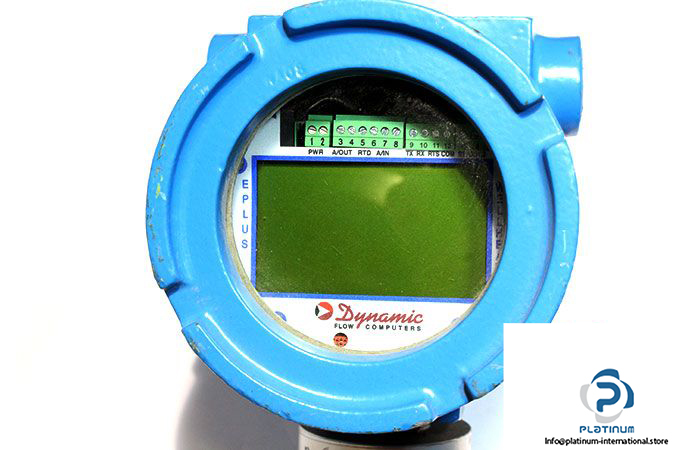

Model: E-PLUS

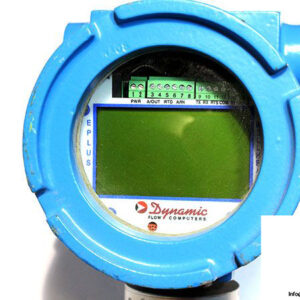

Flow computer calculates all the necessary standard equations (AGA, API, ISO, NIST, etc.) for Liquids & Gases. Monthly, daily, or hourly reports are stored in flash memory.

Applications: used in gas or liquid

Voltage: 7 … 28 V DC

Power consumption: 0.3 W

Temperature: -40 … 85 °C

Accuracy: 0.075 %

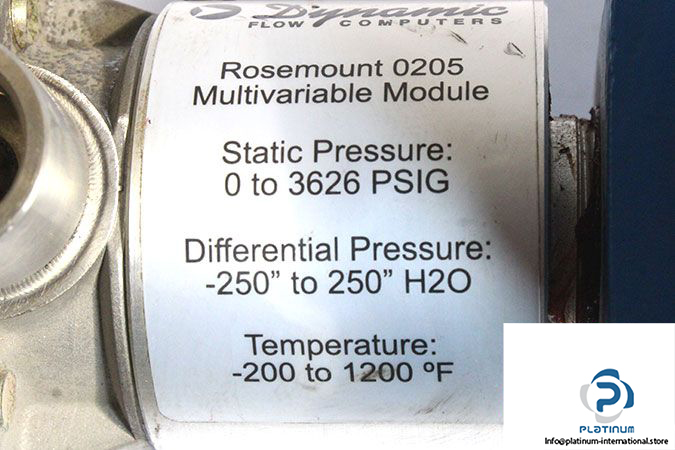

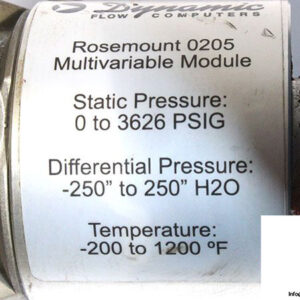

Built-in attachment: Rosemount 205 MULTIVARIABLE SENSOR

Sensor Accuracy: 0205E: 0.100% Accuracy

Sensor Limits; Differential Pressure: : -250 to 250 in H2O (-0.622 to 0.622 bar)

Sensor Limits; Static Pressure: 0 to 3626 PSIG (0 to 25000 kPa)

Isolator Material, Fill Fluid: 316L SST, Silicone

Flange Style, Material: Coplanar, CS

Process Connection: Two ¼”-18 NPT

Weight: 5.5 kg
