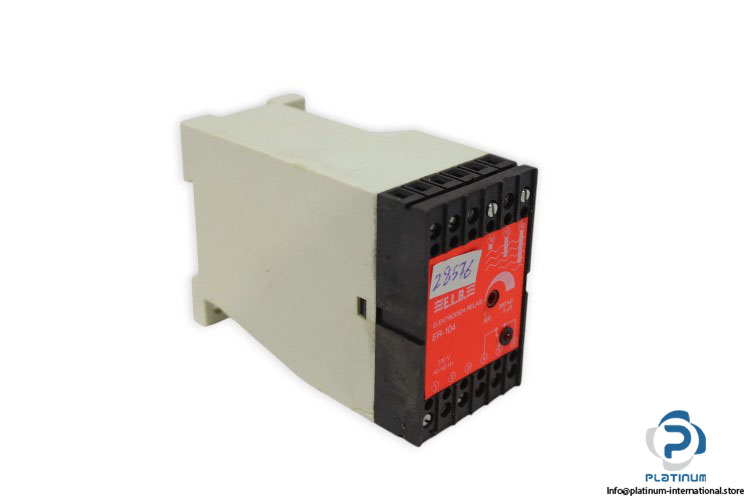

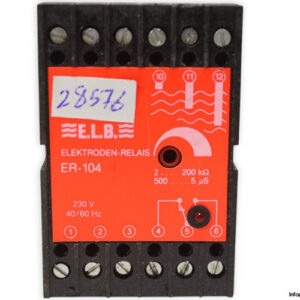

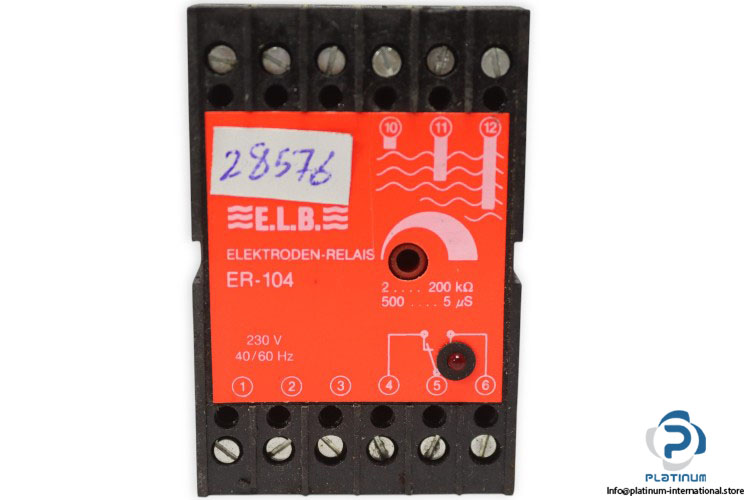

E.L.B ER-104 ELECTRODE RELAY
The ELB ER104 is a high-performance electrode relay engineered for reliable monitoring and control in electrical systems. With wide sensitivity adjustment and robust protection features, it ensures precise operation under varying conditions.
Manufacturer: E.L.B
Type: Electrode Relay
Model: ER-104
Technical Information
- Sensitivity Range: 2 / 200 KOhm
- Supply Voltage: 230 V AC
- Frequency: 40 / 60 Hz
- Power Consumption: 1 W/VA
- Contact: 1 Change-Over (CO)
- Switching Voltage: 250 V AC
- Switching Current: 5 mA
- Switching Delay: 500 / 5 ms
- Protection Class: IP40
- Temperature Range: -20 / 60 °C
