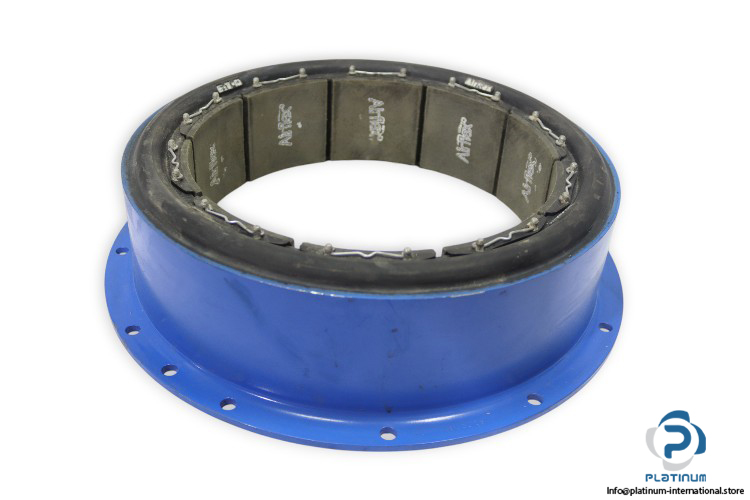

Airflex / Eaton 142197 JB Clutch Brake
The Airflex / Eaton 142197 JB Clutch Brake is a reliable pneumatic, air-actuated drum element designed for heavy-duty industrial applications. Belonging to the CB Series, it delivers high performance with strong torque transmission, durability, and secure braking capability. This unit is built to handle demanding environments with consistent efficiency and safety.
- Manufacturer: Airflex / Eaton
- Type: Clutch Brake
- Part No.: 142197 JB
- Revision: AJ

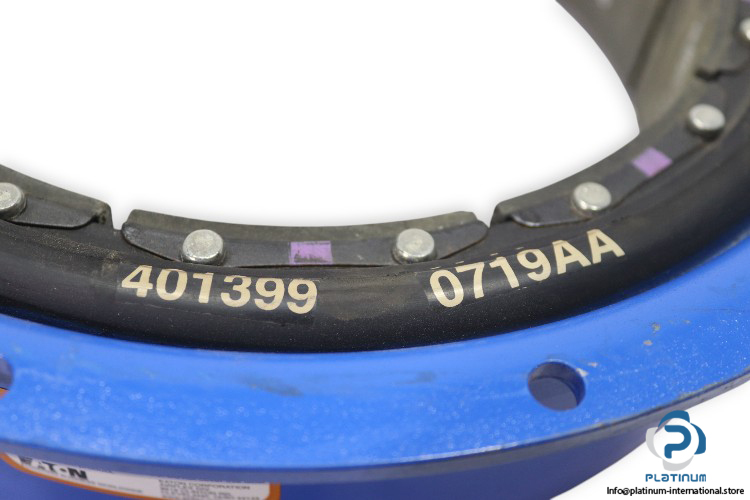

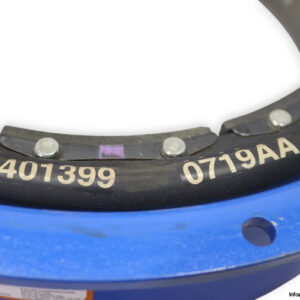

- Code: 401399 / 0719AA
- Series: CB
Technical Information

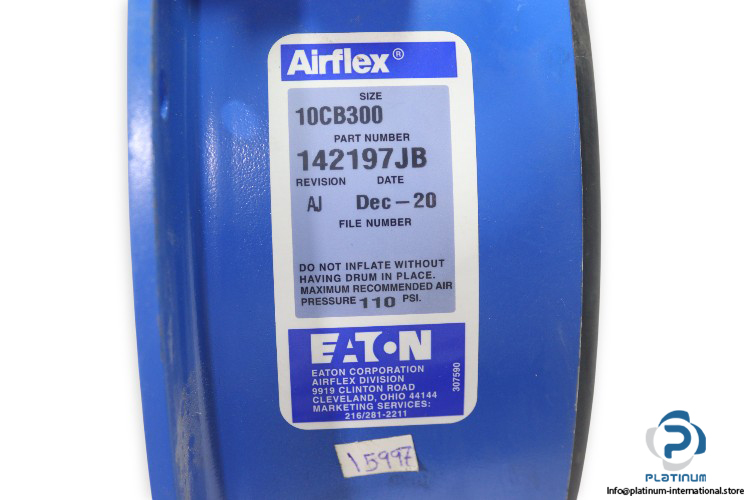

- Size: 10×300 (10CB300)
- Clutch / Brake Type: Pneumatic, Air-Actuated Drum Element
- Maximum Speed: 1800 rpm
- Inertia: 6 pound per square foot
- Maximum Recommended Air Pressure: 110 psi
- Drum Diameter: 251 mm
- Friction Area: 5870 cm²
