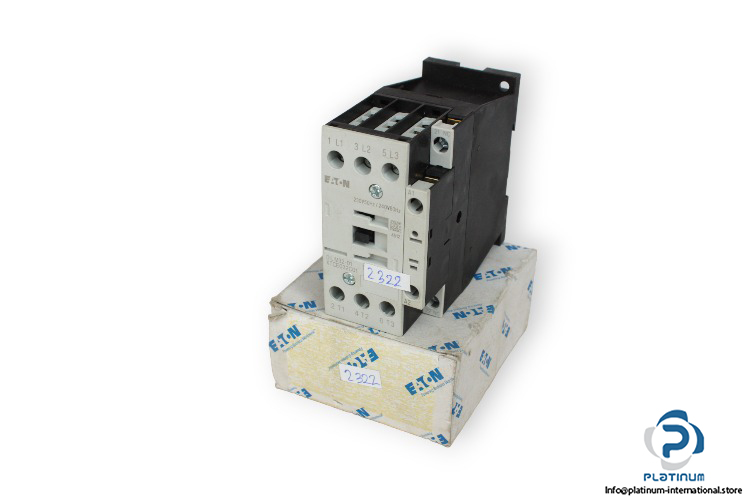

Manufacturer: Eaton

Type: Contactor

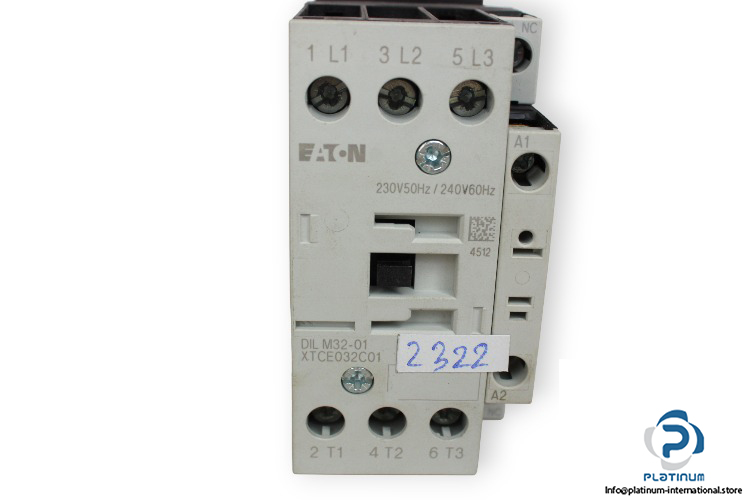

Model: DIL M32-01

Part No: XTCE032C01

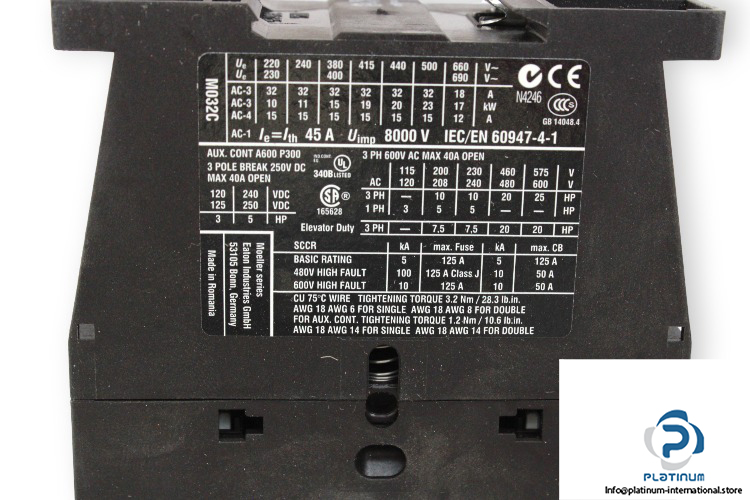

Rated control supply voltage (Us): 230V 50Hz, 240V 60Hz

Rated insulation voltage (Ui): 690 V

Rated impulse withstand voltage (Uimp): 8000 V AC

Resistance per pole: 2.7

Rated operational current (Ie): Ie = Ith = 45 A

Tightening torque: 3.2 Nm, Screw terminals, Main cables

Connection: Screw terminals

Screw size: M3.5 Terminal screw (Control circuit cables), M5 Terminal screw (Main cables)

Number of contacts: 1 Normally closed contact

Operating Temperature: -25 … +60 °C

Protection: Finger and back-of-hand proof, Protection against direct contact when actuated from front (EN 50274)

Degree of protection: IP00

Dimensions: 97 x 85 x 45 mm
