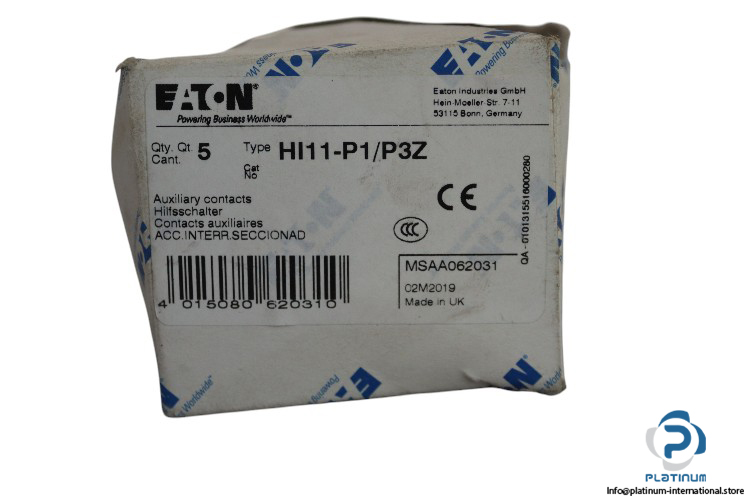

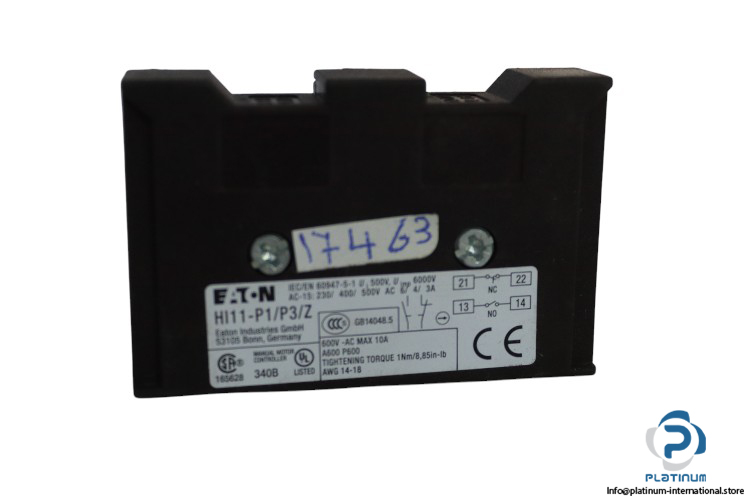

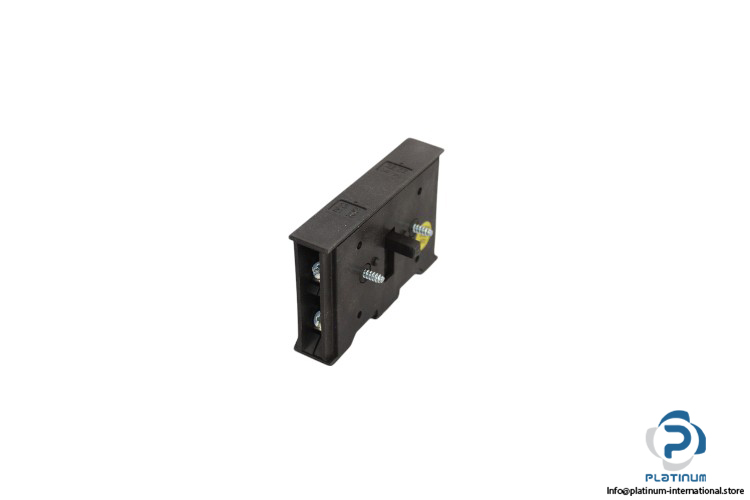

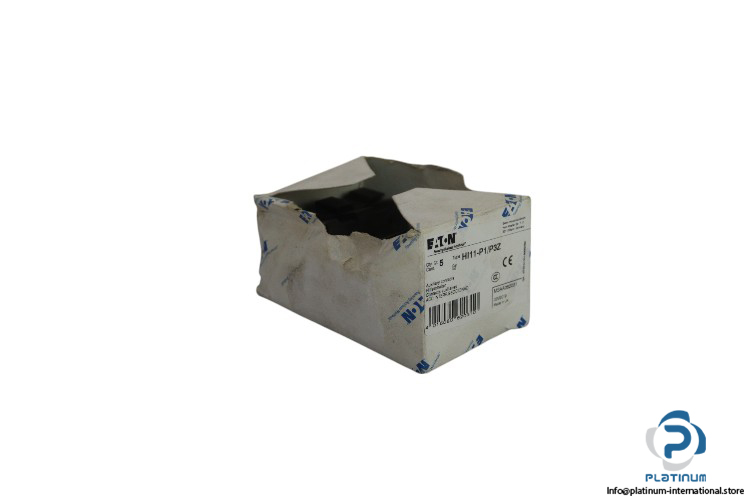

Eaton Auxiliary Contact Module HI11-P1/P3/Z
The Eaton Auxiliary Contact Module HI11-P1/P3/Z is designed for reliable performance in control circuits. It features both normally open and normally closed contacts and is suitable for use in demanding industrial environments with a wide temperature range and robust electrical ratings.
Manufacturer: Eaton
Model: HI11-P1/P3/Z
Technical Specifications
- Rated Insulation Voltage (Ui): 500V AC
- Rated Operational Current AC-15 with 230 V: 6 A
- Rated Operational Current DC-13 with 125 V: 1.1 A
- Rated Operational Current DC-13 with 250 V: 0.55 A
- Rated Uninterrupted Current (Iu): 10 A
- Type of Electric Connection: Screw connection
- Mounting Method: Side mounting
- Contacts: 1 NO Normally open + 1 NC Normally closed
- Stripping Length: 7.5 mm
- Tightening Torque: 1 Nm
- Operating Ambient Temperature: -25 to 50 °C
