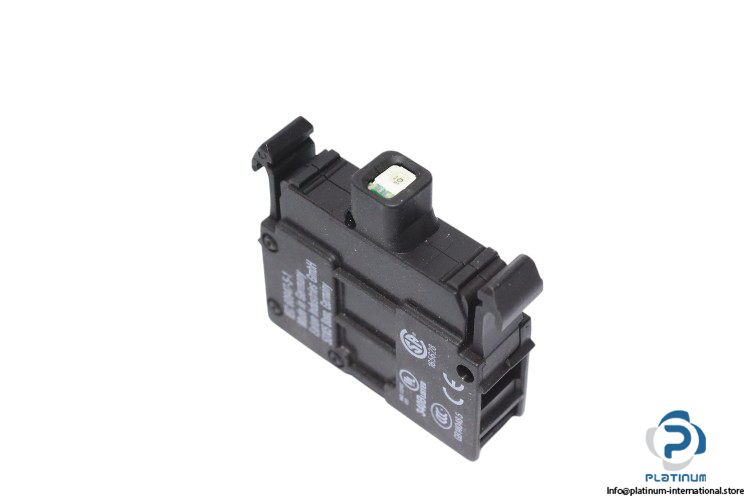

Eaton LED Element M22-LED-G

The Eaton LED Element M22-LED-G is designed to offer reliable visual signaling in industrial applications. With a wide operational voltage range of 12 – 30 V AC/DC and low power consumption of 0.26 W, this LED element ensures high visibility and low energy usage. Featuring front fixing and screw terminal connections, it provides flexibility and ease of installation. Its degree of protection of IP20 makes it suitable for various industrial environments, with an ambient temperature range of -25 to 70°C.

Manufacturer: Eaton

Type: LED Element

Model: M22-LED-G

Technical Information:

• Rated Operational Voltage (Ue): 12 – 30 V AC/DC, 50/60 Hz
• Rated Operational Current (Ie): 5 – 14 mA
• Power Consumption (Pmax.): 0.26 W
• Connection Technique: Screw terminals
• Degree of Protection: IP20
• Ambient Temperature: -25 to 70°C

This Eaton LED Element M22-LED-G is perfect for various industrial signaling applications, providing both energy efficiency and high performance in harsh environments.
