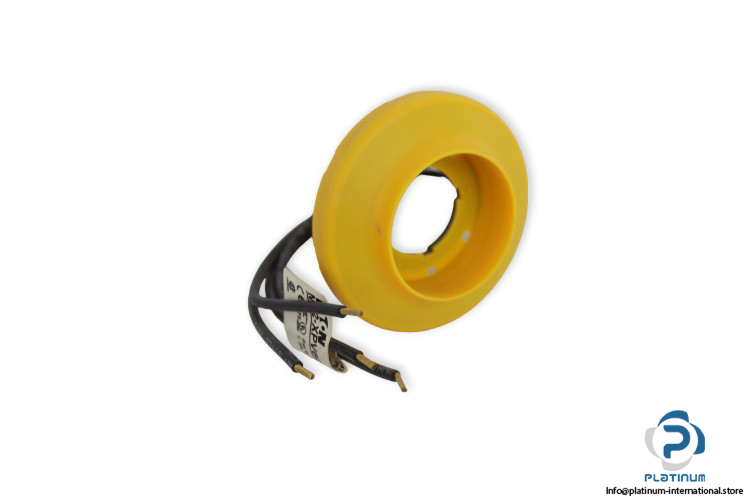

Eaton M22XPV60Y24 “ Illuminated Emergency Stop Operator Ring / LED Luminous Ring

The Eaton M22XPV60Y24 illuminated emergency stop operator ring provides high visibility and reliable operation in safety-critical environments. With its LED luminous design and IP66 protection class, it ensures durability and visibility under challenging conditions.

• Manufacturer: Eaton
• Type: Illuminated Emergency Stop Operator Ring / LED Luminous Ring
• Model: M22XPV60Y24
• Alternative Model: M22XPV60Y24Q
• Series: M22

Technical Information:

• Size: 22.5 mm
• Rated Voltage: 24 V AC/DC
• Actuator Diameter: 60 mm
• Length/Depth: 25 mm
• Height: 60 mm
• Width: 60 mm
• Protection Class: IP66
• Ambient Temperature: -25 to 70 °C
• Material: Plastic
• Standard: IEC 60947-5-1
