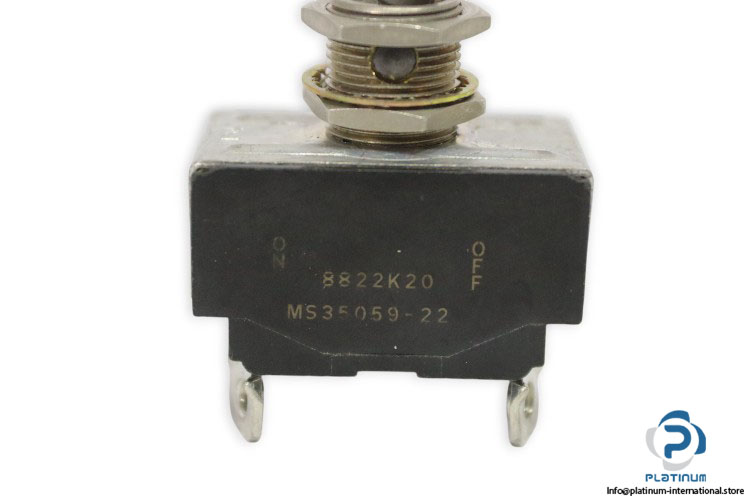

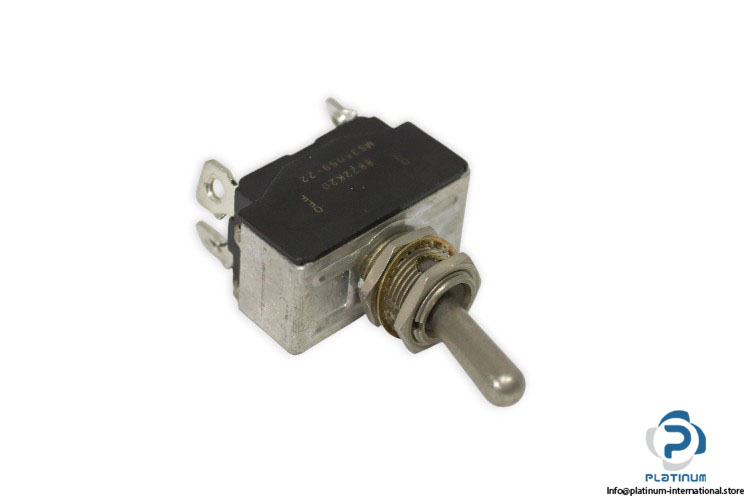

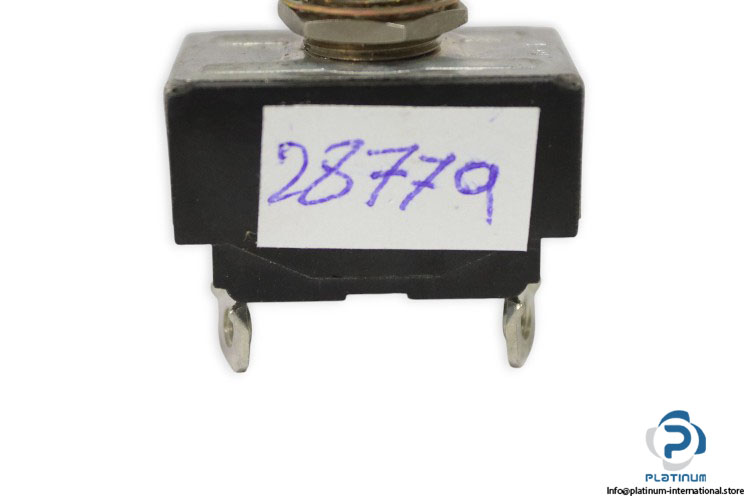

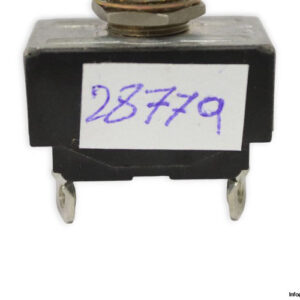

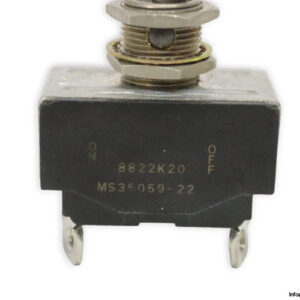

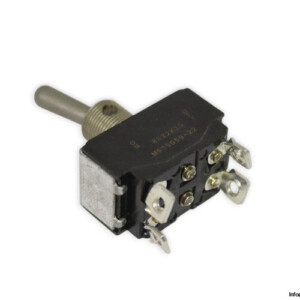

EATON MS35059-22 TOGGLE SWITCH

The Eaton MS3505922 is a durable toggle switch designed for reliable performance in industrial and electrical systems. It is engineered to operate under demanding conditions with consistent functionality and long service life.

Manufacturer: EATON
Type: Toggle Switch
Model: MS35059-22
Part No.: 8822K20

Technical Information

• Supply Voltage: 115 V AC
• Rated Current: 7 / 20 A
• Frequency: 60 / 400 Hz
• Operation Type: Maintained
• Poles No.: 2
• Contact: 2PST
• Lever Length: 17.45 mm
• Bushing Length: 11.89 mm
• Positions Method: ON / NONE / OFF
• Temperature Range: -17.8 / 65.6 °C
• Dimensions: 26.9 x 33.27 x 19 mm
