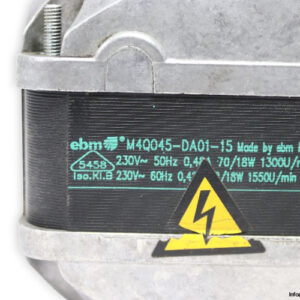

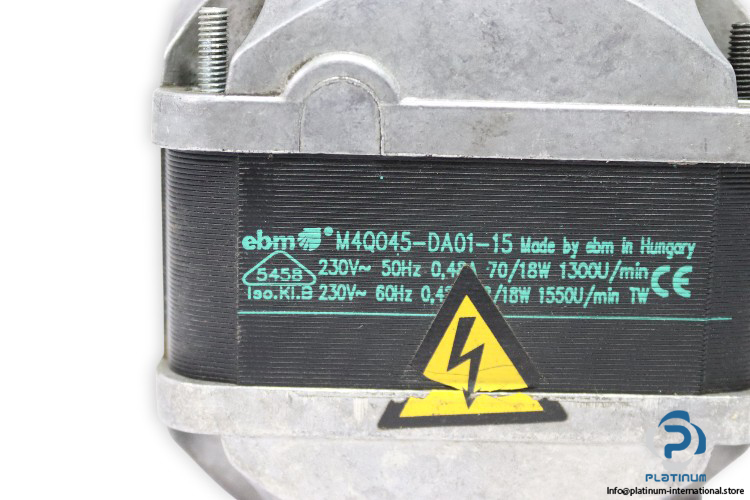

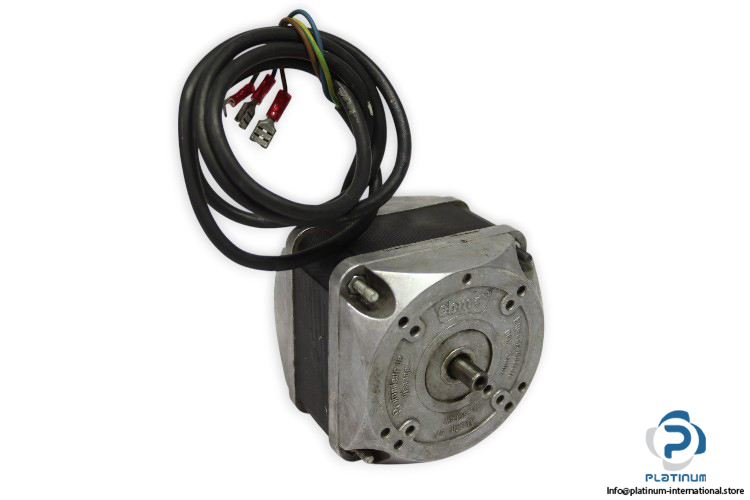

EBM M4Q045-DA01-15 FAN MOTOR

EBM™s M4Q045-DA01-15 fan motor is designed for efficiency, durability, and quiet operation in industrial ventilation systems. With a compact form, variable speeds, and IP42 protection, it™s ideal for demanding air movement applications requiring reliability across diverse conditions.

Manufacturer: EBM
Type: Fan Motor
Model: M4Q045-DA01-15

Technical Information

• Voltages (V AC): 230
• Power Rating (W): 70/18, 62/18
• Speed (rpm): 1300/1550
• Current (A): 0.48/0.42
• Frequency (Hz): 50/60
• Number of Wires: 3
• Temperature Range (°C): -30 to 40
• Type of Protection: IP 42
• Insulation Class: B
• Direction of Rotation: Counter-clockwise, seen on shaft
• Connection Leads: Jacketed cable 3 x 0.5 mm² with brass lead tips
