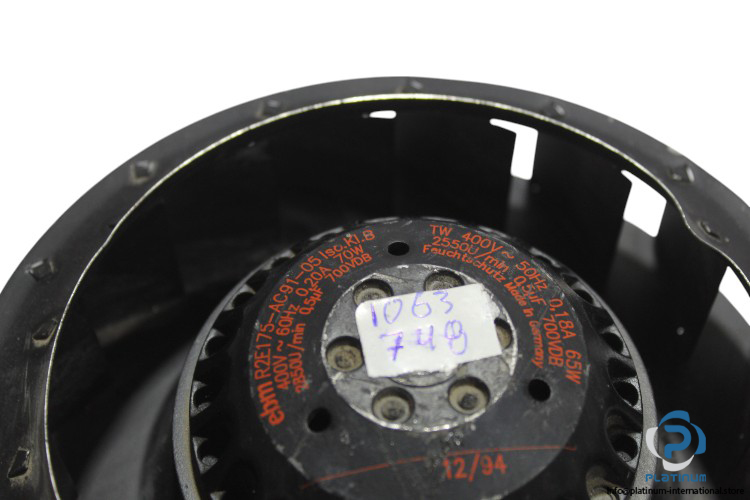

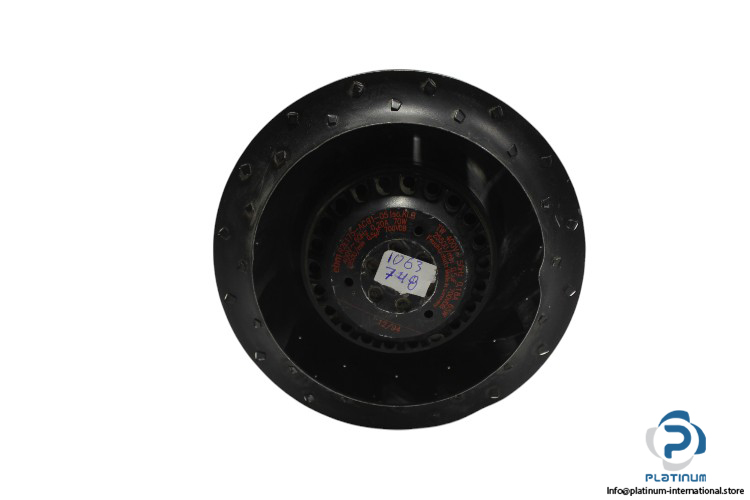

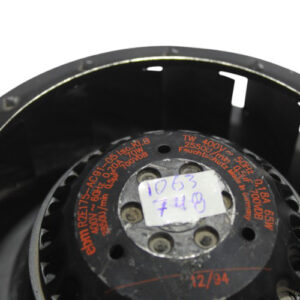

Ebmpapst R2E175-AC91-05 Centrifugal Fan

The Ebmpapst R2E175-AC91-05 Centrifugal Fan is designed for optimal airflow in industrial systems. With a 400V voltage, 16 blades, and a ball bearing design, it provides powerful and efficient air circulation for demanding applications.

Manufacturer: Ebmpapst

Model: R2E175-AC91-05

Type: Centrifugal Fan

Technical Information:

• Frame Shape: Circular Frame
• No. of Blades: 16
• Dimensions (mm): 175 x 48
• Direction: Push
• Voltages (V): 400
• Power Rating (W): 65/70
• Speed (rpm): 2550/2850
• Current (A): 0.18/0.2
• Frequency: 50/60 Hz
• Inverter: Without Inverter
• Number of Wires: 4
• Bearing: Ball Bearing
• Blade Material / Fan Housing Material: Metal
• Capacity: 0.5 micro-farad
• Capacitor Voltage: 700 VDB
• Class: B
