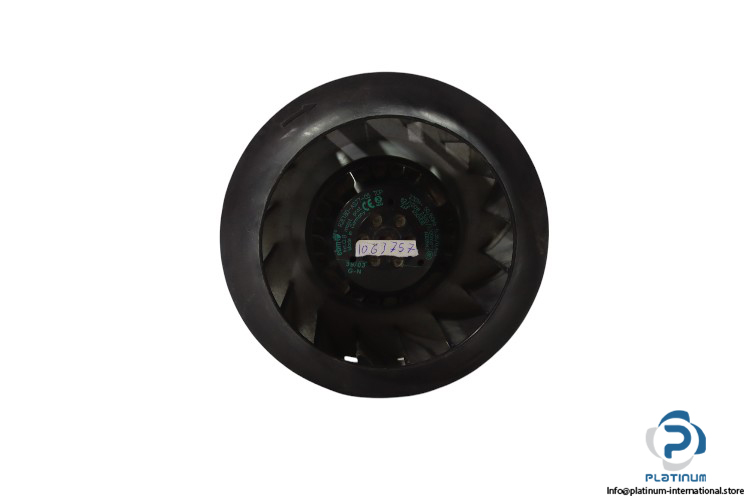

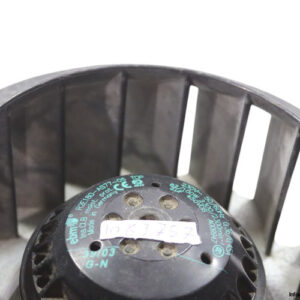

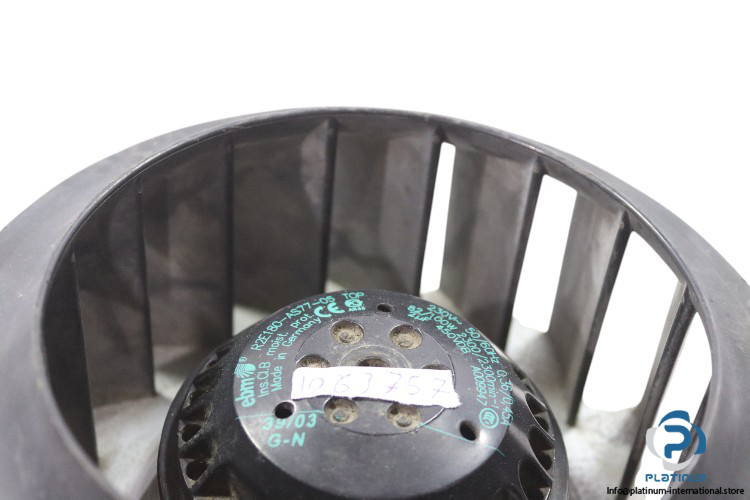

Ebmpapst R2E180-AS77-05 Centrifugal Fan

The Ebmpapst R2E180-AS77-05 Centrifugal Fan is designed for efficient air movement in a variety of industrial applications. It offers high performance with low power consumption, making it ideal for demanding ventilation and cooling tasks.

Manufacturer: Ebmpapst

Model: R2E180-AS77-05

Type: Centrifugal Fan

Part No.: A009947

Technical Information:

• Frame Shape: Circular Frame
• No. of Blades: 16
• Dimensions (mm): 180×78
• Direction: Push
• Voltages (V AC): 230
• Power Rating (W): 82/100
• Speed (rpm): 2300
• Current (A): 0.36/0.45
• Frequency: 50/60 Hz
• Inverter: Without Inverter
• Number of Wires: 4
• Bearing: Ball bearing
• Blade Material / Fan Housing Material: Plastic
• Class: B
• Capacitance: 2 micro-farad, 450 VDB
