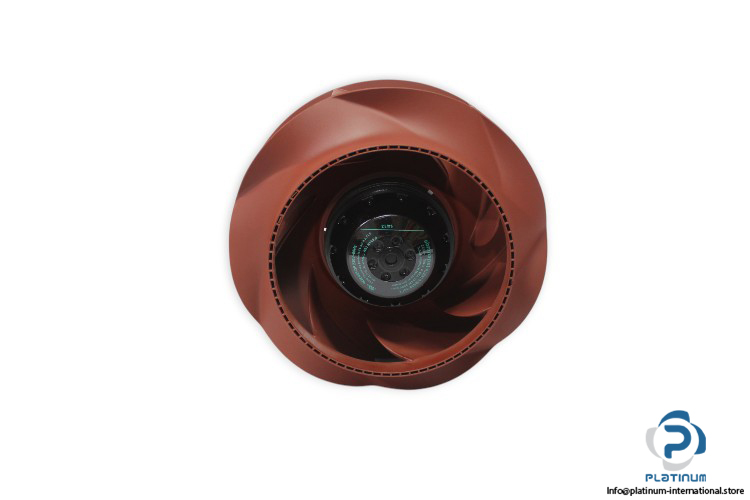

Ebmpapst R2E225-RA92-10 Centrifugal Fan
The Ebmpapst R2E225-RA92-10 is a high-performance centrifugal fan built with durable components and advanced design for industrial cooling and ventilation systems. Featuring reliable airflow, efficient performance, and long service life, it is an ideal choice for demanding environments.
Manufacturer: Ebmpapst
Type: Centrifugal Fan
Model: R2E225-RA92-10

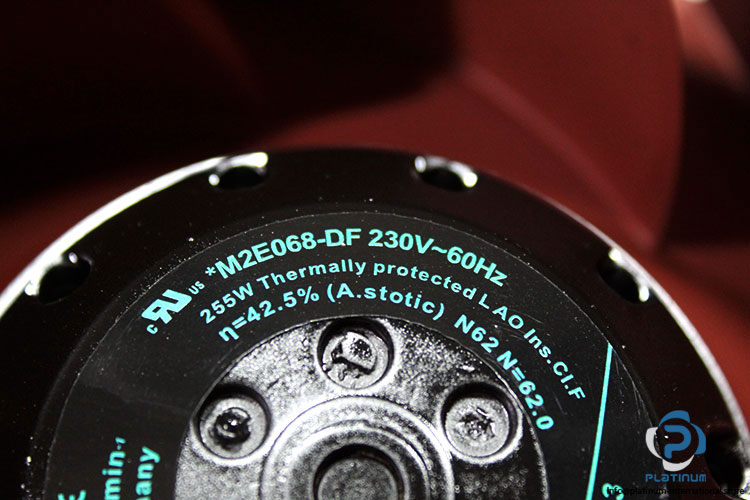

Motor: M2E068-DF
Technical information
- Frame Shape: Circular Frame
- No. of Blades: 7

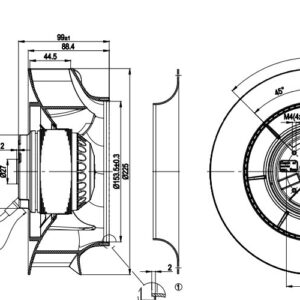

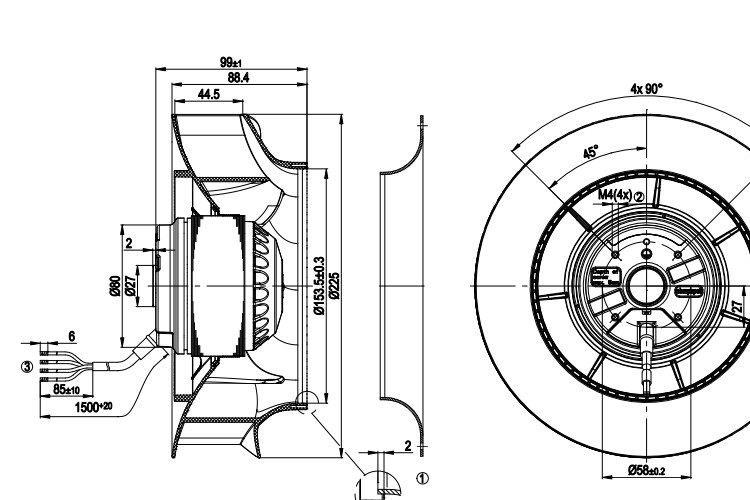

- Dimensions: 225 × 89 mm
- Direction: Push
- Bearing: Ball
- Voltage: 230 V
- Power Rating: 155 / 255 W
- Speed: 2500 rpm
- Current: 0.68 A
- Frequency: 50 / 60 Hz
- Flow Rate: 950 m³/h, 559.14 CFM
- Inverter: Without Inverter

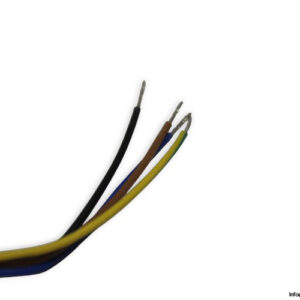

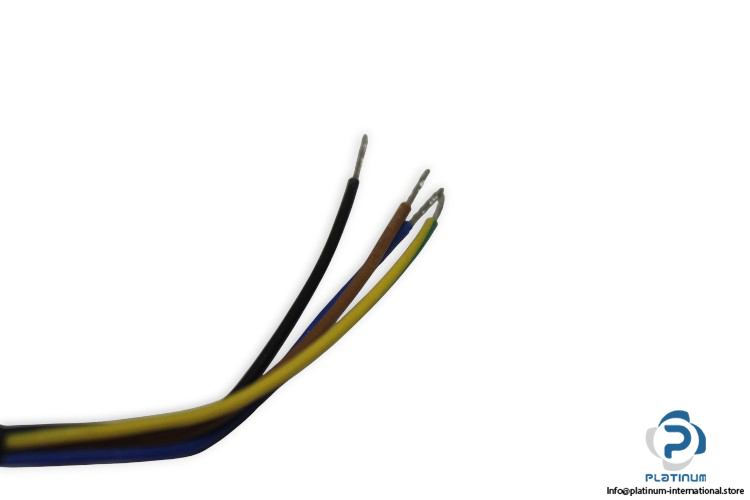

- Number of Wires: 4
- Blade / Housing Material: Plastic
- Class: F
- Capacity: 3.5 micro-farad, 450 VDB
- Efficiency (η): 42.5% (A, static)
- Efficiency Grade: N62 (N=62)
