Manufacturer: ebm-papst
Type: Axial Fan
Model: 3314
Frame Shape: Square Frame
No. of Blades: 5

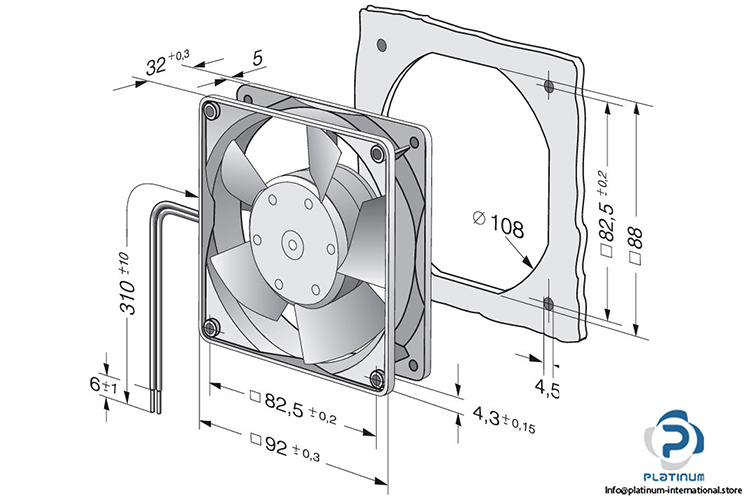

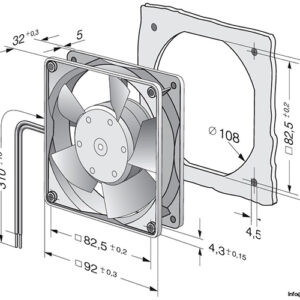

Dimensions (mm): 92x92x32
Direction: Push
Bearing: Ball Bearing
Voltages (V DC): 24(12-28)
Power Rating (W): 2.4
Speed (rpm): 3000
Flow Rate (m3/h): 80
Flow Rate (CFM): 47.33727811
Current (A): 0.1
Inverter: without Inverter
Number of Wires: 2
Blade material / Fan housing material: Plastic / Plastic
Industrial Fans

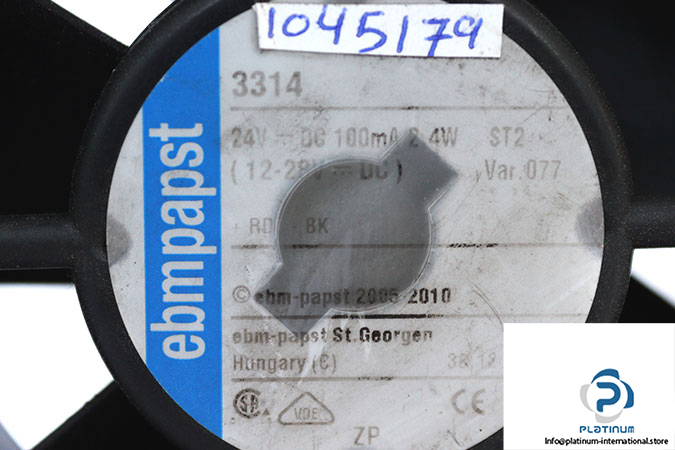

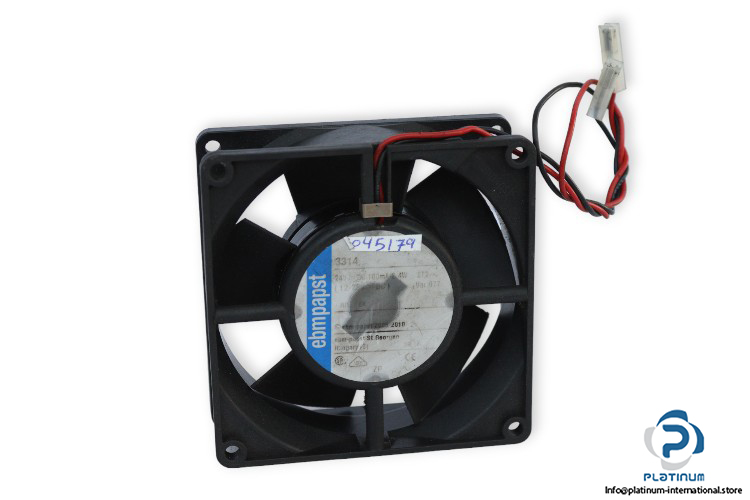

EBMPAPST 3314 AXIAL FAN
Manufacturer: ebm-papst
Type: Axial Fan
Model: 3314
✔
In stock: 12 pcs
Good availability
Ready to ship from our warehouse.
| Weight | 0,19 kg |
|---|---|
| Condition | |
| No. of Wires | |
| Manufacturer | |
| Type of Product | |
| Frame Shape | |
| No. of Blades | |
| Voltage Type | |
| Inverter | |
| Blade Material | |
| Fan Housing Material | |
| Direction | |
| Bearing | |
| Voltage [V] | |
| Dimensions [mm] | |
| Power [kW] | |
| Shelf No. | |
| Speed [RPM] | |
| Current [A] | |
| Model | |
| Flow Rate [m3/h] | |
| Flow Rate CFM |
