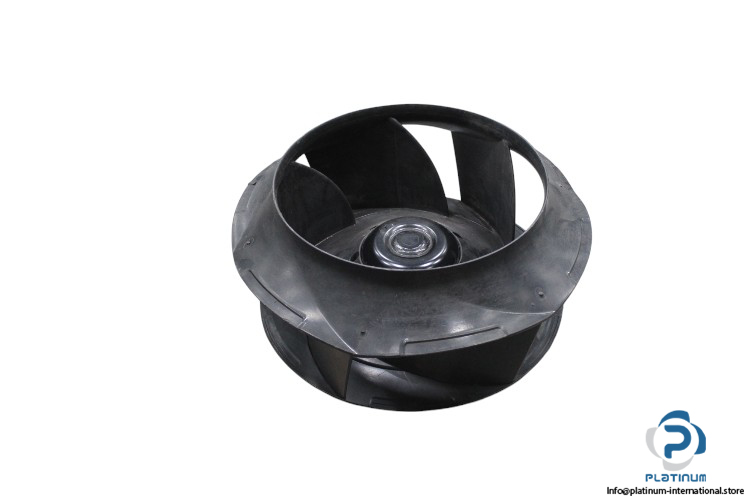

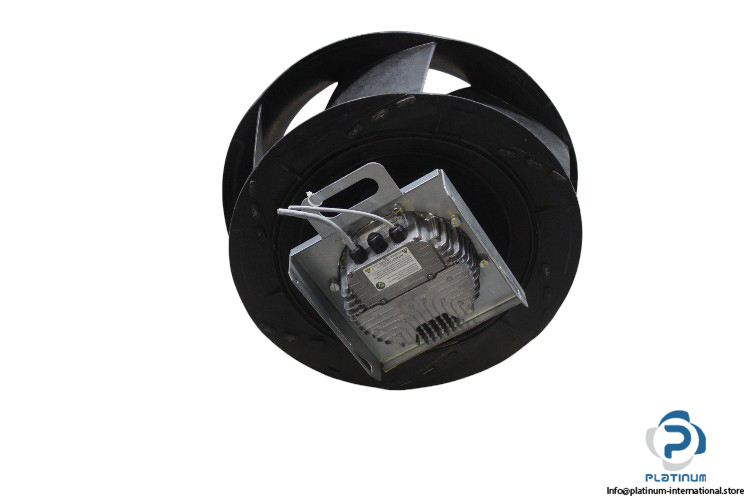

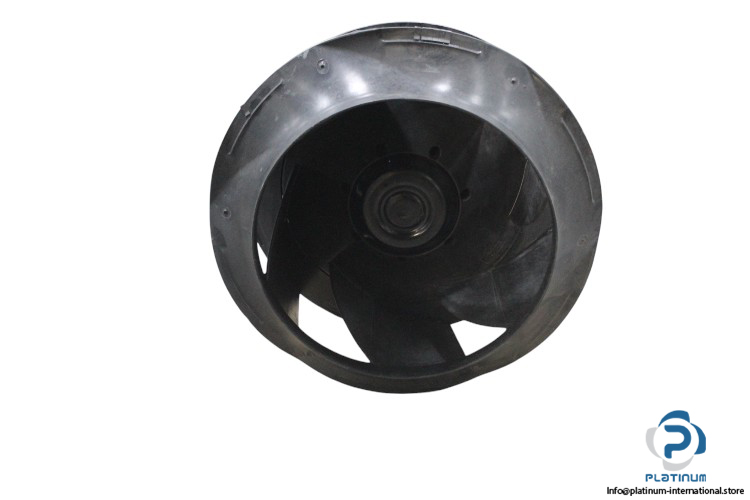

EBMPAPST 381857 Centrifugal Fan

The EBMPAPST 381857 Centrifugal Fan is a high-performance industrial fan designed for efficient airflow and reliable operation. With a circular frame and six durable plastic blades, it delivers powerful ventilation while maintaining energy efficiency. Built for industrial applications, this fan operates at a nominal voltage of 380-480V with a rated speed of 1300 RPM, ensuring optimal performance under demanding conditions.

• Manufacturer: EBMPAPST
• Type: Centrifugal Fan
• Part No: 381857

Technical Specifications

• Number of Blades: 6
• Frame Shape: Circular Frame
• Outer Diameter: 630 mm
• Fan Type: Centrifugal Fan
• Blade Material / Fan Housing Material: Plastic
• Frequency: 50/60 Hz
• Nominal Voltage [VAC]: 380 – 480
• Rated Speed [RPM]: 1300
• Power at 400V [kW]: 2.7
• Current at 400V [A]: 4.3
• Protection Class: IP54
• Efficiency Category: Static
• Overall Efficiency [%]: 65.7
