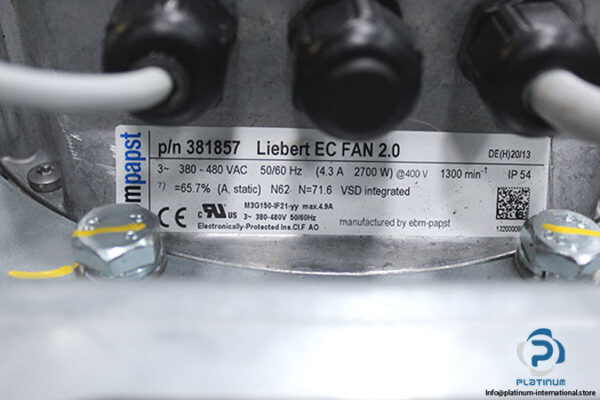

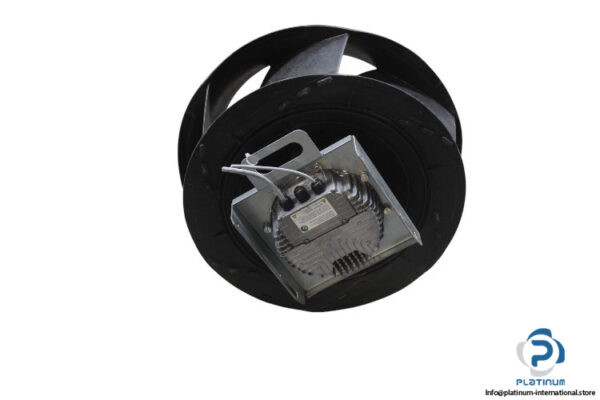

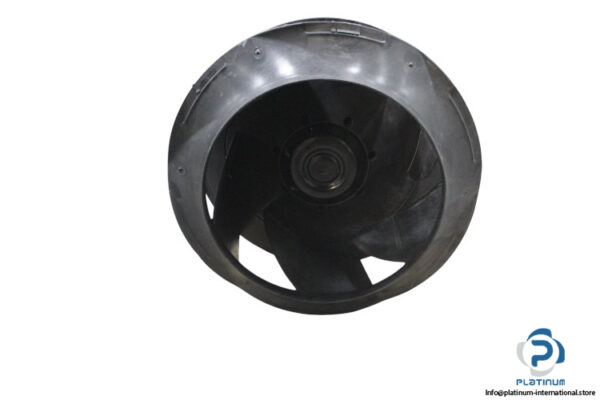

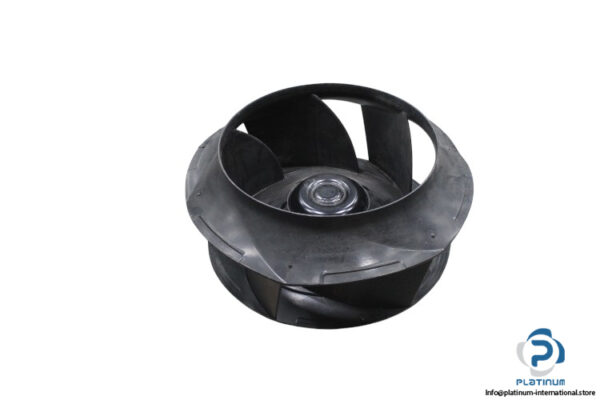

EBMPAPST 381857 Centrifugal Fan
The EBMPAPST 381857 Centrifugal Fan is a high-performance industrial fan designed for efficient airflow and reliable operation. With a circular frame and six durable plastic blades, it delivers powerful ventilation while maintaining energy efficiency. Built for industrial applications, this fan operates at a nominal voltage of 380-480V with a rated speed of 1300 RPM, ensuring optimal performance under demanding conditions.
- Manufacturer: EBMPAPST
- Type: Centrifugal Fan
- Part No: 381857
Technical Specifications
- Number of Blades: 6
- Frame Shape: Circular Frame
- Outer Diameter: 630 mm
- Fan Type: Centrifugal Fan
- Blade Material / Fan Housing Material: Plastic
- Frequency: 50/60 Hz
- Nominal Voltage [VAC]: 380 – 480
- Rated Speed [RPM]: 1300
- Power at 400V [kW]: 2.7
- Current at 400V [A]: 4.3
- Protection Class: IP54
- Efficiency Category: Static
- Overall Efficiency [%]: 65.7
