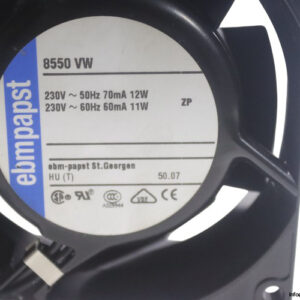

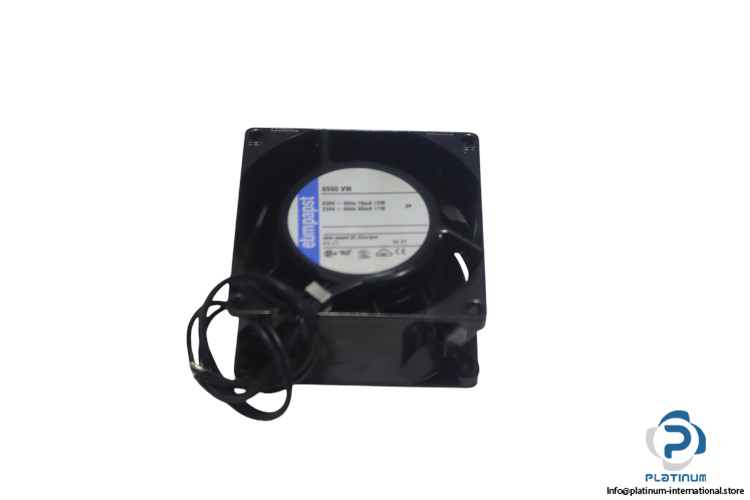

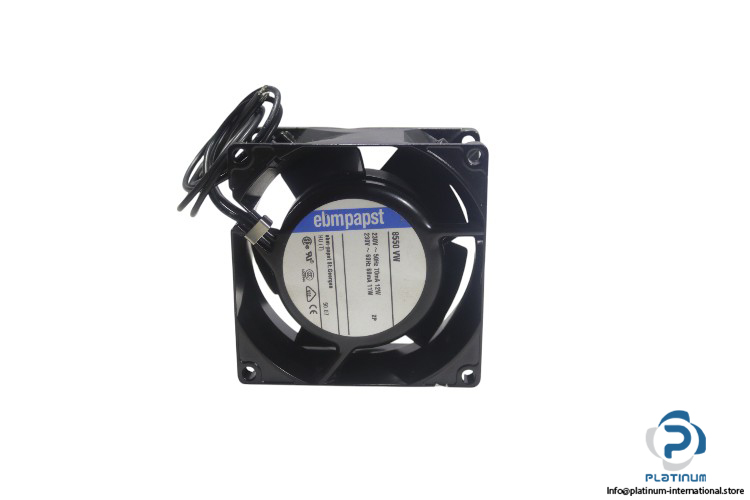

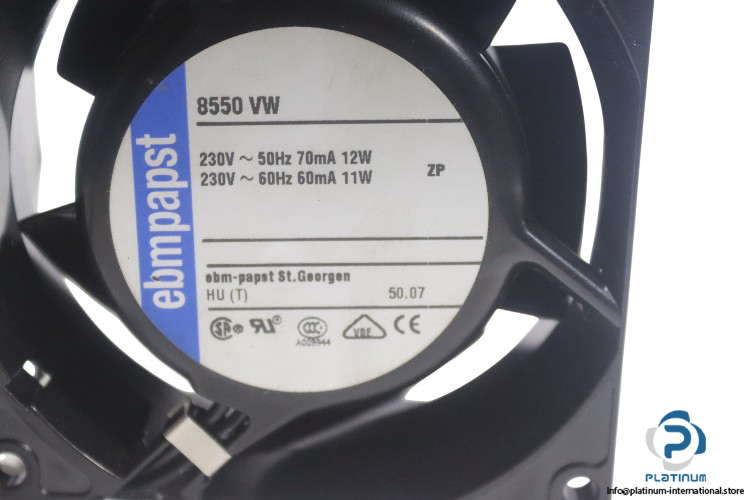

Ebmpapst 8550 VW Axial Fan
The Ebmpapst 8550 VW Axial Fan is designed for efficient airflow in various industrial applications. With a square frame and durable metal construction, this fan ensures smooth operation across a wide range of conditions.
Manufacturer: Ebmpapst
Model: 8550 VW
Type: Axial Fan
Technical Information:
- Frame Shape: Square frame
- No. of Blades: 5
- Direction: Pull
- Bearing: Sleeve bearing
- Nominal Voltage [V]: 230
- Rated Current [mA]: 70 / 60
- Speed: 2700/3200 min-1
- Power Consumption [W]: 0.012 / 0.011
- Min. Ambient Temperature [°C]: -10
- Max. Ambient Temperature [°C]: 75
- Flow Rate [m3/h]: 43/51
- Frequency: 50 / 60 Hz
- No. of Wires: 2
- Sound Power Level [B]: 4.7
- Sound Pressure Level [dB(A)]: 30
- Dimensions [mm]: 80 x 80 x 38
- Blade Material / Fan Housing Material: Metal
- Inverter: Without
