Manufacturer: ebm-papst
Type: Axial Fan
Model: DV6224
Frame Shape: Circular Frame
No. of Blades: 5

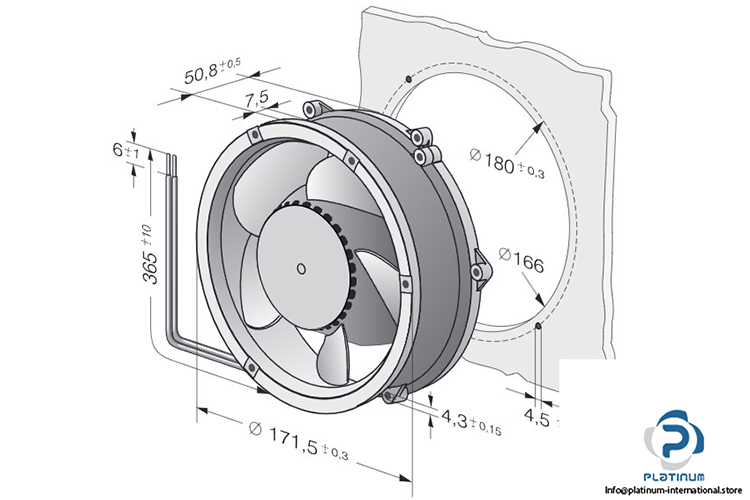

Dimensions (mm): 171.5×51
Direction: Push
Bearing: Ball Bearing
Voltages (V DC): 24(9-29)
Power Rating (W): 41
Speed (rpm): 4300
Flow Rate (m3/h): 540
Flow Rate (CFM): 319.5266272
Current (A): 1.7
Inverter: without Inverter
Number of Wires: 4
Blade material / Fan housing material: Plastic / Metal
Used
Manufacturer: Ebmpapst
Industrial FansEBMPAPST DV 6224 AXIAL FAN
Manufacturer: ebm-papst
Type: Axial Fan
Model: DV6224
✔
In stock: 149 pcs
Good availability
Ready to ship from our warehouse.
| Weight | 0,85 kg |
|---|---|
| Condition | |
| No. of Wires | |
| Manufacturer | |
| Type of Product | |
| No. of Blades | |
| Voltage Type | |
| Inverter | |
| Blade Material | |
| Fan Housing Material | |
| Direction | |
| Bearing | |
| Frame Shape | |
| Voltage [V] | |
| Shelf No. | |
| Speed [RPM] | |
| Model | |
| Dimensions [mm] | |
| Power [kW] | |
| Flow Rate [m3/h] | |
| Flow Rate CFM | |
| Current [A] |
