Manufacturer: Ebm-Papst

Type: Centrifugal Fans

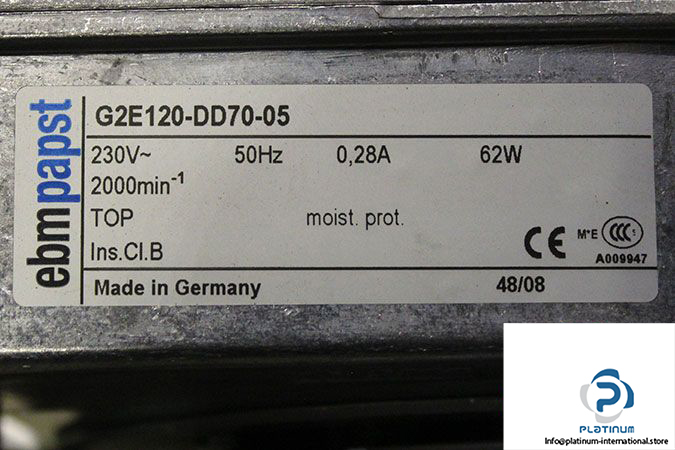

Model: G2E120-DD70-05

Phase [PH]: 1~

Impeller Material: Sheet Steel, Galvanized

Housing Material: Die-Cast Aluminum

Motor Type: M2E052-CA

Nominal Voltage [V]: 230

Current Draw [A]: 0.28

Power Consumption [W]: 62

Speed [min^-1]: 2000

Frequency [Hz]: 50

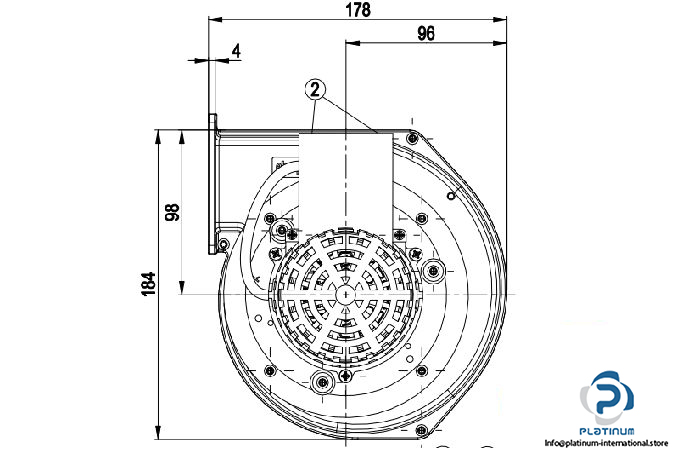

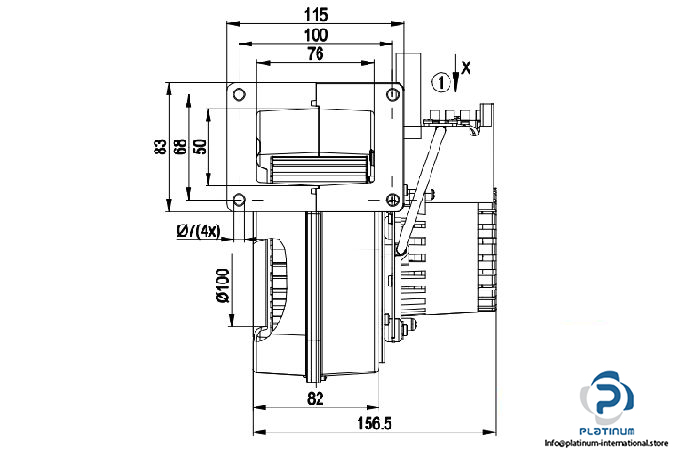

Dimensions (Cut Out) [mm]: 76×50

Capacitor [µF]: 2

Capacitor Voltage [VDB]: 400

Min. Ambient Temperature [°C]: -25

Max. Ambient Temperature [°C]: 40

Duty: S1

Insulation Class: B

Weight [kg]: 1.8
