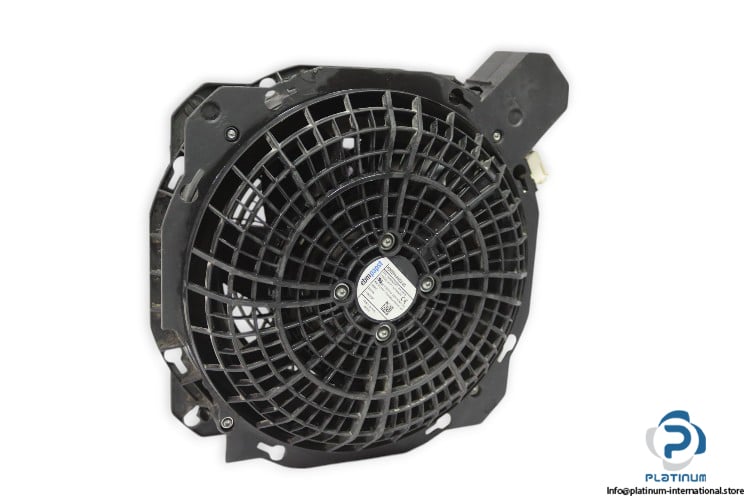

EBMPAPST K2E200-AH20-05 AXIAL FAN
The Ebmpapst K2E200-AH20-05 axial fan is designed for powerful air movement in industrial and electronic cooling systems. Built with high-efficiency ball bearings and durable plastic components, it delivers consistent performance under varying electrical and environmental conditions.
Manufacturer: Ebmpapst
Type: Axial Fan
Model: K2E200-AH20-05
Motor: M2E068-CF

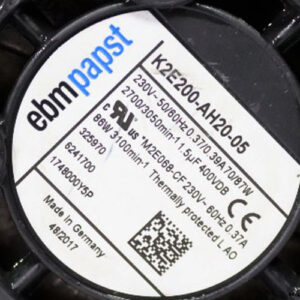

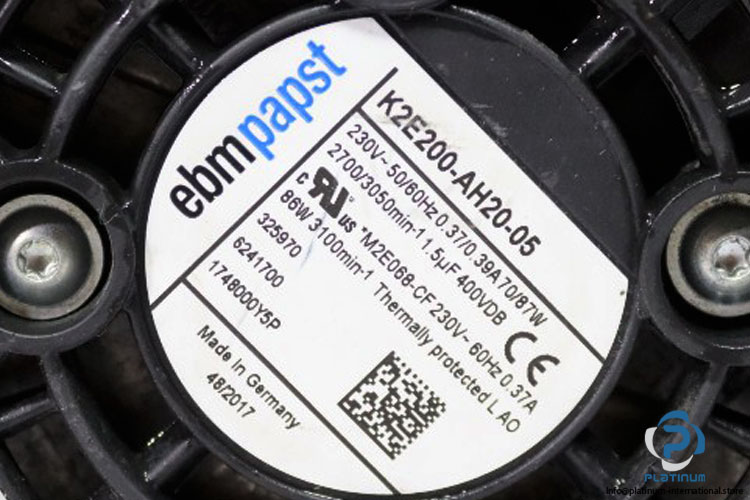

Part No.: 325970 / 6241700 / 1748000Y5P
Technical Information
- No. of Blades: 7
- Dimensions (mm): 260 x 106
- Direction: Push
- Bearing: Ball Bearing
- Voltages (V): 230
- Power Rating (W): 70 / 87
- Speed (rpm): 2700 / 3050
- Current (A): 0.37 / 0.39
- Frequency: 50 / 60 Hz
- Inverter: Without Inverter
- Number of Wires: 3
- Blade / Housing Material: Plastic
- Capacitor: 1.5 μF
- Voltage Capacity: 400 VDB
- Motor Current / Power / Speed: 0.37 A / 86 W / 3100 rpm
- Temperature Range: -30 to 55°C
- Max. Back Pressure (Pa): 115 / 150
