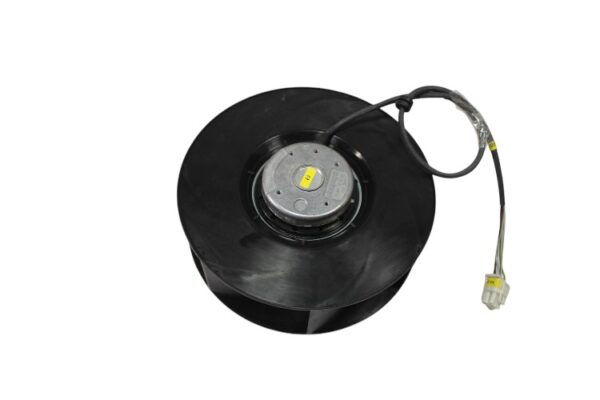

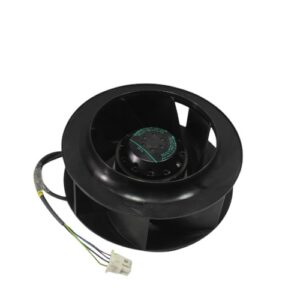

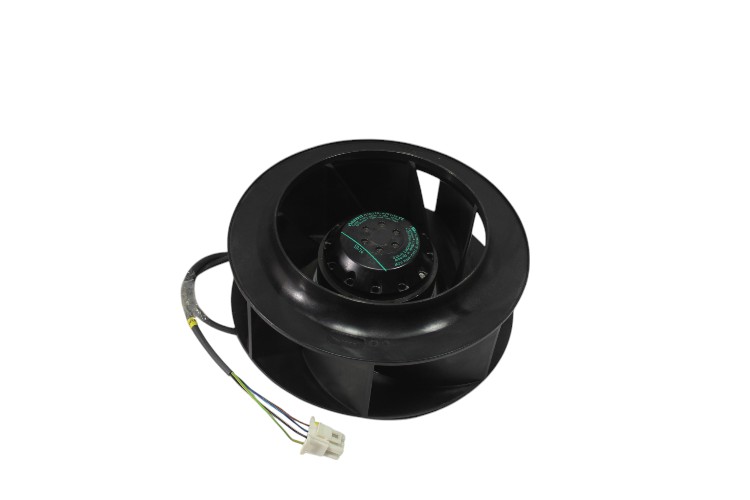

EBM-PAPST R2D225-AV02-12 Centrifugal Fan
The EBM-PAPST R2D225-AV02-12 Centrifugal Fan is a high-performance cooling solution designed for industrial applications requiring efficient airflow and durability. Featuring a circular frame, ball bearing construction, and seven-blade design, this fan delivers reliable performance with minimal maintenance. It supports dual-frequency operation, ensuring adaptability to various power supply conditions.
- Manufacturer: EBM-PAPST
- Type: Centrifugal Fan
- Model: R2D225-AV02-12
Technical Specifications
- Size: 225 mm
- Insulation Class: B
- Number of Blades: 7
- Frame Shape: Circular Frame
- Bearing Type: Ball Bearing
- Airflow Direction: Push
- Number of Wires: 6
Performance at 50 Hz
- Nominal Voltage: 400 “ 415 V (Star Connection)
- Current: 0.26 A
- Input Power: 120 W
- Speed: 2700 rpm
Performance at 60 Hz
- Nominal Voltage: 415 V (Star Connection)
- Current: 0.26 A
- Input Power: 165 W
- Speed: 3000 rpm
